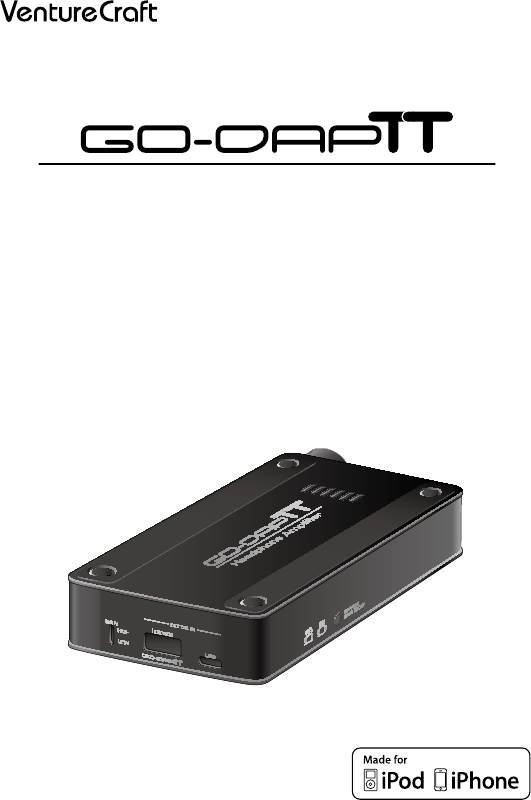

User's Guide

Headphone Amplifier

Tube Headphone Ampli er

CONTENTS

■ Features of this Product _________________________________ 2

■ Contents of Package ___________________________________ 3

■

Compatible Models of iPod/iPhone and PC (OS)_________________3

■ How to Use this Product ________________________________ 3

Checking the Remaining Battery of this Product ______________ 3

2. Charging the Built-in Battery of this Product _______________4

3. Charging iPod/iPhone by this Product's Built-in Battery ______ 5

4. Connecting with iPod/iPhone __________________________ 5

Listening to Music in iPod/iPhone in "AMP" Mode ______________ 6

6. Synchronizing with iPod/iPhone and iTunes on Computer ____ 6

7. Listening to Music on Computer in "USB DAC" Mode ________7

8. Connecting to Other Audio Devices _____________________ 8

9. Setting Other Functions _____________________

_________ 8

10. Setting Gain _______________________________________9

Troubleshooting ______________________________________ 9

Specications __________________________________________ 10

Cautions on Use ________________________________________11

Product Support _______________________________________14

Trademarks and Registered Trademarks _____________________ 14

Summary of content (14 pages)

PAGE 1
CONTENTS ■ Features of this Product _________________________________ 2 Headphone Amplifier ■ Contents of Package ___________________________________ 3 ■ Compatible Models of iPod/iPhone and PC (OS)_________________3 Tube Headphone Amplifier User's Guide ■ How to Use this Product ________________________________ 3 1. Checking the Remaining Battery of this Product ______________ 3 2. Charging the Built-in Battery of this Product _______________ 4 3.
PAGE 2
■ Features of this Product Go-Dap TT has certainly inherited the great features of the successive products and is a flagship model in the Go-Dap series. Go-Dap TT integrated the contemporary semiconductor technology in the rich and soft tube sound and has succeeded to eliminate thoroughly the microphonics noize, the tube's weakest point. Thank you for purchasing VentureCraft product. Please read this user's guide thoroughly before using. Keep this document available for your future reference.
PAGE 3
■ Contents of Package ● Go-Dap TT main unit ● ■ How to Use this Product Please follow operational procedures 1 to 10 below. USB cable (USB2.0 compatible[A connector - micro B connector type]) 1. Checking the Remaining Battery of this Product ● Customer card & Warranty （Japan only) The remaining battery can be checked by the color of the located on the side panel.
PAGE 4
2. Charging the Built-in Battery of this Product Charging status indicator USB Charging status Pre charge Charge Complete LED ○● ○ ● LED color ○：Orange ●：Green 1 2 Connect the USB micro B connector on the rear panel of this product and computer or the USB charging adapter supplied with iPod/iPhone by using the supplied USB cable. CAUTION If both LEDs are off or become off when the USB cable is connected, immediately disconnect the USB cable and stop charging.
PAGE 5
3. Charging iPod/iPhone by 4. Connecting with iPod/iPhone this Product's Built-in Battery Connect by inserting the Apple genuine dock cable supplied with iPod/iPhone into the i DEVICE (USB standard A) connector of this product, and set the toggle switch (R) on the front panel to " " and the toggle switch (L) to " " mode for headphone output/digital output.
PAGE 6
5. Listening to Music in iPod/iPhone in "AMP" Mode 1 2 6. Synchronizing with iPod/iPhone and iTunes on Computer Turn the power ON by the power switch volume knob and set the toggle switch (L) to " " position. 1 Connect the USB micro B connector on the rear panel of this product and your computer with the supplied USB cable. 2 By setting the toggle switch (L) on the front panel to " " mode, it enables synchronization with iTunes on your computer.
PAGE 7
. Listening to Music on Computer in "USB DAC" Mode 1 4 Turn the power switch volume knob clockwise until it clicks to turn the power ON. Connect this product and computer with the supplied USB cable. The device driver is automatically installed when this product is connected to computer for the first time. USB 2 Set the toggle switch (R) to " " position. 5 Check the sound setting on computer and confirm a sound is coming. For volume control, adjust the volume on computer.
PAGE 8
. Connecting to Other Audio Devices 9. Setting Other Functions This product supports both digital and analog output. ■ Setting volume ■ Digital connection Adjust the power switch volume knob. This product can be connected with other audio devices which have an OPTICAL input connector. PHONE/ OPTICAL ■ Setting bass boost Use bass boost for enhancement in bass. 1 Press and hold the BATTERY / BASS BOOST button.
PAGE 9
10. Setting Gain Troubleshooting Gain of the headphones can be set by switching the Gain toggle switch to either [HIGH] or [LOW]. ● It enables the headphones with different impedance to exert its full performance and to play in high-quality sounds.
PAGE 10
Specications ■ Battery ■ Main unit Size Width 67.80 × Depth 133.50 × Height 25.00mm (including the protrusion) Weight 234g ■ Analog lineout Frequency characteristic Within 20 to 20kHz±2dB SN ratio 94dB or greater Distortion Distortion: 0.5% or less Maximum output: 80mW + 80mW @32Ω Adaptive impedance: 16Ω or higher Sampling frequency Digital output (OPTICAL) ：Input 32/44.1/48kHz 16bit Capacity 3500mAh Charge method Via the supplied USB cable (USB2.0) Time to full charge Approx.
PAGE 11
Cautions on Use ■ If this product does not get fully charged after the specified In orderto use this product safely and prevent accidents, please take the following cautions. charging time, cease charging and arrange for inspection/ repairs to be performed. ■ A tube is mounted on this product. In order to avoid a unit ■ Use a soft cloth to clean this product.
PAGE 12
For the customers in the USA INFORMATION: If you have any questions about this product: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Visit: http://go-dap.com Contact: Venture Craft Customer Information Service +81-3-5204-1004 These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device complies with Part 15 of the FCC Rules.
PAGE 13
About China RoHS Compliance DD Limited 有毒有害物质或元素含有表有毒或有害物质铅 (Pb) 汞 (Hg) 镉 (Cd) 六价铬 (Cr6+) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. 零部件电路板附件 ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ CE Notice This product conforms to the EMC Directive 2004/108/EC and to the Low Voltage Directive 2006/95/EC. The complete Declarations of Conformity can be found at http://go-dap. com .
PAGE 14
Product Support Trademarks and Registered Trademarks VentureCraft Inc. Gadget Business Division iPod, iPhone, Made for iPod, Made for iPhone, iTunes, and Mac OS are registered trademarks or trademarks of Apple Inc., in the USA, or other countries. http://www.go-dap.
