Examining Terminal
Features
Before you continue the installation process, notice the features of the VX 520
terminal (see Figure 3).

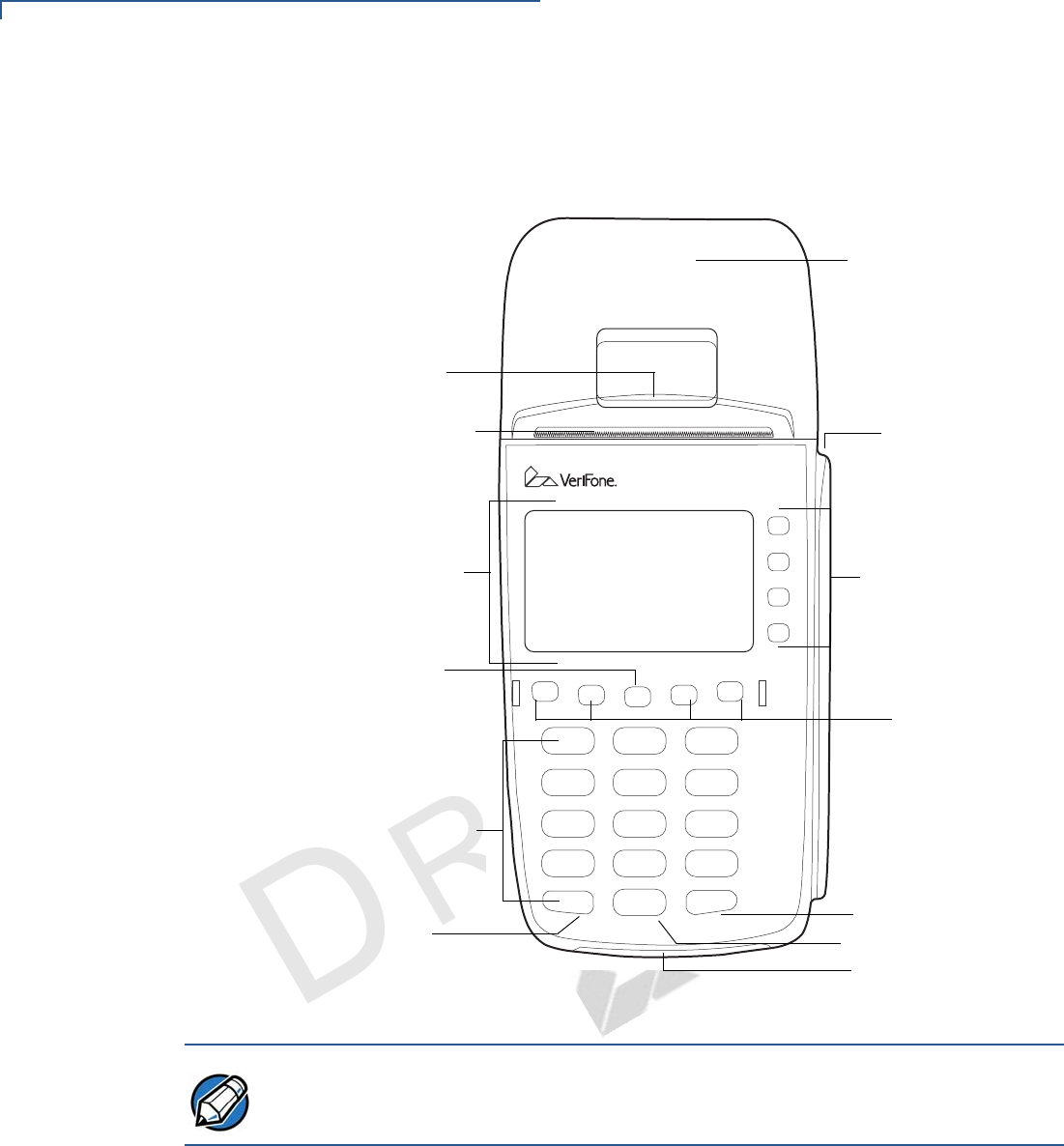

Figure 3 VX 520 Terminal Features (Front Panel)
Front Panel
The front panel includes the following features:
• A terminal display, backlit LCD screen.
• Five types of keys:
a A backlit 12-key, telephone-style keypad.
b Four ATM-style function keys, labeled F1 to F4, to the right of the LCD
screen.
INTERNAL THERMAL
PRINTER
ATM-STYLE
TERMINAL DISPLAY
MAGNETIC
PROGRAMMABLE
ALPHA KEY
TELEPHONE-STYLE
ENTER KEY
SMART CARD READER
FUNCTION KEYS
KEYPAD
CANCEL KEY
BACKSPACE/CLEAR KEY
SERRATED METAL
STRIP
FUNCTION KEYS
CARD READER
PRINTER DOOR
LATCH
NOTE
VeriFone ships variants of the VX 520 terminals for different markets. Your
terminal may have a different configuration from the features described in this
section.
