TERMINAL SETUP
VX 520 Setup
24 VX 520 INSTALLATION GUIDE
V
E
R
I
F
O N
E
C
O
N
F I
DE
N
T
I
A
L
TE
MP
LATE
R
EV
F
Installing the Smart
Battery (VX 520
GPRS Only)
The smart battery fits in a slot on the back of the VX 520 GPRS
terminal. The
locking tab clicks when the battery is in place. The slot is keyed, so that there is
only one way to insert the battery.

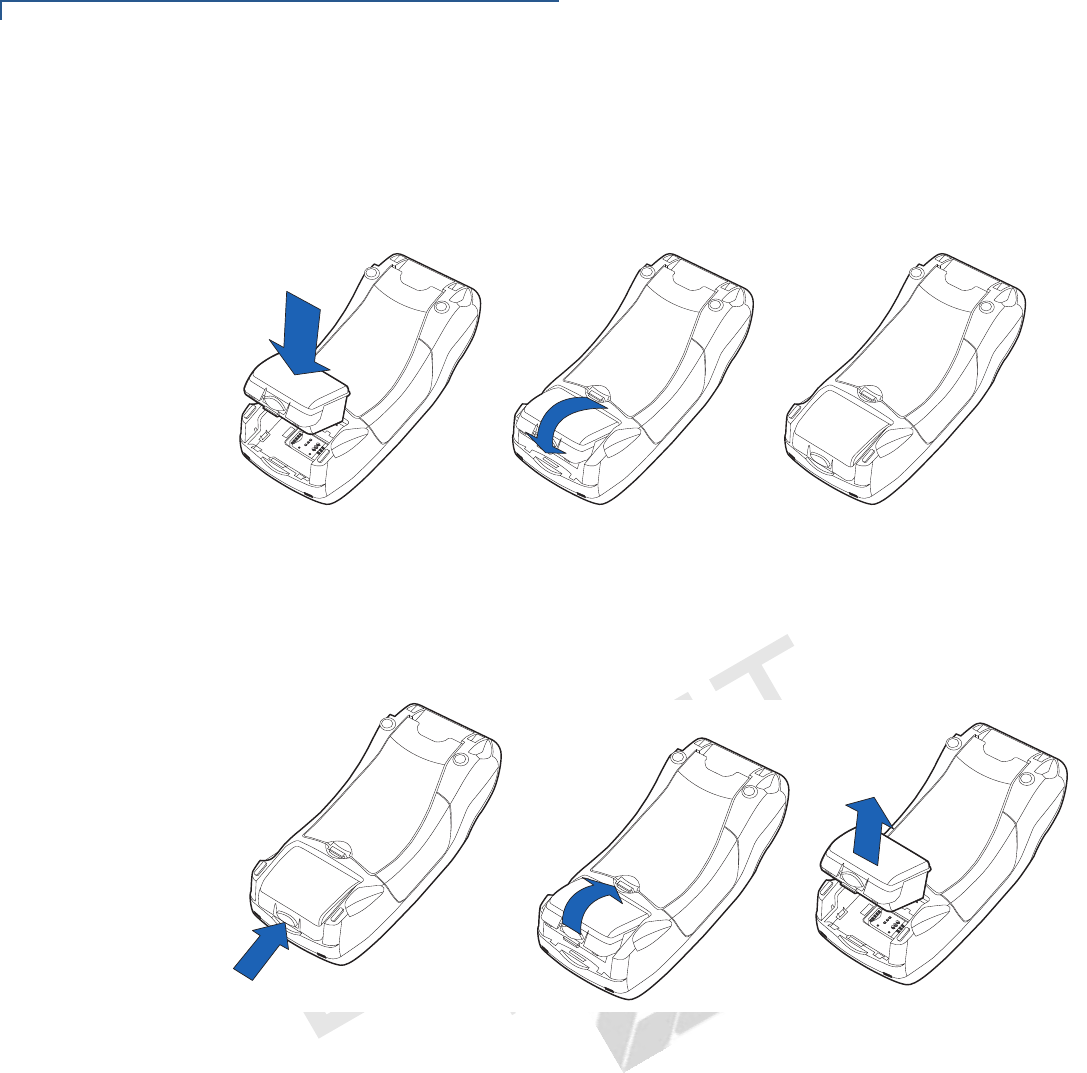

Figure 10 Installing the Smart Battery
Removal
To remove the VX 520 GPRS smart battery, press the locking tab and pull the
smart battery from its slot.
Figure 11 Removing the Smart Battery
