TERMINAL SETUP
VX 520 Setup
30 VX 520 INSTALLATION GUIDE
V
E
R
I
F
O N
E
C
O
N
F I
DE
N
T
I
A
L
TE
MP
LATE
R
EV
F
5 Install an MSAM card by carefully sliding it into the slot until it is fully inserted.

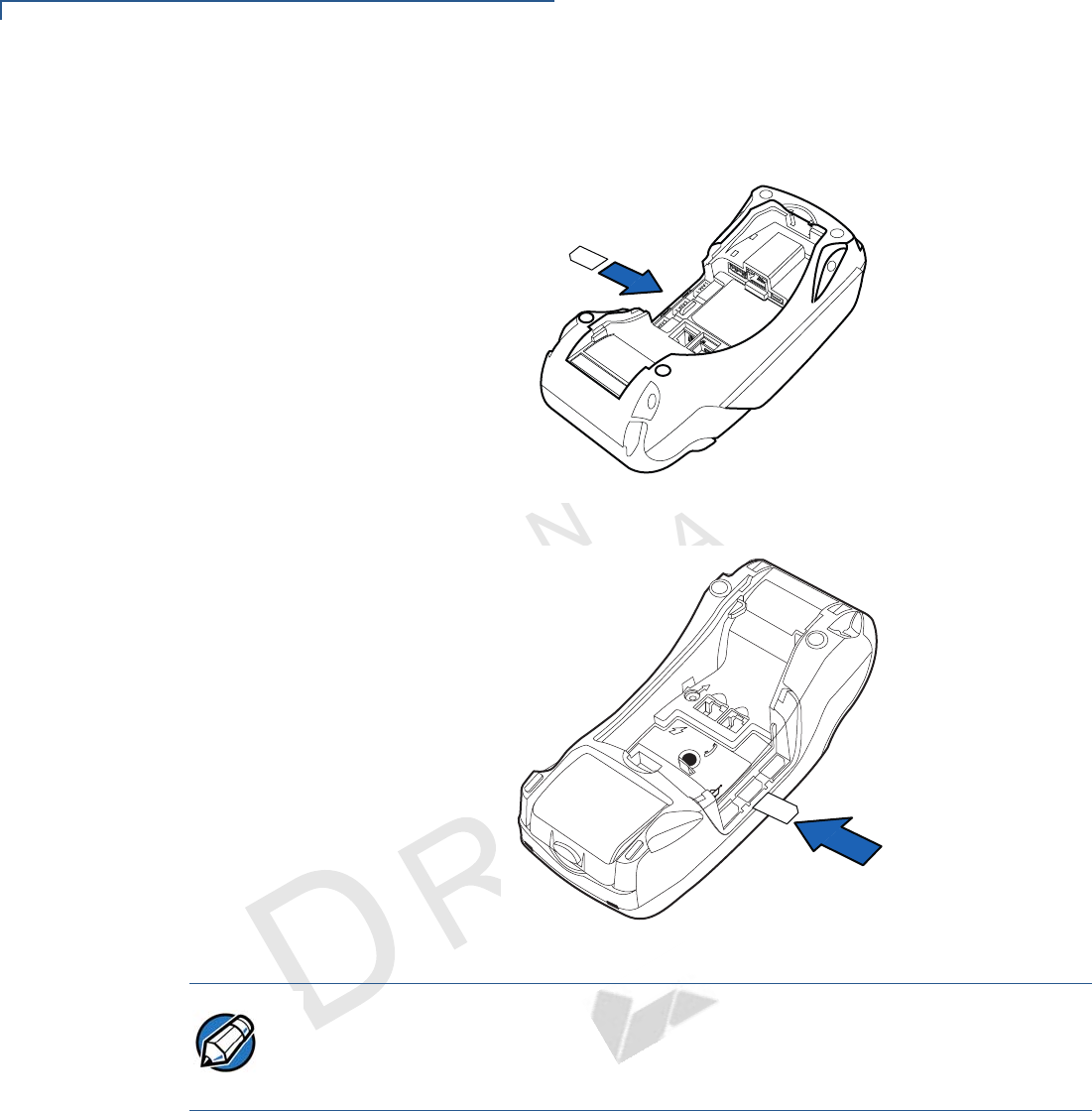

Figure 21 Installing a VX 520 D/E MSAM Card
Figure 22 Installing a VX 520 GPRS MSAM card
6 Close the MSAM cardholder panel, and then replace the terminal rear cover.
Installing/Replacing
SIM Card (VX 520
GPRS Only)
The VX 520 GPRS terminal supports the installation of a SIM (Subscriber Identity
Module) card. Use the following procedure to replace or install a SIM card.
1 Place the terminal upside down on a soft, clean surface to protect the display
from scratches.
23๎๎๎
NOTE
Before inserting the MSAM card, position it as shown in Figure 21, with the cardโs
gold contacts facing down. The cardholder connector base has an image
resembling the notched corner of an MSAM card to ensure the card is positioned
correctly.
