TERMINAL SETUP
VX 520 Sprocket Setup
46 VX 520 INSTALLATION GUIDE
V
E
R
I
F
O N
E
C
O
N
F I
DE
N
T
I
A
L
TE
MP
LATE
R
EV
F
Installing Paper Tray
The VX 520 Sprocket terminal uses 76 mm carbonized paper sheets. This type of
paper requires an external-mounted paper tray. Use the following procedure to
install the paper tray for the VX 520 Sprocket terminal:
To install the paper
tray
1 Align the slots with the paper tray clasps.
2 Slide the paper tray into the rear of the terminal.
3 Hook the clasps into the slots to secure the tray and snap the lock on the
lower end of the tray.

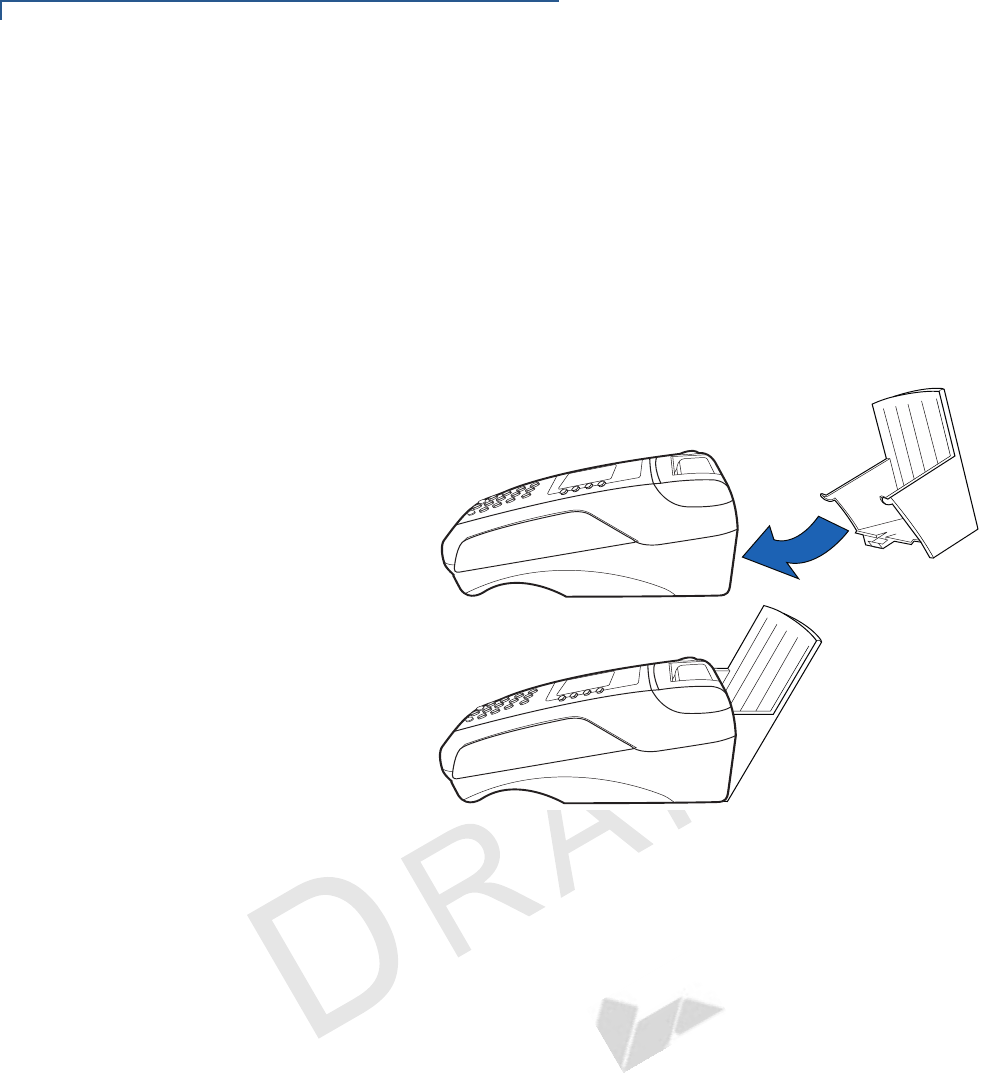

Figure 39 Attaching Paper Tray
