TERMINAL SETUP
VX 520 Sprocket Setup
VX 520 I
NSTALLATION GUIDE 49
V
E
R
I
F
O N
E
C
O
N
F I
DE
N
T
I
A
L
TE
MP
LATE
R
EV
F
Connecting the PIN
pad or Smart Card
Reader to the VX 520
Sprocket
Use the following procedures to connect a PIN pad to the VX 520 Sprocket.
Figure 42 provides an example of a peripheral connection to the Host USB port

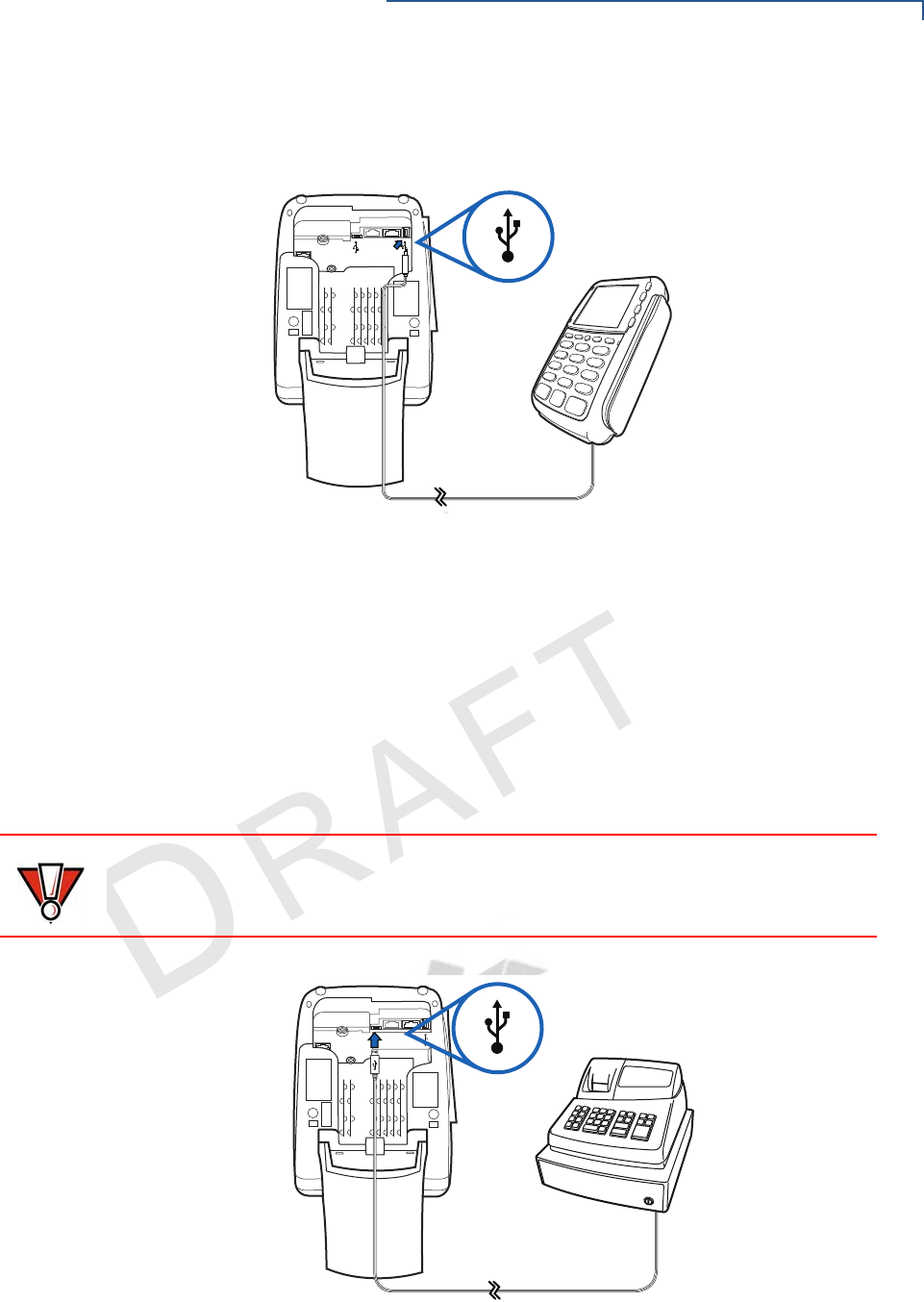

Figure 42 VX 520 Sprocket Sample PIN pad Connection
1 Turn the terminal upside down to access the connection ports.
2 Insert the USB connector of the PIN pad into the USB port of the VX 520
Sprocket.
Connecting ECRs to
the VX 520 Sprocket
The VX 520 Sprocket terminal also supports Electronic Cash Registers (ECR).
Contact your VeriFone representative or visit the online store at
www.store.verifone.com for information on these devices.
Figure 43 provides an example of a peripheral connection to the Client USB port.
Figure 43 VX 520 Sprocket Sample ECR Connection
ENO
HP
232SR
HTE
CAUTION
ECRs require a separate power source. Before connecting a check reader or
similar device, remove the power cord from and ensure that the indicator LED is
not lit.
