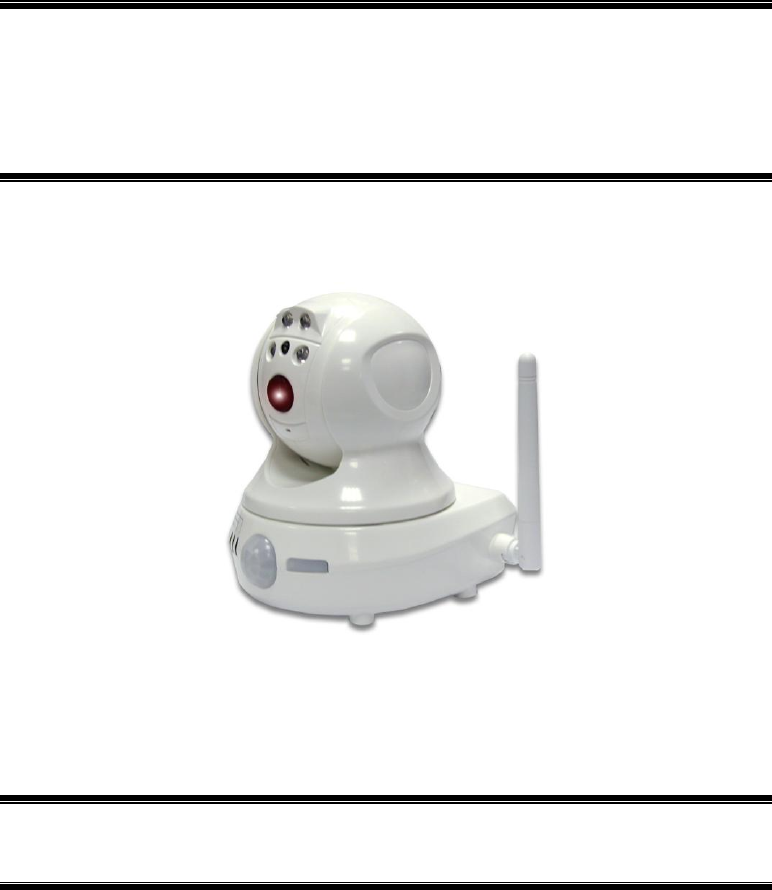

RC8061 Pan/Tilt Camera Setup Guide P/N: 956YM80001 Document Version: 1.07 Copyright 2010. All Rights Reserved. All trademarks and trade names are the properties of their respective owners.
Package Contents The following items should be included: If any of these items are damaged or missing, please contact your service provider immediately. 1. Pan/Tilt Camera 2. 6 feet long Power adapter 3. Mounting Bracket 4. Three (3) Mounting Screws 5. Three (3) Mounting Anchors 6.
1 Chapter 1 Introduction This Chapter provides details of the Pan/Tilt Camera's features, components and capabilities. Overview The Pan/Tilt Camera has an Integrated Microcomputer and a high quality Image Sensor, enabling it to display high quality live streaming video. Using enhanced MPEG4 technologies, the Pan/Tilt Camera is able to stream high quality video and audio. The high compression capabilities of MPEG4 reduce network bandwidth requirements to amazingly low levels.
Wireless Features Standards Compliant: The Pan/Tilt Camera complies with the IEEE802.11g (DSSS) specifications for Wireless LANs. Supports both 802.11b and 802.11g Standards: The Pan/Tilt Camera supports both 802.11b and 802.11g standards. Speeds up to 54Mbps: All speeds up to the 802.11g maximum of 54Mbps are supported. Security Support: Full WEP (64/128 Bit), WPA and WPA2 Personal standards are supported on the Wireless interface, allowing advanced encryption of wireless data.
2 Chapter 2 Basic Setup This Chapter provides details on how to install and configure the Pan/Tilt Camera. You can also refer to details about assembly of this device in the online setup wizard at http://monitoringcontrol.verizon.com System Requirements To use the Wired Interface, a standard router and network cable are required. To use the Wireless interface on the wireless model, other Wireless devices must be compliant with the IEEE802.11b or IEEE802.11g specifications.
1. Lens No physical adjustment is required or possible for the lens, but you should ensure that the lens cover remains clean. The image quality is degraded if the lens cover is dirty or smudged. 2. Microphone The Pan/Tilt Camera comes with a built-in (Not microphone. currently supported) 3. Power LED On - Powered on Off - No power Blinking - The Power LED blinks during start up. This can take up to 20 seconds 4. Passive Infrared (PIR) Sensor The PIR sensor is designed for human body detection. 5.
Rear Panel - Pan/Tilt Camera Figure 2: Rear Panel – Pan/Tilt Camera 1. Antenna The antenna is adjustable; best results are usually obtained with the antenna positioned vertically. 2. Speaker Out (Not currently supported) An external speaker can be plugged in here. 3. Power Port The supplied 5V power adapter plugs in here to power on the Pan/Tilt Camera. Note: Do not use any other power adapters since doing so may damage the Camera.
4. Ethernet Port The supplied Ethernet cable plugs in here enabling you to connect your Pan/Tilt Camera to your router. Note: Plugging in the Ethernet cable will disable the Wireless interface. Only one (1) interface can be active at any time. The Ethernet cable should only be connected or disconnected when the camera is powered OFF. Attaching or detaching the Ethernet cable while the camera is powered on does NOT switch the interface between wired and wireless.
Step 1: Check the Antenna a. Ensure the antenna is attached to the Pan/Tilt Camera. b. Put the antenna in the upright position to improve wireless reception Step 2: Connect the Ethernet Cable a. Plug one end of the Ethernet cable into the Ethernet port on the back of the Pan/Tilt Camera. At this time, please do not connect the power adapter. b.
This will enable the Wired interface. Wireless and Wired interfaces cannot be used simultaneously. Using the Wired interface is recommended for initial configuration. After you configure the Wireless settings of the Pan/Tilt Camera via the setup wizard and ensure they are correct, you can unplug the Ethernet cable and power off the camera. The camera will be in Wireless interface when you power on the camera again. Step 3: Connect the Power Adapter a.
* Optional: Mount the Pan/Tilt Camera *Note: The Pan/Tilt Camera can also be placed on a table using the stand provided. Note: Please ensure the Pan/Tilt camera is configured and added to the network before permanent mounting. Step 1: Install Mounting Bracket a. Drill three holes in the ceiling, in the formation shown below, where you would like to install the Pan/Tilt Camera. b. Push the mounting anchors into the drilled holes c.
Step 2: Mount the Camera Slide the Pan/Tilt Camera into the bracket and secure it firmly.
A Appendix A Specifications Pan/Tilt Camera Model Pan/Tilt Camera Dimensions 90mm (W) * 35mm (H) * 90mm (D) Built-in Speaker 8 ohm, 0.5W (Not Currently Supported) Built-in Microphone 6mm, -40 dB+3db, >55dB (Not Currently Supported) Light Sensor Min low lux trigger value: 0.5 lux PIR Sensor Sensitivity distance: 5 meters Angle degree: 100°(cone) Focus distance: 6~9 meters Pan & Tilt Pan (320° / 4 seconds): left 160°, right 160° Tilt (120° / 0.
Regulatory Approvals CE Approvals The Pan/Tilt Camera and the Ethernet Pan/Tilt Camera meet the guidelines of the European Union and comply with the 99/5/EEC and RTTE 99/5EG directives, including the following standards: EN60950 EN300 328-2 EN301 489-1 EN301 489-17 This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
