Manual

VERMONA DRM1 MKIII - analog drum synthesizer

Individual Outputs/Inserts

Each DRM-channel offers a dedicated individual output/insert with a choice of

possible applications. Crucial to the outputs’ function is the cable being used,

or to be more exact, the pin-assignment of the connector being placed in the

output jack.

Use as individual output

The OUT jack can be used as an individual out in two ways.

1. By using a standard TS-cable, the signal will be automatically excluded

from the main outputs:

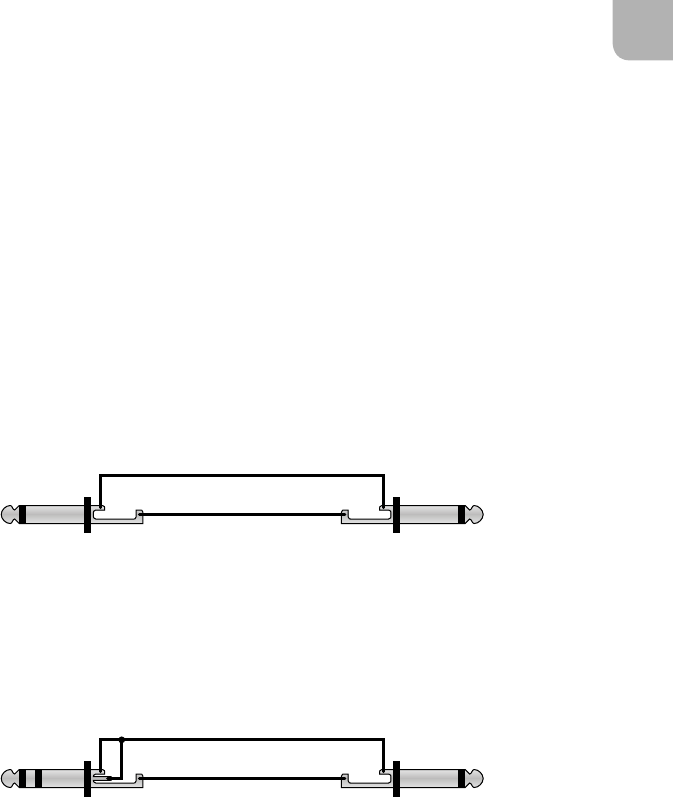

2. By using a special cable with a TRS connector on one side and a TS connec-

tor on the other, the signal will additionally remain present on the main

output:

Tip and ring of the TRS connector will need to be connected here.
