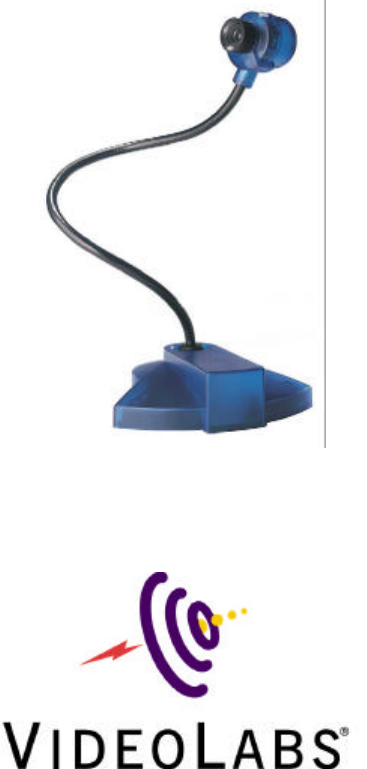

VideoLabs® FlexCamTM iCam Installation Instructions & Operator’s Guide
VideoLabs® FlexCam™ iCam – Table of Contents Intended Use 3 FCC Statement 3 CE Statement 3 Introduction Packing List Care and Cleaning Operating and Storage Conditions General Precautions 4 4 4 4 4 Getting Connected 5 Technical Specifications 6 Warranty Information 7 Application Examples 9 Page 2
INTENDED USE Before operating the FlexCam iCam, please read the entire manual thoroughly. The VideoLabs FlexCam iCam was designed, built and tested for use indoors. IMPORTANT SAFEGUARDS 1. Read and understand all instructions before using. 2. Do not operate the appliance if the power cord is damaged or if the appliance has been dropped or damaged. A qualified service technician must examine the appliance before operating. 3.
Introduction Thank you for purchasing the VideoLabs FlexCam iCam Camera. Please contact VideoLabs if you have any questions about the FlexCam iCam or any other VideoLabs products. Packing List The FlexCam iCam package should contain the following: • FlexCam iCam Camera • 12 VDC Power Supply • 12’/3.66m S-Video Cable • S-Video to RCA Plug Adapter • SCART Adapter (PAL Models only) • Documentation Care and Cleaning • Do not attempt to take the camera apart. There are no user-serviceable components inside.
Getting Connected – In Three Easy Steps Step 1: Using the provided 12 VDC power supply only, attach the power plug to the power jack on the back of the FlexCam iCam. Then plug the power adapter into the wall outlet. See Figures 1 & 2. Step 2: Connect the S-Video output of the FlexCam iCam to the input of a video monitor, TV, VCR, computer, or other video display device. Use the female S-Video to male RCA plug (composite) video adapter if required.
Technical Specifications: Image Sensor: 1/3” CMOS Effective Pixels: 508 (H) x 492 (V) - 251k pixels - NTSC 628 (H) x 582 (V) - 365k pixels – PAL Resolution: 330 TV Lines Focus Range: ¼”/.6cm to Infinity Lens: 8mm D-mount Glass Lens Gain Control: Auto White Balance: Auto Iris: Auto (flicker-free performance) Sensitivity: 3 Lux S/N Ratio: >48 dB Video Output: S-Video or Composite Video Formats: NTSC & PAL Gooseneck: 20”/50.
Warranty Information on Hardware VideoLabs warrants this product against defects in materials and workmanship for a period of one (1) year from the date of purchase. In addition, VideoLabs provides a five (5) year warranty on the flexible gooseneck camera neck from the date of purchase only when the registration card is filled out and mailed back.
International Customers VideoLabs requires that all international returns be shipped via UPS. VideoLabs will pay for the product to be returned to our designated service facility, via UPS and will ship returned product freight collect or by a freight forwarder designated by the customer. Products Not Under Warranty Payment arrangements are required before outbound shipping for all products that are outof-warranty.
FlexCam iCam Application Examples: Video Monitor Video FlexCam iCam Laptop Computer Video FlexCam iCam USB VideoLabs Video to USB Adapter VideoLabs Stinger Pro II PCI Video Capture Card Video FlexCam iCam with Optional Microscope Adapter Kit Computer System VideoLabs Video to USB Adapter Laptop Computer Video FlexCam iCam USB XGA LCD Projector Video FlexCam iCam with Optional Microscope Adapter Kit Page 9 LCD Projector
