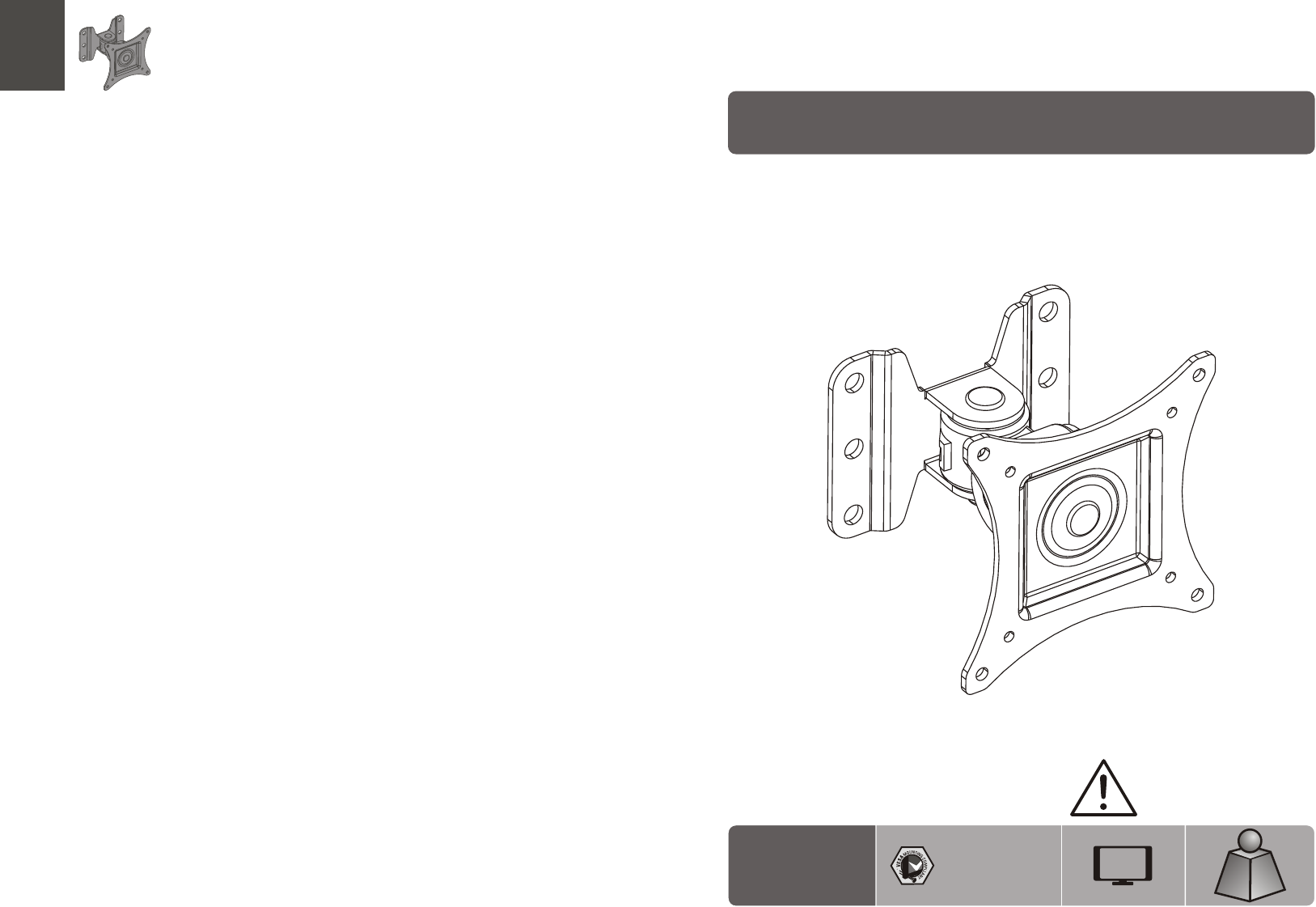

INSTALLATION MANUAL LCD Wall Mount CAUTION: DO NOT EXCEED RATED LISTED WEIGHT. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! LCD-302 75x75/100x100 27" MAX 15kg (33lbs) RATED ISSUED: FEB.
NOTE: Read the entire instruction manual before you start installation and assembly. Component Checklist IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement. WARNING • Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet.
1b. For Solid Brick and Concrete Mounting 1a. For Wood Stud Wall Mounting 55mm 30mm ((1.2") (2.2") 2.2") 60mm ((2.4") 2.4") ø 4.5mm (ø 3/16") 1 ø 10mm (ø 3/8") 2 1 Find and mark the exact location of mounting holes Mark the exact location of mounting holes 3 2 Drill pilot holes Drill pilot holes √ X X √ X X X W-A W-B Screw the wall mount onto the wall Screw the wall mount onto the wall WARNING • Make sure that mounting screws are anchored into the center of the studs.
2. Attaching the Display to the VESA Plate TV TV 3. Adjustment B TV Tension is pre-set at the factory. If too tight or too loose, you may adjust the tension by loosening or tightening the head and arm adjustment bolts. +45° M-A 180° ±180° -45° Adjust to the desired position or tilt. Lift the display and match the holes on your display with the holes on the mount. Secure your display to the mount by tightening screws. Tighten all screws but do not over tighten.
