PROFESSIONAL GRILL ACCESSORY CARE & USE/INSTALLATION
WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of: 1. 2. 3. 4. Fire Burn hazard, personal injury or property damage Ruined steaks or other unpleasant cooking experiences Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read this manual thoroughly before installation, use, or servicing of this product.
WARNINGS WARNING • Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane cylinders in the cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders indoors or on their sides. • Children should never be left alone or unattended in an area where an accessory is located. Place your accessory well away from areas where children play.
WARNINGS WARNING 1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa). 2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
TABLE OF CONTENTS USING YOUR ACCESSORY Accessories Covered in this Manual HOW TO LIGHT YOUR ACCESSORY BEFORE YOU START If Shipment Arrives Damaged Important Notes SPECIFICATIONS & INSTALLATION GAS CONNECTIONS Natural Gas LP Gas LP Connections Gas Conversion Kits ELECTRICAL CONNECTIONS Testing the Installation Leak Testing 6 6 6 7 7 7 9 10 10 11 11 11 13 14 14 IMPORTANT SAFETY PRECAUTIONS A MESSAGE TO OUR CUSTOMERS 15 16 USING THE POWER BURNER Smell of Gas While Cooking Yellow Flames 17 17 17 LIGHTING

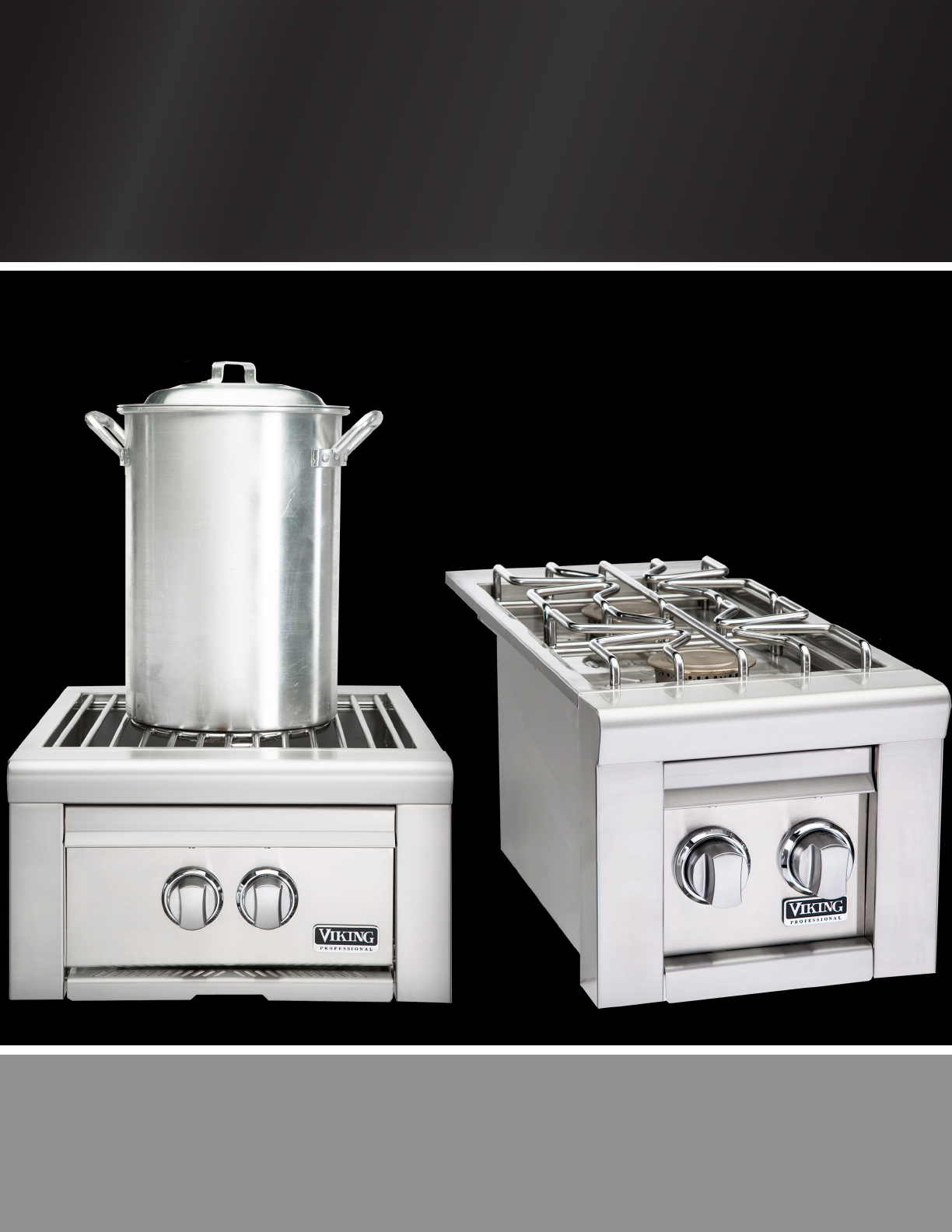

USING YOUR ACCESSORY This manual covers several accessory appliances and optional accessories for those appliances. Except where noted, the assembly, installation and use of these accessories is identical. ACCESSORIES COVERED IN THIS MANUAL DOUBLE SIDE BURNER MODEL (C)VQGSB5130(N/L)SS POWER BURNER MODEL (C)VQGPB5200(N/L)SS The Power Burner is a dual-ring commercial style burner with a range of 3,000 to 47,000 BTU’s. The double side burner features two 15,000 BTU burners for cooking smaller food items.
BEFORE YOU START WARNING • Never install this product into a combustible enclosure. Doing so could result in fire, property damage and personal injury. • Never locate the accessory under a roof or overhang, in a building, garage, shed or other such enclosed area. • Always maintain the required clearances from combustibles as detailed. Accessories are designed for outdoor use only. Never use in a garage, building, shed, breezeway, or other enclosed area.
BEFORE YOU START...continued BUILT-IN INSTALLATIONS CLEARANCE TO COMBUSTIBLE MATERIALS Built-in accessories are intended for installation in a built-in enclosure constructed of non-combustible materials. Minimum clearance from the sides and back of the accessory to adjacent combustible construction below the counter top is 12” from the sides and back. The accessory drops into the opening shown in the cutout detail drawing and hangs from its counter-top trim.
SPECIFICATIONS & INSTALLATION The guides, measurements and dimensions detailed below are designated to assist you with planning your outdoor kitchen. NOTE: Due to continuing product innovation, specifications are subject to change without notice. IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifications and the proper installation of your outdoor kitchen equipment. This manual can be downloaded from our website at www.vikinggrills.
GAS CONNECTIONS GAS PLUMBING WARNING Never connect a gas line directly to the accessory. A pressure regulator must be installed on all gas equipment. All local codes require that the pressure regulator supplied with your accessory is used. Removing or failing to install the pressure regulator can result in fire and serious personal injury and will void the warranty. The accessory is factory set to use either propane (LP) or natural gas (NAT).
GAS CONNECTIONS ...continued LP GAS Accessories set up for LP gas come equipped with an LP hose/ regulator assembly for connection to a standard 20 lb. LP cylinder. (Type 1). All fittings necessary to attach the assembly to the accessory are included. A dented or rusty LP cylinder may be hazardous and should be avoided. If in doubt, have it checked by your LP supplier. Always check for leaks after every LP cylinder change. (See INDEX: “Leak Testing” for further details.
GAS CONNECTIONS ...continued propAne hook up PROPANE HOOK UP MAxIMUM RUNS FOR ALL APPliAnces on suPPly line Run Length Max BTU for all WARNING 3/4” Pipe Appliances on (in feet) line COLD WEATHER WARNING: PROPANE 10 360,000 Extremely cold temperatures may cause your burner 20 inside the burner 245,000 to light instead of outside. Once lit, if sound, immediately 30you hear a ‘whooshing’ 198,000 turn40 the burner knob off to extinguish the flame and 169,000 then immediately re-light the burner.
ELECTRICAL CONNECTIONS OPTIONAL ELECTRICAL KITS Each accessory includes 6 feet of wiring (coiled inside the back of the accessory) to connect the accessory to a Viking Range, LLC grill. Additionally, 2 specialized electrical kits are available to purchase for your accessory, depending upon how it will be installed. Each electrical kit ships with an instructional sheet for assembly. Assembly instructions and schematics/drawings can also be found on our website at www.vikingrange.com in the US or www.brigade.
TESTING THE INSTALLATION Before turning the gas supply on, check for proper installation using the following test: 1. Plug the transformer back into the receptacle. 2. Push in the gas control knob on your accessory and watch the igniter. It should glow bright and steady. 3. Turn on the light switch on the grill. Both the grill and the grill accessory lights should operate together. This indicates a proper assembly. Turn the gas on to all appliances. 4.
IMPORTANT SAFETY PRECAUTIONS PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR GRILL ACCESSORY. 1. NEVER LEAVE THE GRILL ACCESSORY UNATTENDED WHILE COOKING. 10. Never use charcoal or any other solid fuel in the grill accessory. 2. Ensure all tie-down wires have been removed from the burners. 11. Cooking excessively fatty meats and oils will cause flare ups.
A MESSAGE TO OUR CUSTOMERS You’ve just joined a discriminating collection of amateur and professional chefs that take outdoor cooking to a new level. Viking Range, LLC manufactures many accessory cooking appliances to compliment your grill and your desire for truly superior cooking results. Your appliance has been designed and built with meticulous attention to detail and it offers some unique and powerful features.
USING THE POWER BURNER ((C)VQGPB5200(N/L)SS) The power burner incorporates a cast brass, dual-ring, burner. SMELL OF GAS WHILE COOKING WARNING! IF YOU SMELL GAS WHILE THE GRILL ACCESSORY IS OPERATING, IMMEDIATELY TURN OFF ALL BURNERS AND SHUT OFF THE MAIN FUEL SUPPLY. Each ring can be independently operated for maximum heat control. Used together they can generate up to 47,000 BTU’s. • Perform a leak test (See INDEX: “Leak Testing” for further details.) • Check for blockages.
LIGHTING INSTRUCTIONS FOR ALL ACCESSORIES SAFETY PRACTICES AND PRECAUTIONS PURGING THE GAS LINES You should purge the gas line of air before attempting to light the grill accessory. WARNING Read the ‘User Manual/Installation Instructions carefully and completely before using your grill or grill accessory to reduce the risk of fire, burn hazard or other injury. Ensure that burner ties and all packing materials are removed before lighting any new accessory. 1.
LIGHTING INSTRUCTIONS FOR ALL ACCESSORIES ...continued LOW HEAT FLAME ADJUSTMENT The burners on your accessory feature an adjustable low setting. Fluctuations in gas pressure, gas conversion and even in the quality of the gas itself may affect burner performance at the “LOW” setting. It could be either too high or too low. To adjust the burner for low setting: 1. Make sure the grill accessory is cool. 2. Remove the grates so that you can see the flame while adjusting the burner. 3.
CONTACTING CUSTOMER SERVICE Before calling Customer Service, please make sure you have the following information: • Model number • Date of purchase • Proof of purchase by the original owner • Serial number The serial number can be located on the rating plate sticker. You may have a sticker on the back page of this manual. If not, you will find one located either on the underside of the drip tray (if you have one), on the heat shield behind the front panel, or on the inside left panel wall.
SCHEMATICS WHITE SIDE BURNER ACCESSORY CARE & USE/INSTALLATION | 21
VIKING RANGE, LLC LIMITED WARRANTY I. LIMITED LIFETIME WARRANTY The stainless steel grill body, brass grill burners, cooking grates, ProSearTM burner and rotisserie infrared burner are warranted to be free from defects in material and workmanship when subjected to normal domestic use and service for the lifetime of the original purchaser. This warranty excludes surface corrosion, scratches, and discoloration which may occur during normal use.
VIKING RANGE, LLC COMMON AREA LIMITED WARRANTY The Viking Range, LLC Limited Warranty covers residential installations only and is non-transferable to any other party. This ‘non-residential’ warranty applies when the product is installed in common areas where more than a single party has rightful access to its use or in locations considered beyond normal residential use such as B&B’s, and private clubs.
SIDE BURNER EXPLODED PARTS VIEW MODEL-SPECIFIC BTU OUTPUTS MODEL VQGPB5200(N/L)SS INNER BURNER OUTER BURNER 13,000 34,000 VQGSB5130(N/L)SS 24 | SIDE BURNER ACCESSORY CARE & USE/INSTALLATION OPEN TOP BURNER TOTAL INPUT 47,000 BTU/Hr 2 @ 15,000 30,000 BTU/Hr
INDEX A Adjusting: Low Heat Adjustment..................................................... 19 Power Burner Air Shutter................................................ 17 Air Shutter Adjustment................................................... 17 C Code Requirements.......................................................... 8 Cold Weather Use........................................................... 12 Connections: Electrical......................................................................... 14 Gas .
Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 Service: (888) 845-4641 www.vikingrange.com www.brigade.
