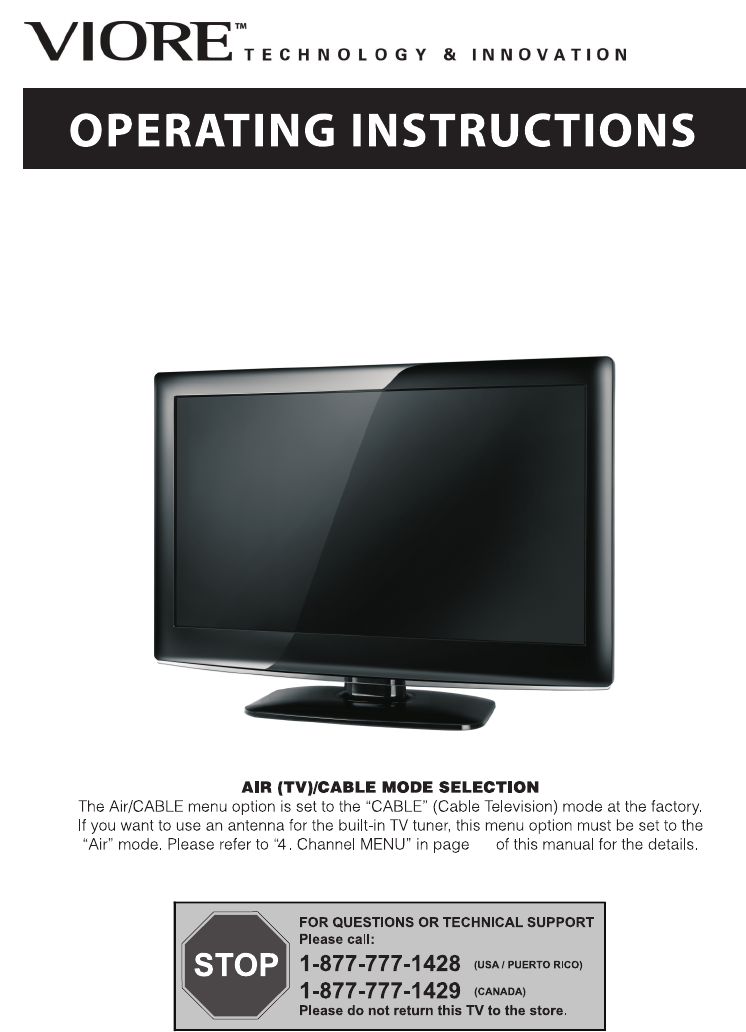

32" HD LCD Television LC32VH70 15
Contents Safety and warnings...................................................................................... 2-3 Introduction................................................................................... ..............4 Installation...................................................................................................5-8 Wall Mount .................................................................................................. 9 Remote Control........................................
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. 8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
SAFETY AND WARNINGS High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel. Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls. To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.
INTRODUCTION Accessories Main features 1366 x 768 native resolution for HD performance Integrated ATSC TV tuner for HDTV broadcast reception ■ High brightness provides a vivid and brilliant picture ■ Deeper blacks and brighter whites with high contrast ■ Wide Screen aspect ratio (16:9) for a complete home theater experience ■ HDMI input for true digital connection ■ VGA port for connection to PC ■ Built-in stereo speaker system ■ Full-function Remote Control ■ ■ R Power Cable............................
INSTALLATION Side panel Front panel SOURCE MENU 3 CH+ CH- USB 1 VOL+ 2 VOL- VIDEO VIDEO AV2 STANDBY L R 1 1: Remote control sensor. 2: Indicator LED: GREEN RED 3: HDMI3 INPUT R 30 30 2 3 4 5 6 7 8 9 + VOL CH _ _ HDMI3 INPUT 1．SOURCE：Display the input source menu. 2．MENU：Display main MENU. 3．CH+/CH-:In TV mode，press“CH+”or“CH-”to change the channel up and down.In MENU mode, press “CH+”or“CH-”to select items .In standby mode, press“CH+”or“CH-”to turn on the TV.
INSTALLATION PC STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. HDMI1 INPUT HDMI2 INPUT VGA INPUT Pr Y Pb Pr INPUT Pb AUDIO INPUT L HEADPHONE PC AUDIO INPUT COAXIAL RF INPUT AC INPUT 100-240V~50/60Hz AV1 Y R PRESET MODE RESOLUTION 1 720*400 2 V.Freq.(Hz) H.Freq.(KHz) 70 31.47 640*480 60 31.47 3 640*480 75 37.
INSTALLATION ANTENNA 200mm 400mm Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
INSTALLATION AV EQUIPMENT This TV provides two group of AV ,one group of YPbPr for convenient connectionto VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.
WALL MOUNT Instruction for Wall Mount A wall mount kit (purchased separately) would allow you to mount your VIORE TV on the wall. For detailed information on installing the wall mount, refer to the instructions provided by the wall mount manufacturer. It is strongly recommended to contact a technician for professional assistance for wall mount installation. VIORE is not responsible for any damage to the product or injury to yourself or others resulting from the wall-mounting.
REMOTE CONTROL MUTE POWER 1 11 RECALL 1 2 3 4 5 6 7 8 9 12 2 0 MENU SOURCE 13 3 14 4 ENTER 15 5 TV DISPLAY EXIT 6 S.M + + 16 17 CH VOL _ _ P.M 7 PAGE UP PAGE DOWN 8 EPG 9 10 SLEEP P G . ASPECT CH LIST EPG FAV 18 21 19 20 24 25 DTV STRENGTH YPbPr TV AV HDMI CC MTS/SAP VGA 22 23 28 26 29 27 30 RC2010V Insert Batteries Into the Remote Control 1 2 3 1. Remove the battery cover. 2. Inserting the 2 AAA 1.
OPERATION 1.SETUP WIZARD 2)If "Retail" mode is selected, the following menu will be displayed to confirm your selection. Select "Yes" by using "left/right arrow" keys on your remote control, and press "ENTER" key to confirm that you selected "Retail" mode. The Setup Wizard is provided so that you can select "Home" mode or "Retail" mode for the initial picture mode setting. The definitions of "Home" mode and"Retail" mode are as explained in the menu.
OPERATION 4. SETUP MENU 2. PICTURE MENU The first item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press to select and press to adjust. Press MENU to exit. Picture Mode < Home > > > > > > Parental Controls > Timer Contrast 50 Brightness 50 Color 50 Tint 0 Sharpness 50 Closed Caption Menu Settings VGA Settings Restore Default > Advanced Video Adjust The third item of the MENU is SETUP MENU. You can setup system here.
OPERATION Change Password: Press button and the screen will display as follows: Content Rating Content FV V L D S (Fantasy (Violence) (Sexual (Adult (Sexually violence) situation) language) suggestive dialog) TV-Y (All children) ---------- Old password New password Confirm password Adjust TV-Y7(Direct to Suggested order children) TV-G(General age Menu Select X audience) Exit TV-PG(Parental Guidance suggested) X X X X TV-14(Parents strongly cautioned) X X X X TV-MA(Mature audience on
OPERATION Description Rating E C Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being.
OPERATION 4.4 Menu Settings You can adjust Menu Settings here. Press to select. Press to adjust. Press MENU to exit. Are you sure? YES NO Transparency Menu Language < < > > 25% English Press“ENTER”Key To Select Adjust Adjust Select Menu Menu Select Exit Select“yes”and press the ENTER button. You will see the following screen that shows progress of Auto Scan. Exit 4.5 VGA Settings: This is available only in PC Mode. Press button to select VGA Settings and press button.
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio Snow Noise antenna position, direction or connection Ghost Normal audio antenna position, direction or connection Interference Noise electronic equipment,car/ motorcycle,fluorescent light Mute Volume(check if mute is activated or if the audio system connections are not correct) Normal Picture Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote contr
Viore,Inc. 7801 Hayvenhurst Avenue, Van Nuys,CA 91406 Ver.
