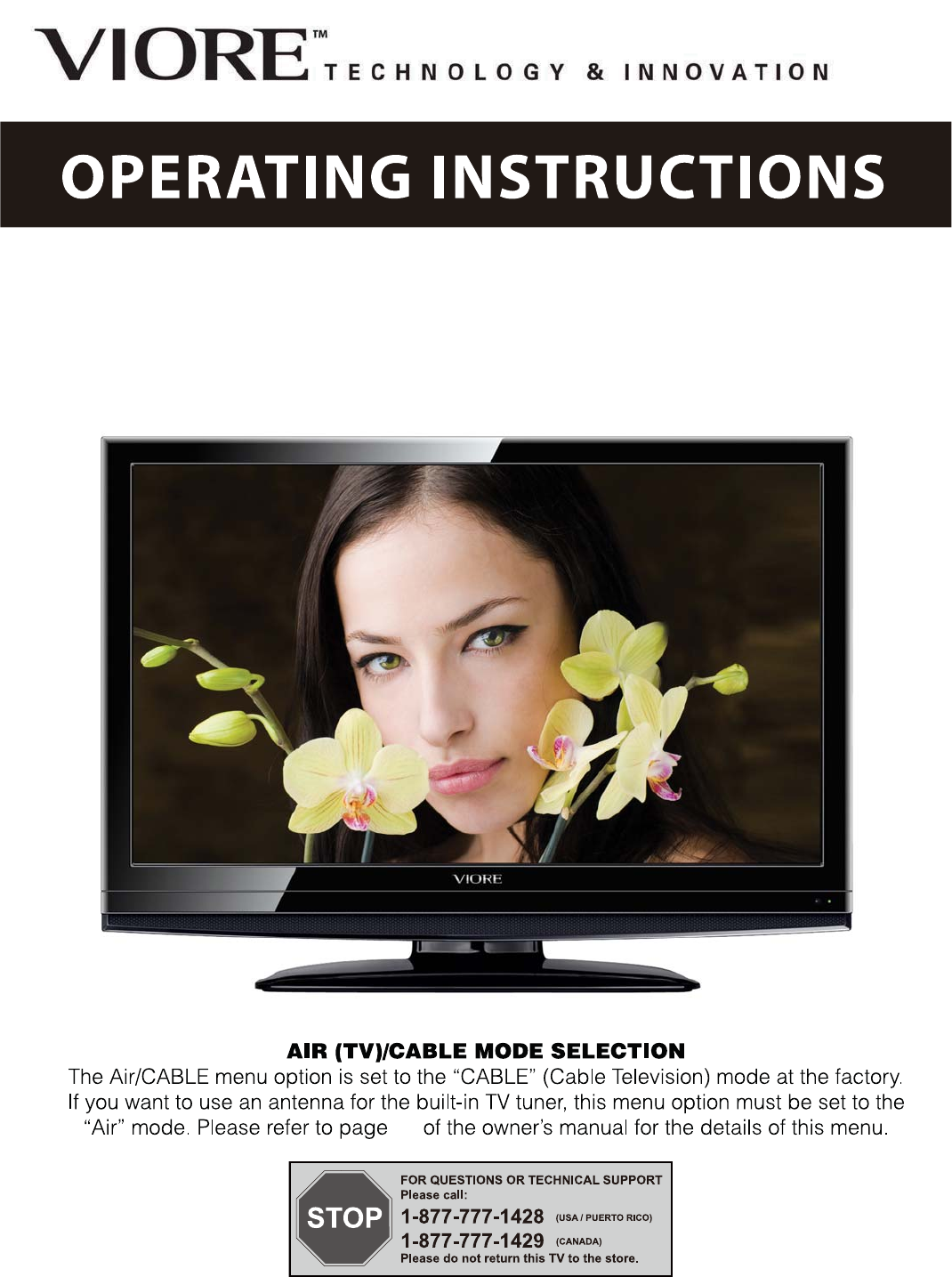

37" 1080p LCD Television LC37VF80 16 Ver.
Contents Contents Caution Safety Information 2 3 Unit and Accessories Product Feature 4 4 Introduction 1. Front View 2. Rear View 3. Instruction for Wall Mount 4. Remote Control 5-9 5 6 7 8-9 Basic Operation 10 OSD Menu 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. Lock menu 6.
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Safety Information Safety Information Electrical safety Physical safety 3
Unit and Accessories and Product Feature Unit and Accessories Quick Start Guide TV set INPUT LC37VF80 Stand Installation Guide Step 1. Place the TV with display side down at the edge of the table or desk (flat surface), and insert the Part B (Stand) to the Part A (Slit provided on the bottom of the TV). Now, the satand and the TV appears like the picture in the Step 2.
Introduction Introduction 1. Front View INPUT MENU CH+ CHVOL+ VOLPOWER Main Power Switch Turn on/off the power supply. Remote Control window (Keep clear) Led Indicator 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off.
Introduction 2. Rear View AC Power IN 1 Service HDMI1 2 HDMI3 3 IN 5 4 Y Pb Pr L IN R IN VIDEO L IN R IN L R COAX Audio out 6 7 8 9 10 11 1). AC POWER IN: Connect to an earth 100-240V~ 50/60Hz outlet with the supplied power cable. 2). Service : For service use only. 3). HDMI1/2/3 : Connect it to the HDMI output of video device. 4). 5). 6). VIDEO : Connect it to video output of video device. L/R in : Connect them to audio output of video device. 7).
Introduction 3. Instruction for Wall Mount A wall mount kit (purchased separately) would allow you to mount your VIORE TV on the wall. For detailed information on installing the wall mount, refer to the instructions provided by the wall mount manufacturer. It is strongly recommended to contact a technician for professional assistance for wall mount installation. VIORE is not responsible for any damage to the product or injury to yourself or others resulting from the wall-mounting.
Introduction 4. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. INPUT: Press to display the input source menu. INPUT 1 2 3 4 5 6 7 8 9 0 -/-- PICTURE SOUND SLEEP DISPLAY CH+ VOL+ MUTE CH- VOLEXIT MENU OK CC Number Buttons: Choose channel directly.
Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3. Close the cover. - The remote control should be operated within 30 feet(7m) and 300 to the left and right of the IR receiver on the front of the LCD TV. - Used batteries should be disposed properly.
Basic Operation Power on/off 1. Connect to the power supply with the power cord and turn on the switch. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select TV Press INPUT button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or Ĥ0ĥ!button on remote control to select the input source, press OK button on the remote control to enter.
OSD Menu OSD Menu 1. Picture menu Description Picture mode: Select between Standard, Dynamic, Mild, SportsˈUser and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture. Color: Adjust color of the picture.
OSD Menu OSD Menu 2. Audio menu 12 6 Picture Audio Sound Mode Time Setup Lock Channel Flat Bass 50 Treble 50 Balance 50 Surround SPDIF Type Audio Language Select Off PCM English Move MENU Exit Description Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequency intensity. Treble: High frequency intensity.
OSD Menu OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time(Could only be activated in DTV mode): Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source directly.
OSD Menu OSD Menu 4. Setup menu Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position, H-Position, Clock, Phase or even perform an Auto adjustment.
OSD Menu OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Description ĥ Change password: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password. System Lock: Allow you to turn on or off the system lock. If deactivated, the functions described below don’t work. This option menu allows you to lock any TV channel or adjust the Movie rating filter.
OSD Menu OSD Menu 6. Channel menu Description Air/Cable: Allow you to select antenna between Air and Cable. If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. ĥ µ If you select “Cable” as input signal in Antenna item, allows you to select Cable System among: Auto, STD, IRC and HRC.
OSD Menu OSD Menu Show/Hide: Allow you to show or hide the channels. ĥ Use / ĥ button to highlight the desired item, then press OK button to show or hide the highlighted channel. ĥ Channel Label: Allow you to setup a label for the channel. Press / ĥ button to select the position of the table, and press words. ĥ DTV Signal: Show the quality of digital signal: good, Normal, Bad. 17 / ĥ Channel No.: Show and select the channel.
Simple Troubleshooting Simple Troubleshooting If the TV has failed or its performance has seriously deteriorated, check the TV by using the following simple troubleshooting guide. If you can not resolve the problem with this troubleshooting, please call VIORE Technical Support. No power - Check all power connections to the TV. - Make sure that Main Power Switch is On. - Press either the power button or the Standby button on the Remote control.
LCD Panel Input Connector Output Connector Panel Size 37 inch (diagonal) Brightness 500 cd/m2 Contrast 4000:1 Resolution 1920 x 1080 Video 1 Audio(L/R) 2 VGA 1 PC Audio 1 HDMI 3 YPbPr 1 RF 1 Audio out 1 Headphone 1 COAX 1 Power Source 100-240V~ 50/60Hz Maximum Power Consumption 150W * Product specifications and appearance are subject to change without notice.
VIORETM LIMITED WARRANTY FLAT PANEL TELEVISION This VIORE brand Product, as supplied and distributed by VIORE and delivered new in the original carton to the original purchaser is warranted by VIORE against manufacturing defects in materials and workmanship for a limited warranty period of one (1) year on parts and labor. However, there will be only a 90 day parts and labor limited warranty for commercial use.
VIORE, Inc.
