Dual mode Super High Resolution CCD sensor provides very great quality Colour images in low light conditions of 0.01 lux or above
and B/W images in low light conditions below 0.5 lux and in complete darkness with the addition of Infra Red lighting
Mechanical IR filter prevents focus shift in B/W mode
Ideal for use in difficult lighting scenes such as reading a cars numberplate when the headlights are on
Sony 1/4" Super HAD CCD image sensor for 550 TVL resolution images and 0.01 lux low light sensitivity
X-vision IXC1HQDN Digital Signal Processing (DSP) chip which has been optomised for internal or external viewing and features
Automatic Gain Control, Automatic Electronic Iris, Auto White Balance, Multi Zone Back Light Compensation, Low Smear, Edge
Enhancement, Zero Colour Rolling, Super Dynamic Range and Day/Night
3.25 to 88.0mm (1° to 78° viewing angle) Auto Iris Auto Focus lens with 27x Optical Zoom
10x Digital Zoom for extra detail, for a total combined optical/digital zoom of 270x
Pan Tilt function, for 360° panning and 120° tilting
Proportional control gives pan and tilt speeds from 0.3 to 120° per second, with presets responding at up to 120° per second
Auto panning function Auto flip function 64 Preset positions with Guard T
our function
RS485 (Pelco D or P protocol) control of Pan Tilt Zoom, Focus and Camera settings is possible, by any compatible DVR or Camera
Controller
Designed for wall mounting externally as supplied, however a full range of mounting equipment is available for mounting the unit
externally on a pole
, ceiling or corner, and internally on a ceiling (both surface and flush fitting)
1
Year Manufacturers Warranty
25

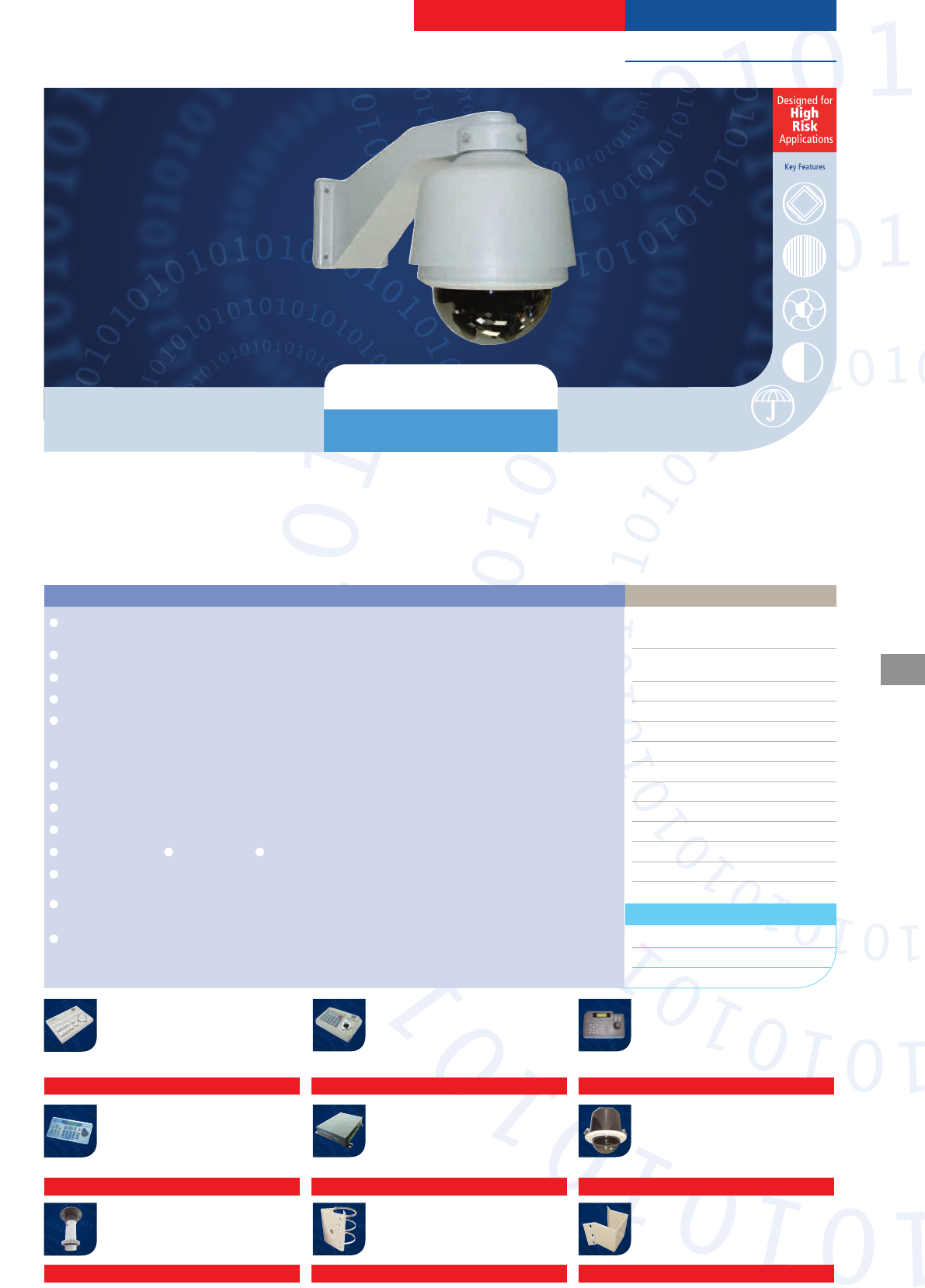

Speed Dome RangeModel: XSD27ZDN2
Features
T
he XSD27ZDN2 Colour Speed Dome with 270x Zoom is designed for use in high risk applications and can be panned, tilted and zoomed in seconds to
the view you require. Features pan tilt speeds of up to 120° per second and a 27x Optical+10x Digital (270x) Zoom Lens, Super Dynamic Range for
excellent performance when looking at difficult lighting scenes such as reading a cars numberplate when the headlights are on and Day/Night function
(with mechanical filter, which eliminates focus shift) for use in low light down to 0.01 lux and with Infra Red lamps. It offers super high resolution 550 TVL
images from its Sony 1/4" Super HAD CCD sensor and can be controlled by Pelco D or P compatible DVRs and Camera Controllers. Available with a
variety of brackets and housings the camera is designed for wall mounting externally as supplied and can also be ceiling mounted, corner mounted and
pole mounted externally and ceiling and flush mounted internally.
Colour 550 TVL Sony 1/4" Super HAD
CCD Speed Dome with 270x Zoom
XSD27ZDN2
550
T
VL
1-78°
Lens
0.01
Lux
Weather
Resistant
CCD
1
/4”
Specifications
P
icture
Type: Day/Night
(B/W & Colour)
Image Sensor: Sony 1/4” Super HAD
CCD
DSP: X-vision IXC1HQDN
Resolution:
550
TVL
Lens Viewing Angle: 1 to 78°
Infra Red Nightvision: Optional
Minimum Illumination: 0.01 Lux (0 lux with IR)
Audio: No
Operating Voltage: 12V DC 2000mA
Suggested Power Supply: 12V DC 3500mA
Mounting:
Wall/Ceiling
W
eatherproofing:
Yes
Dimensions (WxHxD): 51x44x62mm
Model: XSDCM
Ceiling Bracket
Allows the XSD27ZDN2 to be mounted on a
ceiling.
Model: XSDPM
P
ole Mount
Adaptor
Allows the XSD27ZDN2 to be mounted on a
pole
.
Model: XSDCB
Corner Mount Br
ack
et
Allows the XSD27ZDN2 to be mounted on the
corner of a building.
Model: XSD1DC
Controller
This following controller can be connected to up
to 64 cameras and will allow you to P
an,
T
ilt,
Zoom the XVISZCAMX.
Model: XSD2DC
Standard Contr
oller
The Standard Controller features a speed
sensitive joystick and will allow you to pan,
tilt,
zoom the camera, auto pan the camera, set up
and select presets and control the camera
settings
.
Model: XSD3DC
Advanced Controller
The Advanced Controller allows you to zoom the
camera by simply twisting the joystick clockwise
to zoom in and anti-clockwise to zoom out. It
will also let you setup a preset guard tour, and
will control up to 64 P
elco D & P cameras
.
Model: XDVR2PROKB
Model: XSD
A
8 Alarm Input Interface
Allows the connection of up to 8 alarm inputs
(such as PIR movment sensors) to the Speed
Dome. Each alarm input can be set to trigger a
different preset position.
Model: XSDFM2
Internal Flush Mount Housing
Allows the camera to be flush mounted in to a
suspended ceiling. Makes the camera more
attractive and allows it to blend in and look less
obtrusive
.
Speed Dome/DVR Controller
Can control up to 223 Speed Domes, connected
to DVR and Speed Domes by RS485 cable. The
unit features a 3D Joystick which can control
pan tilt and zoom and can control all features
.
