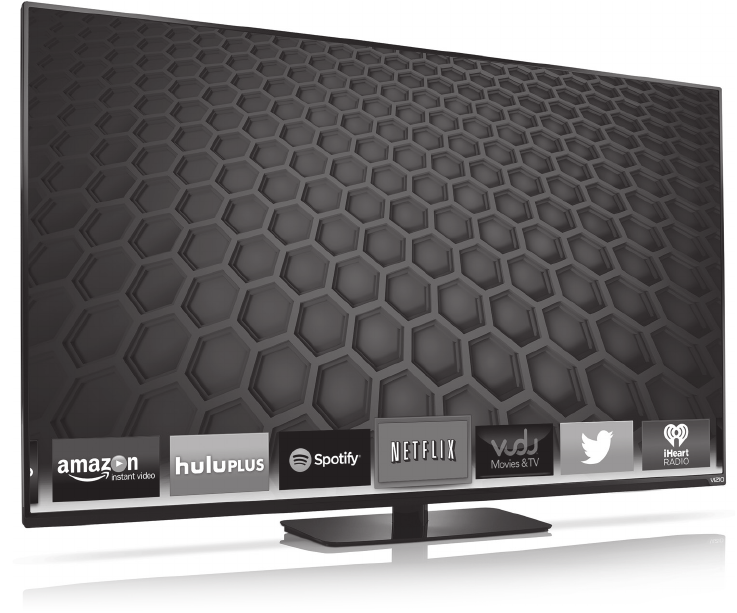

VIZIO QUICK START GUIDE Model: E600i-B3 & E700i-B3
IMPORTANT SAFETY INSTRUCTIONS Your TV is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your TV from being damaged, the following instructions should be observed for the installation, use, and maintenance of your TV. Read the following safety instructions before operating your TV. Keep these instructions in a safe place for future reference.
TELEVISION ANTENNA CONNECTION PROTECTION Ground Clamp Antenna Lead In Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Electric Service Equipment • If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.
Do You Have Questions? Find Answers At SUPPORT.VIZIO.COM Find help with: • New Product Setup • Connecting Your Devices • Technical Problems • Product Updates • And More Live Chat Support Available Your can also contact our award-winning support team at: Phone: (877) 698-4946 (TOLL-FREE) Email: techsupport@VIZIO.
PACKAGE CONTENTS VIZIO LED HDTV with Stand Power Cord Remote Control with Batteries This Quick Start Guide 3 x M5 16mm Phillips Screws
USING THE REMOTE APP LAUNCHER Quickly launch the pictured app. INPUT Change the currently-displayed input. A/V CONTROLS Control USB media player. CLOSED CAPTIONS Turn closed captions on and off. EXIT Close the on-screen menu. BACK Go to the previous on-screen menu. HOT KEYS Perform functions within an on-screen menu or app. VOLUME UP/DOWN Increase or decrease loudness of the audio. MUTE Turn the audio off or on. NUMBER PAD Manually enter a channel. WIDE Switch the display mode.
INSTALLING THE BASE 11 2 It is recommended that two people take part in the base installation. Align the base with the neck, making sure the tabs are properly inserted. Place the TV screen-down on a clean, flat surface. To prevent scratches or damage to the screen, place the TV on a soft surface, such as carpet, rug, or blanket. Insert three (3) M5 16mm Phillips screws (included) and tighten them using a Phillips screwdriver to secure the base to the TV.
FIRST-TIME SETUP 1 Connect all of your devices first. Choose ONE connection type for each device. White Red Red Red Blue White Yellow Green Match colored connectors to colored ports. BACK OF TV Note: The image shown here is for illustrative purposes only and may be subject to change. The actual number of ports and their locations may vary, depending on the model.
HDMI CABLE* • DIGITAL • HD VIDEO (1080p)† • HD AUDIO BEST COMPONENT CABLE* BETTER • ANALOG • HD VIDEO (1080i)† • STEREO AUDIO Commonly-Connected Devices: Cable or Satellite Boxes Match colored connectors to colored ports. COAXIAL CABLE* • ANALOG • HD VIDEO (1080i)† • STEREO AUDIO AV CABLE* • ANALOG • VIDEO (480i)† • STEREO AUDIO BETTER GOOD Match colored connectors to colored ports.
2 3 Back of TV Ethernet Cable Remove the battery cover by pressing gently on the V logo and sliding away from the remote. Insert the included batteries. Gently slide the battery cover back into place. If you have a high-speed internet connection, connect an Ethernet cable from your modem or router to the back of the TV as shown. For the best Smart TV experience, VIZIO recommends using an Ethernet cable. However, your TV also has built-in Wi-Fi.
4 5 Choose your mode. Select Store Demo for in-store display. Select Home Use for in-home use. Seleccione "Home Use" por Modo de Casa o "Store Demo" por Demostración de Tienda. Choisissez "Home Use" pour Mode Domicile ou "Store Demo" pour Démonstration de Magasin. Store Demo Connect the power cord to the back of the TV. The flat edge of the connector goes toward the inside of the TV. Home Use Turn the TV on by pressing the Power button on the remote. The Setup App is displayed.
CONNECTING TO THE INTERNET WITH WIFI 1 2 VIZIO VIZIO If you have already set up a wireless connection during the first-time setup, you can skip this section.
3 Highlight the name of your wireless network (this is the network’s SSID) and press OK. If you do not see your SSID, you will need to enter it manually by selecting Hidden Network. For more information, see the TV’s User Manual. Using the on-screen keyboard, enter your network’s password, then highlight Connect and press OK. If you are having trouble connecting to your network, check your router placement.
VIEWING THE ON-SCREEN USER MANUAL 1 2 VIZIO TV SETTINGS Picture Wide Zoom Normal Exit 2D 3D Audio MENU Button Timers Network Tuner CC Closed Captions Devices ABC System Guided Setup User Manual Press the MENU button on the remote control to display the SETTINGS menu. User Manual Input Wide CC Sleep Timer Picture Audio Network Settings Help Highlight User Manual and press OK.
USER MANUAL LED HDTV WITH VIZIO INTERNET APPS PLUS® USER YOUR REMOTE PAGE NUMBER 1 OF 53 To skip to page, use Number Pad, Open TV Menu then press OK.
GETTING STARTED WITH VIZIO INTERNET APPS PLUS® VIZIO Internet Apps Plus® (V.I.A. Plus) delivers popular online content to your TV. V.I.A. Plus features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand. A high-speed Internet connection is required to receive product updates and to access online content. Press the OK button to launch an App. Press the Left/Right Arrow buttons to scroll through the Apps on the dock.
The fullscreen V.I.A. Plus Apps window allows you to add and store apps. The Apps on the first page are displayed in the Dock and Apps on additional pages can be moved to the Dock. Press the V Button twice to launch the fullscreen V.I.A. Plus Apps window. My Apps Features the apps installed on your TV. App Tabs Browse through apps on these tabs and add them to your My Apps tab. Installed Apps The Apps displayed here are also available in the V.I.A. Plus App Dock.
VIZIO RECOMMENDS S2121w-D0 2.1 Channel Sound Stand with Integrated Subwoofer Introducing an evolution in home theater and compact, versatile design that delivers booming audio where there isn’t room for a sound bar. With outstanding audio performance and a built-in subwoofer, the VIZIO 21” 2.1 Sound Stand is the perfect and convenient audio upgrade for TVs up to 55 inch class in traditional media cabinets or any room in the house. Available at www.VIZIO.
VIZIO RECOMMENDS BRING HOME THE MOVIE THEATER EXPERIENCE 42” 5.1 HOME THEATER SOUND BAR WITH WIRELESS SUB & SATELLITE SPEAKERS For the pinnacle of surround sound immersion and convenience, the VIZIO S4251w 5.1 Sound Bar sets the bar exceptionally high. Designed to fit any medium to large sized HDTV, this sound bar comes with a wireless subwoofer, rear satellite speakers and is packed with the latest in Dolby and DTS audio technology.
HELP TOPICS How do I return to the Setup App? • The on-screen menu has guided setup. Press MENU > Guided Setup. Select the type of setup you need and press OK. The Setup App begins. • To reset the TV to factory defaults, press MENU > System > Reset & Admin > Reset TV to Factory Defaults. If you have changed the default Parental Control Passcode, enter it now. Select Reset. Remember that all of your settings will be lost. There is a picture, but there is no sound.
LEGAL / COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
LIMITED WARRANTY - CANADA ONE-YEAR LIMITED WARRANTY ON PARTS AND LABOR Covers units purchased as new in Canada VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use.
LIMITED WARRANTY - MEXICO ONE-YEAR LIMITED WARRANTY ON PARTS AND LABOR ZERO BRIGHT PIXEL DEFECT GUARANTEE Covers units purchased as new in Mexico Only. This policy covers “zero bright pixel” defects for the duration of the limited “ONE YEAR WARRANTY” on select new product purchases. To determine if this guarantee applies to your product, refer to the “DETAILS” tab of the model’s product information page www.VIZIO.mx or look for the “zero bright pixel” guarantee on the box.
