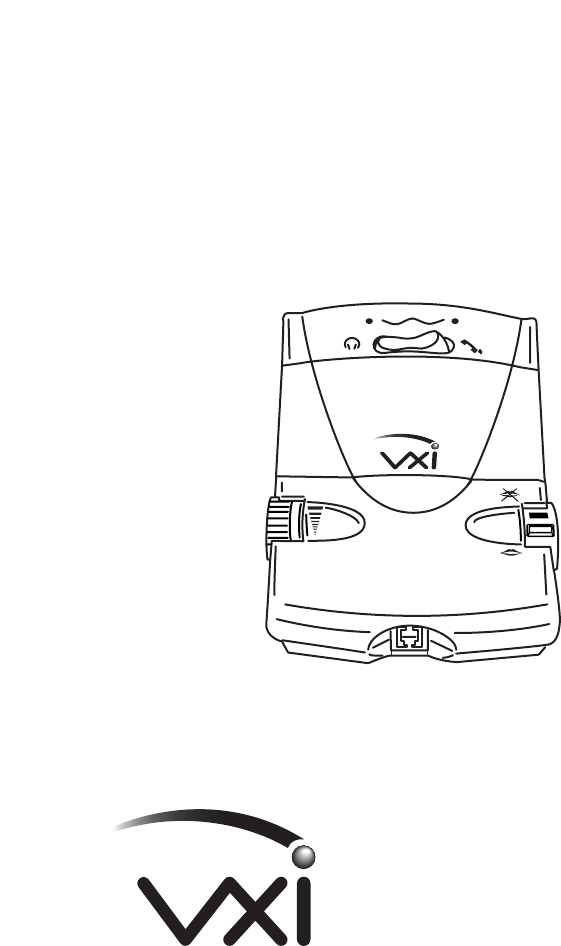

TuffSet Powerline Amplifier VXI Corporation One Front Street, Rollinsford, NH 03869 603-742-2888 1-800-742-8588 email: tuffset@vxicorp.com website: www.vxicorp.
VXI TuffSet Powerline Amplifier – Instruction Guide 2
VXI TuffSet Powerline Amplifier – Instruction Guide COMPONENTS 1 2 3 4 4 7 6 1. Headset Stand 2. Top Door 3. Headset/Handset Switch 4. Compatibility Switches 5. Microphone Volume Control 6. Mute Switch 7. Receive Volume Control 8. Headset Port 9. To Phone Line Jack on Phone 5 8 10. Optional AC Adapter Port - Use only Listed Direct Plug-In Power Unit marked “Class 2” and rated 9 VDC 100 mA. 11. To Handset Jack on Phone 12.
VXI TuffSet Powerline Amplifier – Instruction Guide STEP 2: STEP 1: Connect the Cords- Follow instructions below for your phone type. Connection for Electronic Phones (Figure 1) 1. Disconnect your telephone cord from the back of your telephone and insert it into the Wall Line Jack . This jack will accept both 8-position and 6-position modular plugs.
VXI TuffSet Powerline Amplifier – Instruction Guide STEP 4: STEP 6: Setting the Mute Switch Place a Call To activate the headset microphone, rotate the mute switch forward so the green box on the switch is showing (Figure 5). Note: If the red box on the switch is showing, your microphone will be muted. Adjust microphone volume until the other party can hear you clearly and hear minimal background noise (Figure 7).
VXI TuffSet Powerline Amplifier – Instruction Guide Troubleshooting Why can’t I hear callers? • Check if all cords are connected • Adjust receive volume control on amplifier • Adjust compatibility switches Why can’t callers hear me? • Make sure mute switch on telephone or amplifier is not turned on • Make sure microphone is positioned correctly. See your headset instructions that are included with your headset • Adjust microphone volume control • Adjust compatibility switches LIMITED WARRANTY 1.
VXI TuffSet Powerline Amplifier – Instruction Guide 7
VXI TuffSet Powerline Amplifier – Instruction Guide P/N 200911B VXI Corporation One Front Street, Rollinsford, NH 03869 603-742-2888 1-800-742-8588 http://www.vxicorp.
