Data Sheet

Properties Test conditions
Value
Unit
min. typ. max.
Peak Wavelength 20 mA λ
Peak
572 nm
Dominant Wavelength 20 mA λ
Dom
570 nm
Luminous Intensity 20 mA I
V
12 40 mcd
Forward Voltage 20 mA V
F
2 2.4 V
Spectral Bandwidth 20 mA Δλ 15 nm
Reverse Current 5 V I
REV
10 µA
Viewing Angle Phi 0° 20 mA 2θ
50%
140 °

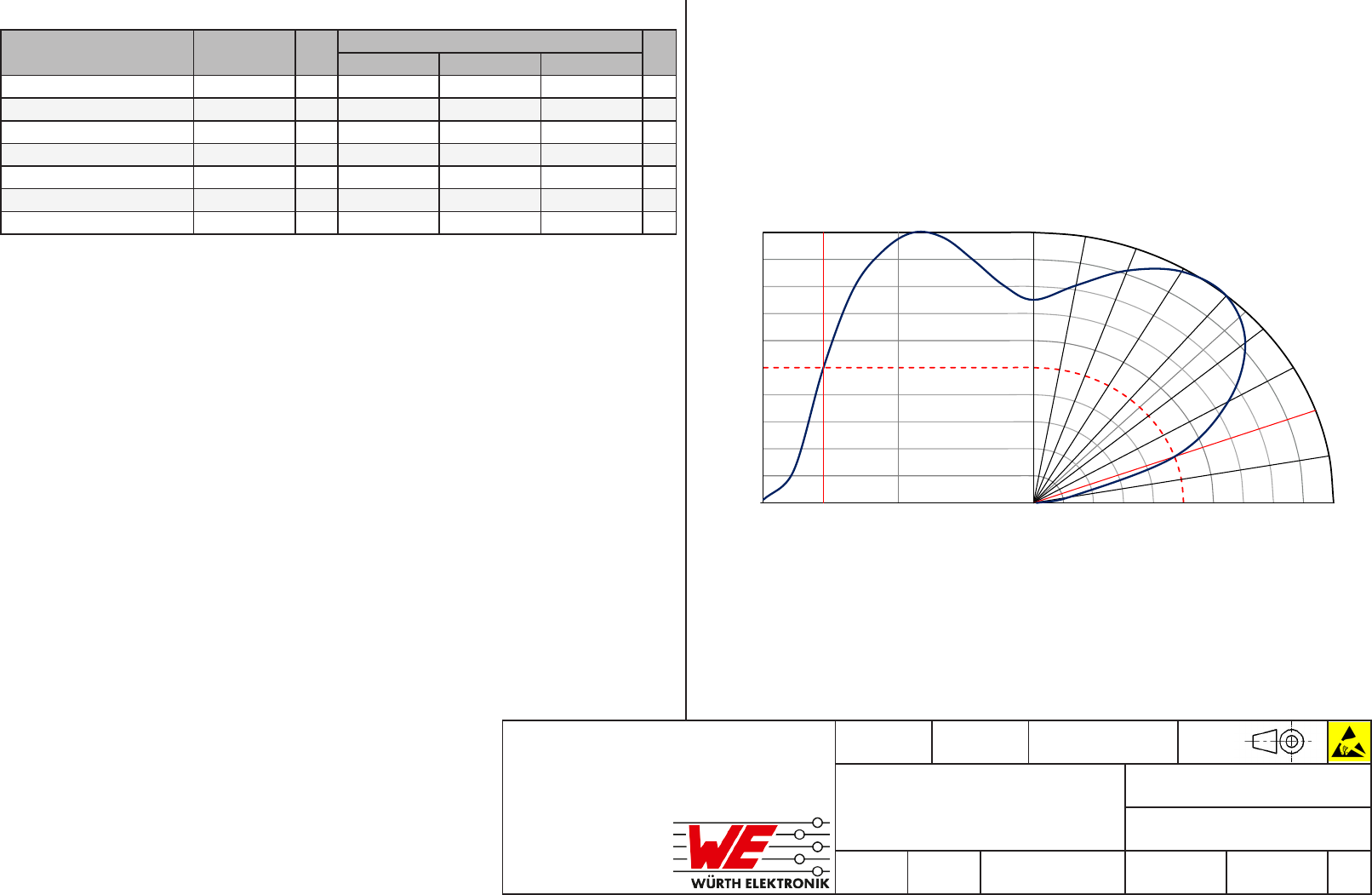

Electrical & Optical Properties: Viewing Angle:
45°
100
100
90
90
80
80
70
70
60
60
50
50
40
40
30
30
20
20
10
100
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
-45-90
-70°
Relative Luminous Intensity (%)
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. [phone] - 0
www.we-online.com
[e-mail]
CREATED CHECKED GENERAL TOLERANCE PROJECTION
METHOD
KaS PLD DIN ISO 2768-1m
DESCRIPTION
WL-SMCW SMD Mono-color Chip
LED Waterclear
ORDER CODE
150080VS75000
SIZE REVISION STATUS DATE (YYYY-MM-DD) BUSINESS UNIT PAGE
0805
002.008 Valid 2017-12-01 eiPal 2/8
