Table Of Contents

1 2 3 4 5

SIZE

REV DATE FILE BY

H 20-JUN-11 COPLANARITY GG

APPROVAL: GMo

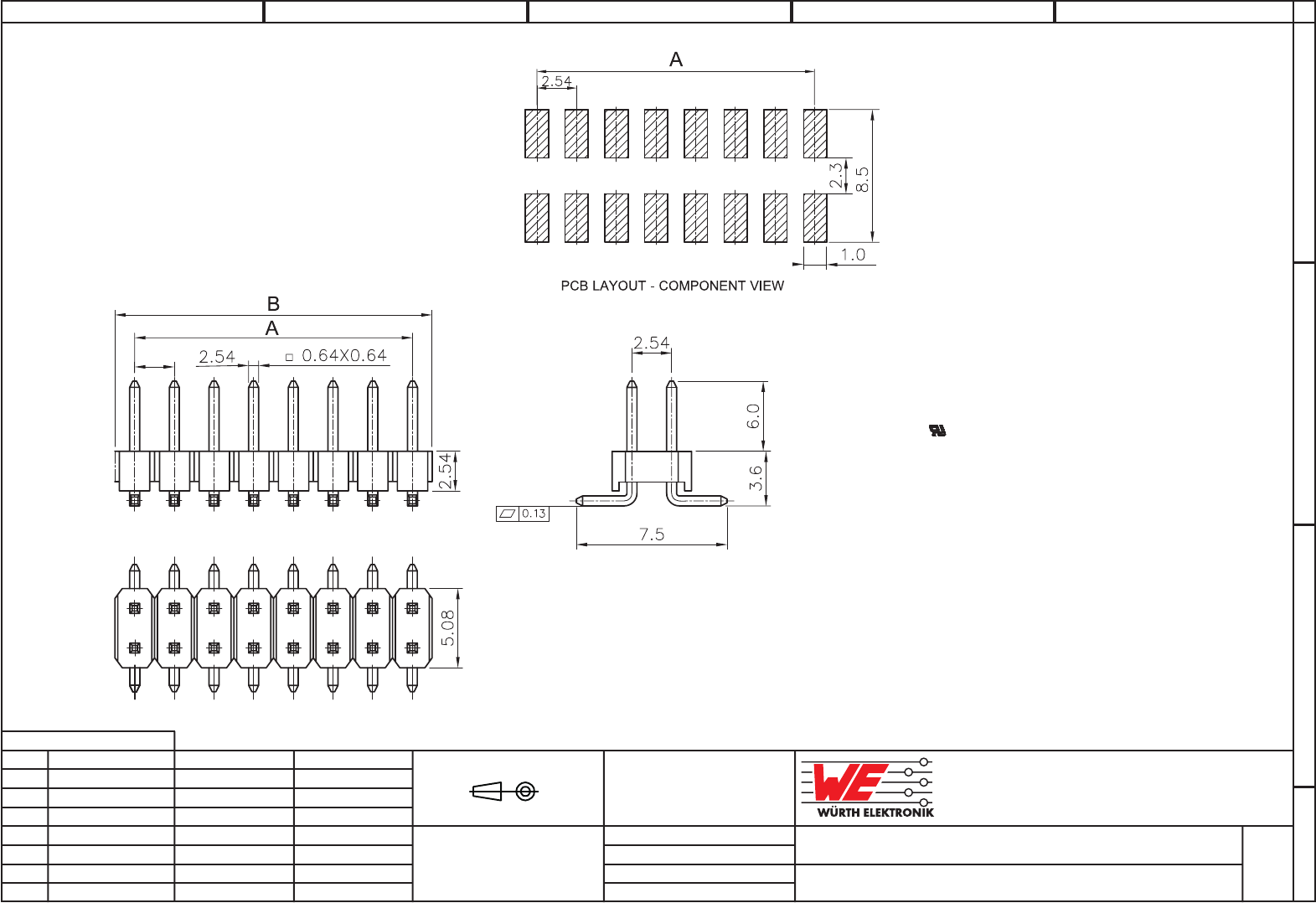

UNIT: MM DESCRIPTION: 2.54MM DUAL SMT PIN HEADER

SCALE:

SHEET: 1/3 WERI PART NO: 610 0xx 211 21

DRAW: PEARL

PROJECTION: GENERAL TOLERANCE

.X =

0.2

.XX =

0.15

RoHS Compliant

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PA 6T

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: GOLD

QUALITY CLASS: 3 AS PER CECC 75 301-802

PITCH: 2.54 MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 125°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3 A

WORKING VOLTAGE: 250 V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRI

C WITHSTANDING VOLTAGE: 500

V AC/MN

CONTACT RESISTANCE: 20 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE REFLOW SOLDERING

PACKAGING

TUBE

DIMENSION

A = 2.54x (NB. PIN / 2 - 1)

B = 2.54x (NB. PIN / 2)

I 03-NOV-11 PINNING GG

18-APR-16 TPK AK

10-MAY-16 TPK AK

FLAMMABILITY RATING: UL94-V0

Summary of content (3 pages)

PAGE 1
2 3 4 5 TECHNICAL CHARACTERISTICS MATERIAL INSULATOR: PA 6T FLAMMABILITY RATING: UL94-V0 COLOR: BLACK CONTACT MATERIAL: COPPER ALLOY CONTACT TYPE: STAMPED CONTACT PLATING: GOLD QUALITY CLASS: 3 AS PER CECC 75 301-802 PITCH: 2.
PAGE 2
1 2 3 4 5 A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: GMo B DESCRIPTION: 2.
PAGE 3
1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.
