INSTALLATION INSTRUCTION
AC-LED Undercabinet Bar Light
BA-ACLED8, BA-ACLED12, BA-ACLED18, BA-ACLED24, BA-ACLED30
WARNING
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local
regulations.
• Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or
switch “OFF” the circuit breaker switch(es) that control the power to the xture or room that you are working on.
• Place the wall switch in the “OFF” position.
ADVERTISSEMENT
IMPORTANT: Coupez l’électricité avant TOUTE manipulation.
• Lisez toutes les instructions avant d’installer.
• Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et
les règlements locaux.
• Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en
position d’arrêt (« OFF »).
• Placez l’interrupteur mural en position d’arrêt (« OFF »).

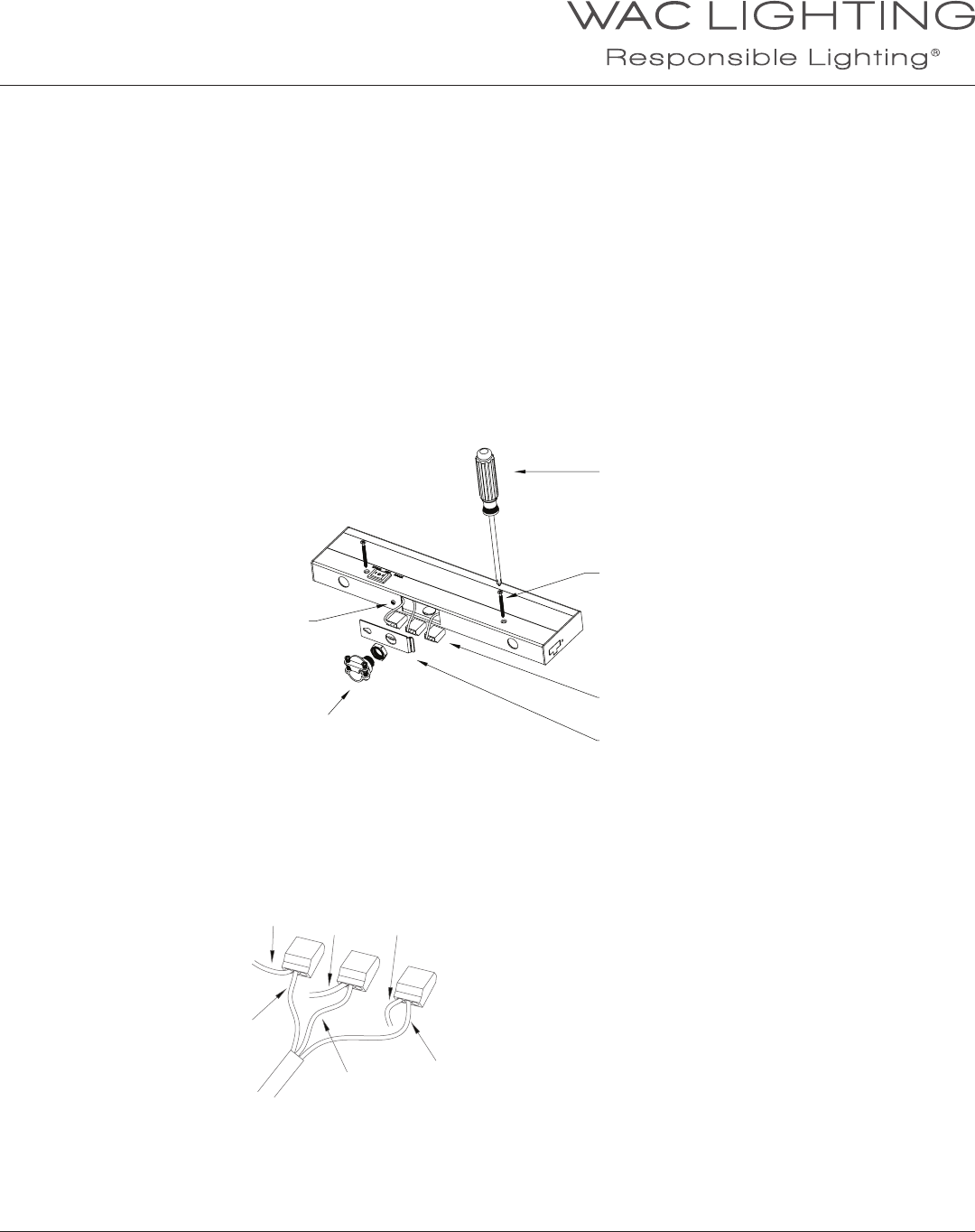

Screw Driver
Mounting Screw
Poke-home Connector
Side Door
Non-metallic Sheathed Cable
Round Screw
Fig.1 Installation and Wiring
(BA-ACLED12)
WIRING AND INSTALLATION
1. Pry open the knock out hole on the side door to install the input wires.
2. Unscrew round screw and remove the side door from window by sliding it to the side.
3. Install the Non-metallic sheathed cable/BX connector into the side door.
4. Push 120V input wires through the Non-metallic sheathed cable.
5. Strip 3/8” insulation o 120V input wires. Connect input wires to LED light bars using convenient “poke-home” connectors provided with
LED light bars. Push 120V input wires rmly into “poke-home” connectors for secure connections.
6. Tuck wires connections neatly into LED light bar.
7. Install the side door onto xture and tighten round screw.
8. Take out two mounting screws from the package.
9. Screw the mounting screws through holes on the xture.
10. Place xture in appropriate place and tighten mounting screws.
Black
Green
White
Green
Black
White
Fig.2 Input Wire
Connect black input wire to black xture wire.
Connect white input wire to white xture wire.
Connect green ground wire (may be bare copper)
to green xture wire.
