Data sheet | Item number:231-302/026-000

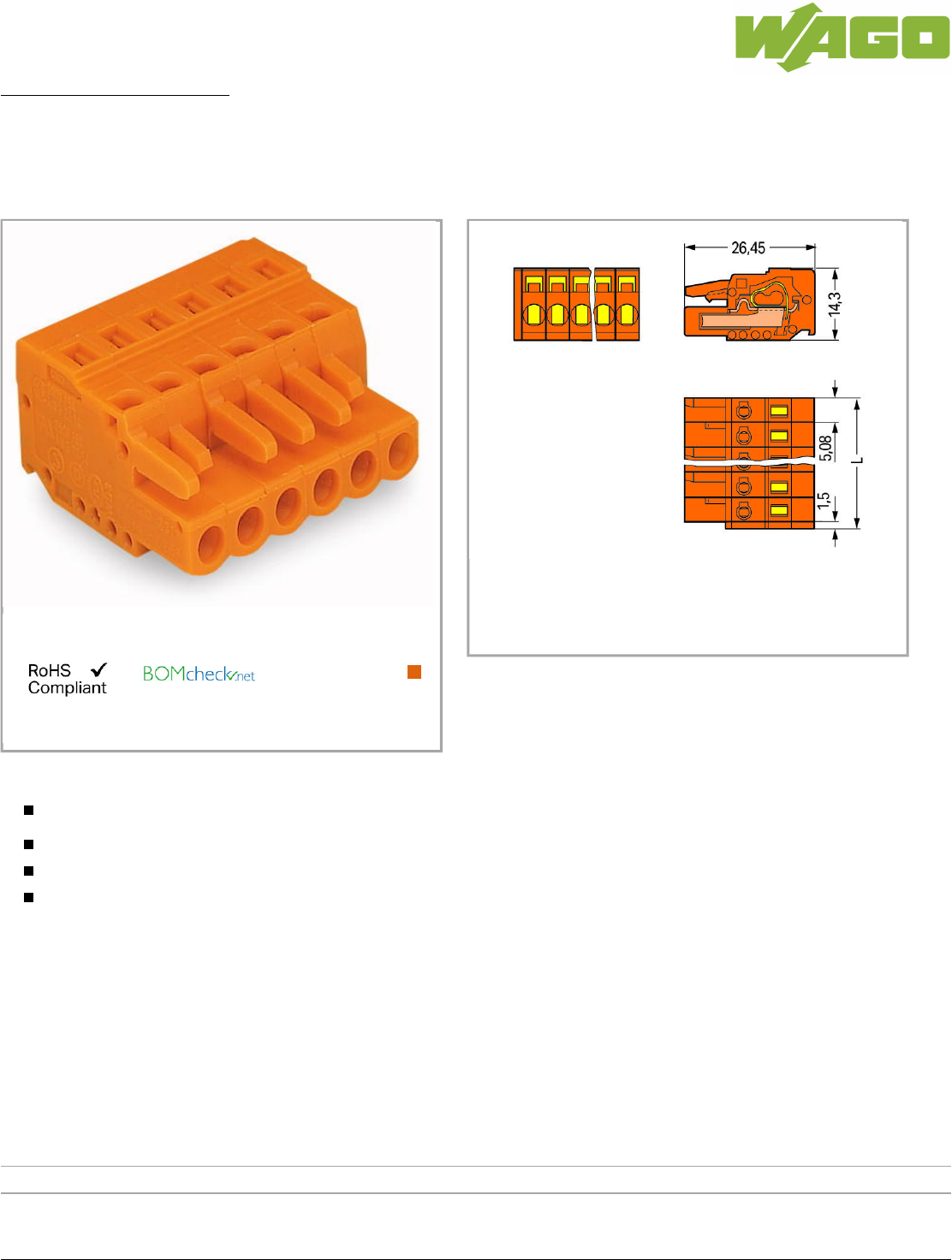

1-conductor female plug; 2.5 mm²; Pin spacing 5.08 mm; 2-pole

www.wago.com/231-302/026-000

06.12.2018Page /1 8

L = (pole no. x pin spacing) + 1.5mm

2- to 3-pole female connectors – one latch only

Color:

Item description

Universal connection for all conductor types

Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation

Integrated test ports

With coding fingers

Gold-plated or Other variants can be requested via the WAGO sales department or, if necessary, configured at https://configurator.wago.com/:

partially gold-plated contact surfaces

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 320 V

Rated impulse voltage (III / 3) 4 kV

Rated voltage (III / 2) 320 V

Summary of content (8 pages)

PAGE 1
Data sheet | Item number: 231-302/026-000 1-conductor female plug; 2.5 mm²; Pin spacing 5.08 mm; 2-pole www.wago.com/231-302/026-000 L = (pole no. x pin spacing) + 1.
PAGE 2
Data sheet | Item number: 231-302/026-000 www.wago.
PAGE 3
Data sheet | Item number: 231-302/026-000 www.wago.com/231-302/026-000 Plug connection Contact type (pluggable connector) Female connector/socket Connector connection type for conductors Mismating protection No Material Data Color orange Material group I Insulating material Polyamide 66 (PA 66) Flammability class per UL94 V0 Clamping spring material Chrome nickel spring steel (CrNi) Contact material Copper alloy Contact plating tin-plated Fire load 0.058 MJ Weight 3.
PAGE 4
Data sheet | Item number: 231-302/026-000 www.wago.com/231-302/026-000 UL-Approvals Logo Approval Certificate name UL UL International Germany GmbH E45171 UR Underwriters Laboratories Inc. E45172 Compatible products Jumper Item no.: 231-902 Comb-style jumper bar; for 5 mm and 5.08 mm pin spacing; reduces conductor size to 1.5 mm www.wago.com/231-902 Item no.: 231-903 Comb-style jumper bar; 3-way; suitable for 231 Series female connectors; with 5 mm pin spacing; insulated www.wago.
PAGE 5
Data sheet | Item number: 231-302/026-000 www.wago.com/231-302/026-000 Item no.: 231-291 Operating tool; for male and female connectors with CAGE CLAMP®; loose www.wago.com/231-291 Item no.: 280-432 Operating tool; of insulating material; 2-way www.wago.com/280-432 Item no.: 280-433 Operating tool; of insulating material; 3-way www.wago.com/280-433 Item no.: 280-434 Operating tool; of insulating material; 4-way www.wago.com/280-434 Item no.
PAGE 6
Data sheet | Item number: 231-302/026-000 www.wago.com/231-302/026-000 Item no.: 216-132 Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated Item no.: 216-141 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 1/08.92 www.wago.com/216-132 www.wago.com/216-141 Item no.: 216-142 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated; electrolytic copper; gastight www.wago.
PAGE 7
Data sheet | Item number: 231-302/026-000 www.wago.com/231-302/026-000 crimped; acc. to DIN 46228, Part 4/09.90 Item no.: 216-262 Ferrule; Sleeve for 0.75 mm² / AWG 20; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90 www.wago.com/216-262 Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90 www.wago.com/216-263 Item no.
PAGE 8
Data sheet | Item number: 231-302/026-000 www.wago.com/231-302/026-000 Downloads smartDATA CAD data 3D Download 231-302/026-000 URL Download Subject to changes. WAGO Kontakttechnik GmbH & Co. KG Hansastr. 27 32423 Minden Phone: +49571 887-0 | Fax: +49571 887-169 Email: info.de@wago.com | Web: www.wago.com Do you have any questions about our products? We are always happy to take your call at +49 (571) 887-44222. 06.12.
