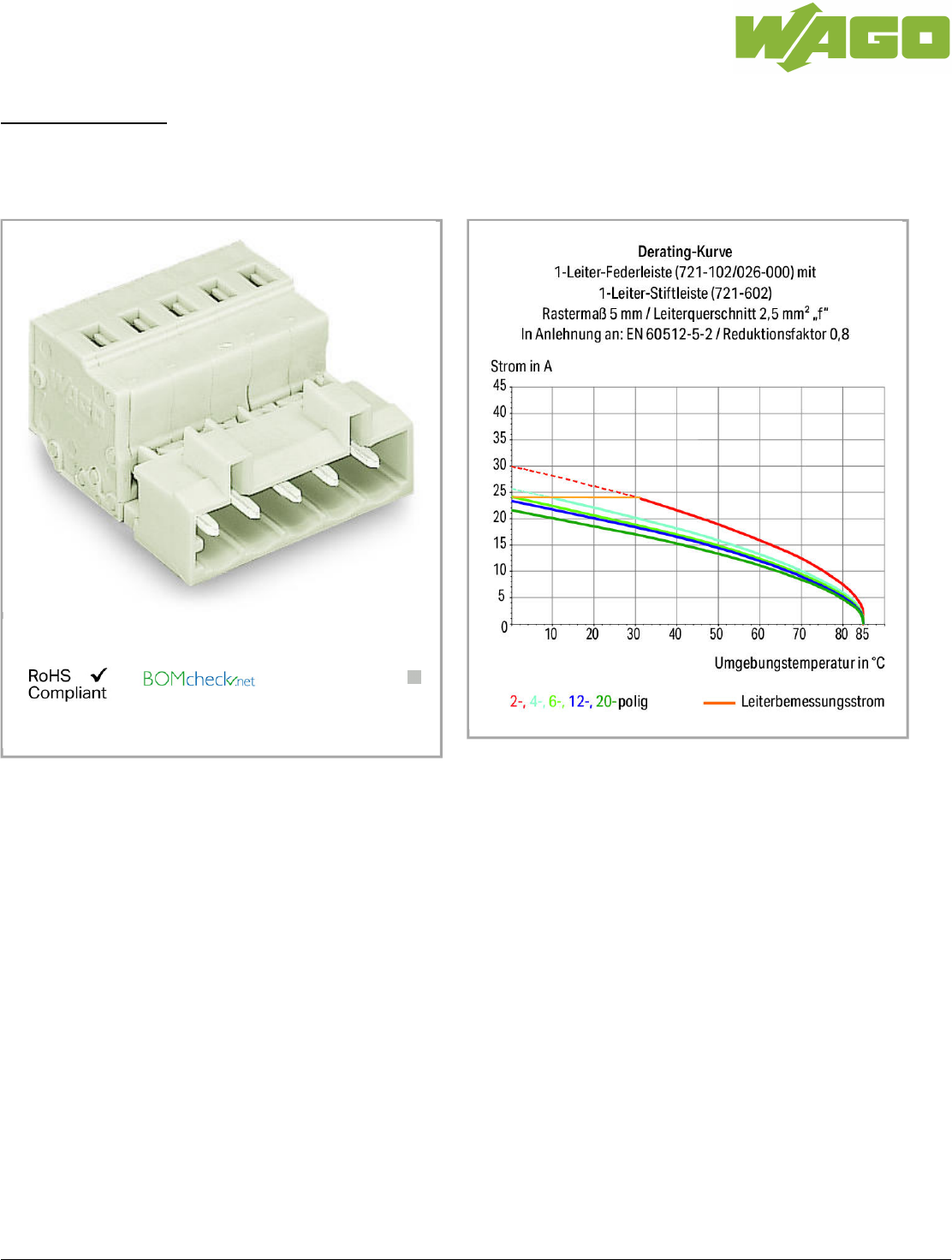

Data sheet | Item number: 721-603 1-conductor male connector; 100% protected against mismating; 2.5 mm²; Pin spacing 5 mm; 3-pole www.wago.com/721-603 Color: 06.12.
Data sheet | Item number: 721-603 www.wago.com/721-603 L = (pole no. – 1) x pin spacing + 8.2 mm L2 = L – 1.7 mm L3 = L – 1.
Data sheet | Item number: 721-603 www.wago.
Data sheet | Item number: 721-603 www.wago.com/721-603 Connector connection type for conductors Mismating protection Yes Material Data Color light gray Material group I Insulating material Polyamide 66 (PA 66) Flammability class per UL94 V0 Clamping spring material Chrome nickel spring steel (CrNi) Contact material Electrolytic copper (Ecu) Contact plating tin-plated Fire load 0.091 MJ Weight 4.
Data sheet | Item number: 721-603 www.wago.com/721-603 Det Norske Veritas, Germanischer Lloyd UL-Approvals Logo Approval Certificate name UL UL International Germany GmbH E45172 UR UL International Germany GmbH E45171 Compatible products Jumper Item no.: 231-902 Comb-style jumper bar; for 5 mm and 5.08 mm pin spacing; reduces conductor size to 1.5 mm www.wago.com/231-902 Item no.
Data sheet | Item number: 721-603 www.wago.com/721-603 Item no.: 231-159 Operating tool; for male and female connectors with CAGE CLAMP®; of Series 231, 232, 721, 722, 723, 731, 732 www.wago.com/231-159 Item no.: 231-231 Combination operating tool; for male and female connectors with CAGE CLAMP® www.wago.com/231-231 Item no.: 231-291 Operating tool; for male and female connectors with CAGE CLAMP®; loose www.wago.com/231-291 Item no.: 280-432 Operating tool; of insulating material; 2-way www.wago.
Data sheet | Item number: 721-603 www.wago.com/721-603 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated www.wago.com/216-102 Item no.: 216-103 Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated www.wago.com/216-103 Item no.: 216-104 Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated www.wago.com/216-104 Item no.: 216-106 Ferrule; Sleeve for 2.5 mm² / AWG 14; uninsulated; electro-tin plated www.wago.com/216-106 Item no.
Data sheet | Item number: 721-603 www.wago.com/721-603 Item no.: 216-204 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated www.wago.com/216-204 Item no.: 216-221 Ferrule; Sleeve for 0.5 mm² / AWG 22; insulated; electro-tin plated www.wago.com/216-221 Item no.: 216-222 Ferrule; Sleeve for 0.75 mm² / AWG 20; insulated; electro-tin plated www.wago.com/216-222 Item no.: 216-223 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated www.wago.com/216-223 Item no.
Data sheet | Item number: 721-603 www.wago.com/721-603 Item no.: 231-671 Insulation stop; 0.25 - 0.5 mm² www.wago.com/231-671 Item no.: 231-672 Insulation stop; 0.75 - 1 mm² www.wago.com/231-672 Downloads smartDATA CAD data 3D Download 721-603 URL Download Subject to changes. WAGO Kontakttechnik GmbH & Co. KG Hansastr. 27 32423 Minden Phone: +49571 887-0 | Fax: +49571 887-169 Email: info.de@wago.com | Web: www.wago.
