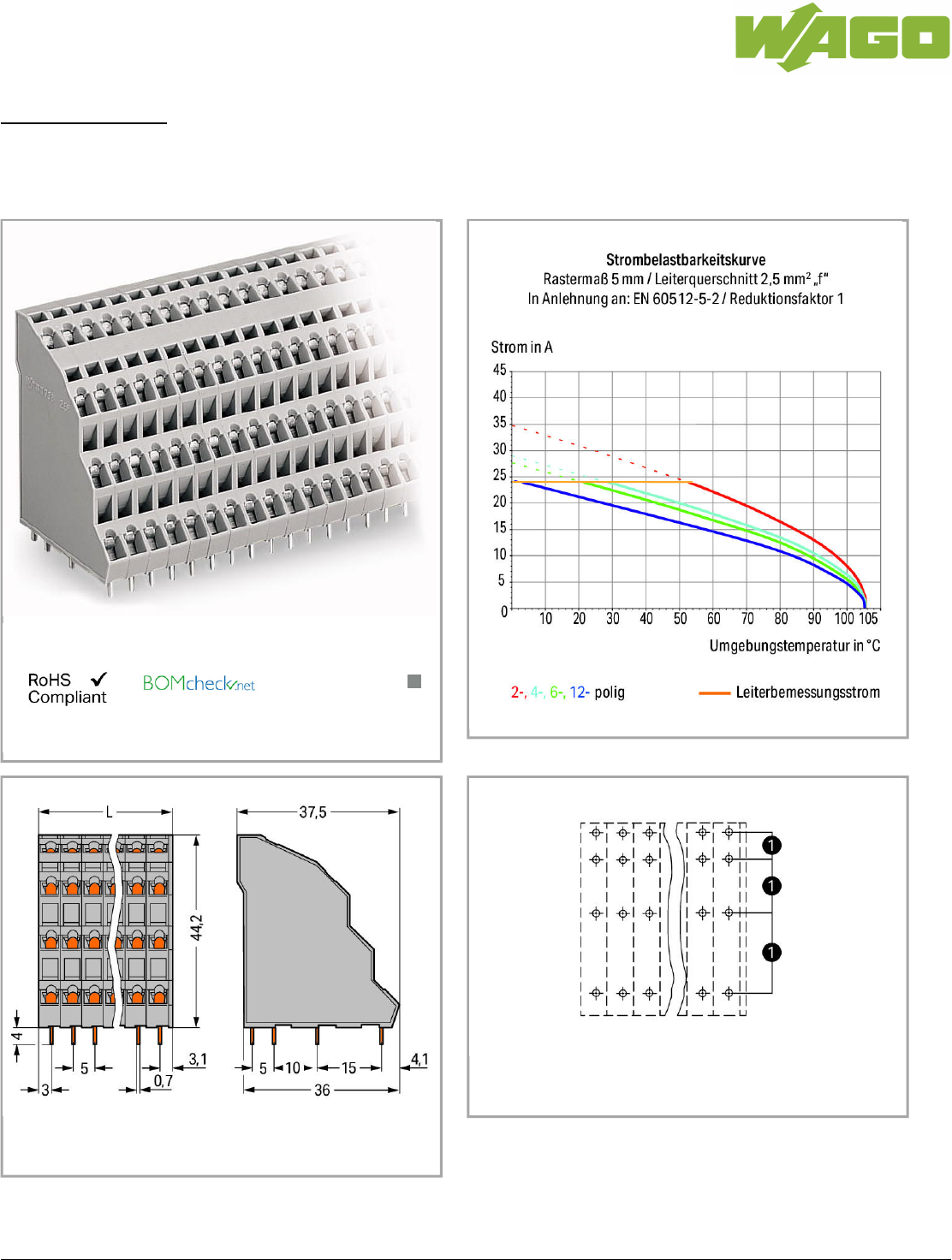

Data sheet | Item number: 738-106 Quadruple-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 4 x 6-pole; CAGE CLAMP® www.wago.com/738-106 Color: (1) Solder pins in a row L = (pole no. x pin spacing) + 1 mm Item description 06.12.
Data sheet | Item number: 738-106 www.wago.com/738-106 Item description PCB terminal strips with screwdriver-actuated CAGE CLAMP® High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas Angled conductor entry and CAGE CLAMP® actuation streamline operation Custom marking for all termination levels Other variants can be requested via the WAGO sales department or, if necessary, configured at https://configurator.wago.
Data sheet | Item number: 738-106 www.wago.com/738-106 Rated voltage CSA (Use Group B) 300 V Rated current CSA (Use Group B) 10 A Rated voltage CSA (Use Group D) 300 V Rated current CSA (Use Group D) 10 A Connection data Connection technology CAGE CLAMP® Actuation type Operating tool Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG Fine-stranded conductor 0.08 … 2.5 mm² / 28 … 12 AWG Fine-stranded conductor with ferrule with plastic collar 0.25 … 1.
Data sheet | Item number: 738-106 www.wago.com/738-106 Clamping spring material Chrome nickel spring steel (CrNi) Contact material Electrolytic copper (Ecu) Contact plating tin-plated Fire load 0.508 MJ Weight 36.699 g Environmental Requirements Limit temperature range -60 … +105 °C Commercial data Country of origin PL GTIN 4045454161910 Customs Tariff No.
Data sheet | Item number: 738-106 www.wago.com/738-106 Compatible products Marking accessories Item no.: 210-332/500-202 www.wago.com/210-332 Marking strips; as a DIN A4 sheet; MARKED; 1-16 (160x); Height of marker strip: 3 mm; Strip length 182 /500-202 mm; Horizontal marking; Self-adhesive Item no.: 210-332/500-204 Marking strips; as a DIN A4 sheet; MARKED; 17-32 (160x); Height of marker strip: 3 mm; Strip length 182 mm; Horizontal marking; Self-adhesive www.wago.com/210-332 /500-204 Item no.
Data sheet | Item number: 738-106 www.wago.com/738-106 Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 1/08.92 www.wago.com/216-141 Item no.: 216-142 Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 1/08.92 www.wago.com/216-142 Item no.
Data sheet | Item number: 738-106 www.wago.com/738-106 crimped; acc. to DIN 46228, Part 4/09.90 Item no.: 216-263 Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight crimped; www.wago.com/216-263 acc. to DIN 46228, Part 4/09.90 Item no.: 216-264 Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight crimped; acc. to DIN 46228, Part 4/09.90 www.wago.com/216-264 Item no.: 216-284 Ferrule; Sleeve for 1.
Data sheet | Item number: 738-106 www.wago.com/738-106 Subject to changes. WAGO Kontakttechnik GmbH & Co. KG Hansastr. 27 32423 Minden Phone: +49571 887-0 | Fax: +49571 887-169 Email: info.de@wago.com | Web: www.wago.com Do you have any questions about our products? We are always happy to take your call at +49 (571) 887-44222. 06.12.
