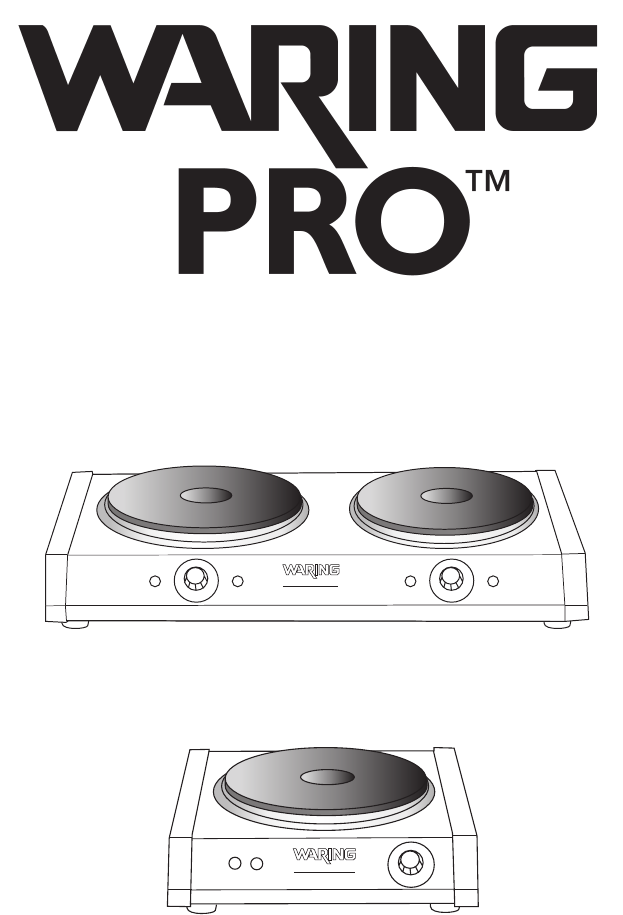

PROFESSIONAL EXTRA BURNERS PROFESSIONAL READY DOUBLE BURNER ON READY ON DB60 PROFESSIONAL READY ON EXTRA BURNER SB30 For your safety and continued enjoyment of this product, always read the instruction book carefully before using.
IMPORTANT SAFEGUARDS When using electrical appliances basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS. 2. Do not touch hot surfaces. Use handles or knobs. 3. Move or lift the burners by their sides after they have cooled completely. 4. To protect against electrical shock do not immerse cord, plugs or housing unit in water or other liquids. 5. This appliance should not be used by or near children or individuals with certian disabilities. 6.
FOR HOUSEHOLD AND COMMERCIAL USE GROUNDING INSTRUCTIONS For your protection, Waring Pro™ Extra Burners are equipped with a 3-conductor cordset that has a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet as shown in Figure 1. If a grounding-type outlet is not available, an adapter, shown in Figure 2, may be obtained so that a 2-slot wall outlet can be used with a 3-prong plug.
PARTS LIST 1 2 PROFESSIONAL DOUBLE BURNER ON READY 5 ON READY 4 3 6 DB60 1 PROFESSIONAL READY 5 ON EXTRA BURNER 4 3 SB30 1. Large cast iron burner and burner ring 2. Small cast iron burner and burner ring 3. Adjustable temperature control 4. Power On indicator light 5. Ready indicator light 6.
OPERATION Before plugging in your extra burner, check to ensure that the electrical circuit is not overloaded with other appliances. This unit should always be operated on a separate 120 volt 60 Hz AC circuit. Be certain that your extra burner is resting level on the counter top. There is one burner ring on the SB30 and two burner rings on the DB60. The large burner plates are rated at 1300 watts. The smaller burner is rated at 500 watts.
IMPORTANT NOTICES: • Before the extra burner is used for the first time, it should be heated up at maximum setting for approximately 4 minutes without a pot. This will burn off any residues on the burner plates. • The extra burner may smoke the first time it is used - it is not defective and the smoke will burn off within a few minutes. • Do not leave the unit ON without any pots/pans on the solid burners after the initial burn-off process. • Do not use as a portable heater.
Any trademarks or service marks of third parties used herein are the trademarks or service marks of their respective owners. © 2006 Waring Consumer Products, Division of Conair Corporation 150 Milford Road East Windsor, NJ 08520 www.waringproducts.
