User's Manual

4
––
Max Length to Panel
Length
AWG
200’ (60 m)
22
300’
20
500’
18
Common Cable Connections
Red
Power In
Black
Ground
Shield
Shield Ground
Brown*
Tamper Out
Green
Wiegand Data 0 / RS 485A
White
Wiegand Data 1 / RS 485B
Yellow*
Beeper Control
Blue*
Green LED Control
Orange*
Red LED Control
Current @ 12 V and 25 C
Avg. mA
Max. mA
110
160
Current for ET25 @ 12 V and 25 C
Avg. mA
Max. mA
140
190
Install the Reader Screw
Install the #4-40 screw or pin-in-torx at the bottom of the
reader.
Test the Reader
Power the reader, the red light-bar will light, followed by a
beep. Present a valid credential to the reader and the
light-bar will turn green.
Attach the Reader to the Wall plate
Align the reader so that the tabs of the base plate slide into
the slots on the wall plate and slide the reader into position.

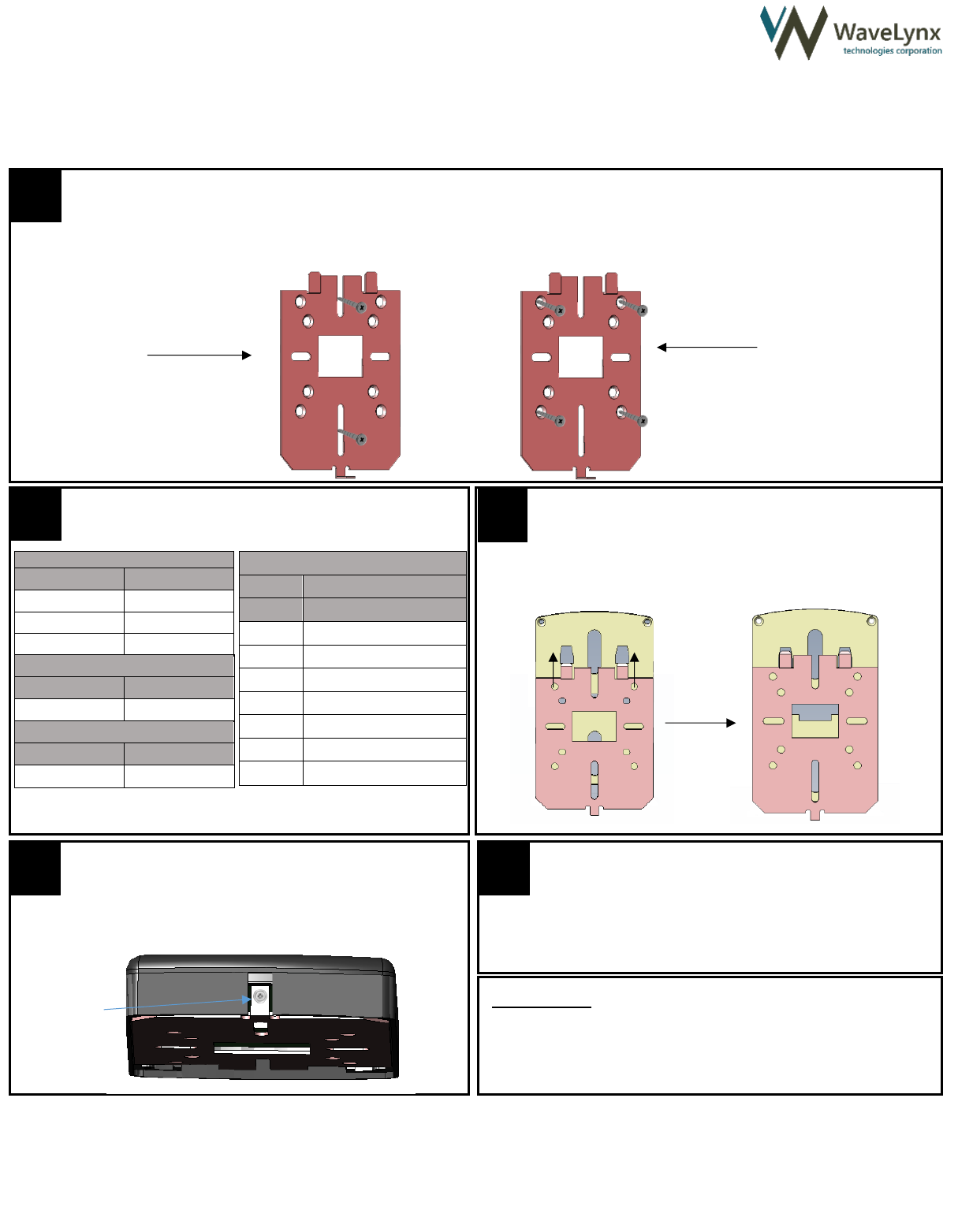

Wall Mounted Reader Installation
This installation guide applies to the following types of readers:
 ET20 – Single Gang Reader
 ET25 – Single Gang Reader with Keypad
Included:
 (2) #6 Screws
 Reader, Backplate, and Wall Plate
The Following tools will needed to install
a wall mount reader:
 Phillips Screwdriver
 1” (25mm), 1/8” drill bits
 T8 Security Torx Bit (optional for increased tamper detection)
Install Metal Wall Plate to Single Gang Box
Connect the wall plate to the single gang box using the provided #6 screws. Alternatively you can use the provided #4 screws in
the four outer holes for other installation requirements. Drywall installations will require molly bolts.
2
Wire the Cable to the Control Panel
3
5
1
Screw or
pin-in-
torx
Contact Us
WaveLynx Technologies
[phone]
www.wavelynxtech.com
Alternative for
situations
outside of a
single gang box
installation.
Standard Single
Gang Box
Installation
*these wires are only used in
Wiegand readers.
*Patent Pending
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by
WaveLynx could void the user's authority to operate the equipment.
”This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux
CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
 (1) #4-40, (1) pin-in-torx
 (4) #4 Screws
