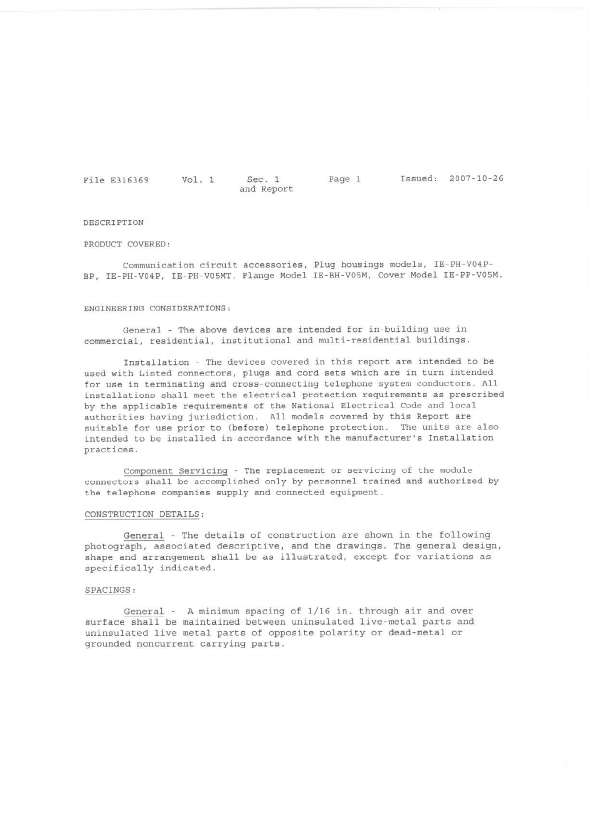

File E316369

DESCRIPTION

PRODUCTCOVERED,

Vol. 1

Sec;. 1

and Report

Page 1

Isaued, 2007-10-26

Communication circuit accessories, Plug housings models, IE-PH-V04t>-

BP, IE-PH-V04P, IE-PH-V05MT. Flange Model IE-BH-V05M, Cover Model IE-PP-V05M.

ENGINEERINGCONSIDERATIONS,

General - The above devices are intended for in-building use in

commercial, residential, institutional and multi-residential buildings.

Installation - The devices covered in this report are intended to be

used with Listed connectors, plugs and cord sets which are in turn intended

for use in terminating and cross-connecting telephone system conductors. All

installations shall meet the electrieal protection requirements as prescribed

by the applicable requirements of the National Electrical Code and loeal

authorities having ju:r.-isdiction. All models covered

this Report are

suitable for use prior to (beforel telephone protection. Tile units are also

intended to 1.>einstalled in accordance with the manufacturer' s Installation

practiees.

Component Servicinq - The replacement

01'

servicing of the module

connectors shall be accomplished only by p••rsonnel trained and authorized by

the telephone companies supply and c;onnected equipment.

CONSTRUCTIONDETAILS;

General - The details of construction a1-e shown in the following

photograph, associated descriptive, and the drawings. The general design,

shape and arrangement shall be as illustrated, except for variations as

specifically indicated.

SPACIN~S ,

Gene1-al A minimum spacing of 1/16 in. through air and over

surface shall be maintained between uninsulated live-metal parts and

uninsulated live metal parts of opposite polarity or dead-metal or

grounded noncurrent carrying parts.

Summary of content (6 pages)

PAGE 1
File E316369 Vol. 1 Sec;. 1 and Report Page 1 Isaued, 2007-10-26 DESCRIPTION PRODUCT COVERED, Communication circuit accessories, Plug housings models, IE-PH-V04t>BP, IE-PH-V04P, IE-PH-V05MT. Flange Model IE-BH-V05M, Cover Model IE-PP-V05M. ENGINEERING CONSIDERATIONS, General - The above devices are intended for in-building use in commercial, residential, institutional and multi-residential buildings.
PAGE 2
File E316369 Vol. 1 Sec. 1 and Report Issued, Page 2 2007-10-26 CORROSION PROTECTION, General corroeion. - All steel parts are suitably painted or plated to reeiet MARKING: General - Manufacturer's name or logo is provided a8 part of each unit. The connector packaging includes the model number. date of manufacture, and reference to the installation instruction or practice.
PAGE 3
File E316369 Vol. 1 Sec. 1 and Report Issued: Page 3 2007-10-26 Plug Housing Model IE-PH-V04P-BP (Represents model IE-PH-V04P) General - Figure 1 shows an overall view of the Plug Housing. 1. Enclosure - Consists of the Rectangle Sleeve, Plug Molding, Half covers, form seal. Each part i8 RjC (ZPMV2) CP-Polymer-Technik Gmbh, type Wellamid 6600-PA 66-GV, rated V-O. Refe;: to Illustration 1 for details. 2.
PAGE 4
File Vol. E316369 Plug Housing Sec. 1 and Report 1 Issued: view of the Plug Housing. 2007-10-26 Model IE-PH-V05MT General - Figure 2 shows an overall 1. plug Hoad Housing 3_for dimensions. 2. Adapter - Constructed type 9125. Refer to Alternate 7503/15. 3. Page 4 - Constructed of Aluminum. Refer of R/C (QMFZ2)Bayer Materials illustration 3 for dimensions. - Constructed Cable G1and - Threaded contains cable clamp.
PAGE 5
File EJ16J69 Flange Val. Sec. 1 and Report 1 Issued: Page 5 2007-10-26 Model IE-BH-V05M General - Figure 3 shows an overall 1. Enclosure - RjC (ZPMV2)Constructed 4 for dimensions. 2. Adapter - Constructed type 9125. Refer to view of the Flange of Aluminum. Refer of RjC (QMFZ2)Bayer Materials illustration 5 for dimensions. 3. Locking Clamp - shaped dimensions. as show, refer to illustration assembly.
PAGE 6
File E316369 Val. Sec. 1 and Report 1 Issued: Page 6 FIG. Cover Model IE-PP-V05M General - Figure 4 shows an overall 1. Enclosure - R/c (ZPMV2)Constructed 7 for dimensions. 2. Locking Clamp - shaped dimensions. as show, refer view of the Flange of Aluminum. Refer to illustration 2007-10-26 4 assembly.
