General ordering data



Type H4,0/14DS GR

Order No. 9028520000

Version Wire-end ferrule, insulated, 10 mm, 8 mm, grey

GTIN (EAN) 4032248049035

Qty. 500 pc(s).

Packaging loose



• supplied loose in poly-bag

• Weidmüller colour code

• DIN colour code

• other colour code

PAGE 1
Data sheet Connecting elements H4,0/14DS GR Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com • supplied loose in poly-bag • Weidmüller colour code • DIN colour code • other colour code General ordering data Type Order No. Version GTIN (EAN) Qty. Packaging H4,0/14DS GR 9028520000 Wire-end ferrule, insulated, 10 mm, 8 mm, grey 4032248049035 500 pc(s).
PAGE 2
Data sheet Connecting elements H4,0/14DS GR Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Technical data Dimensions and weights Width Net weight 14 mm 0.222 g Width (inches) 0.551 inch Conductor cross-section Contact surface length (L2) Metal sleeve thickness (S1) Plastic collar thickness (S2) Wire connection cross section AWG, max. 4 mm² 8 mm 0.2 mm 0.3 mm ETIM 4.0 ETIM 6.0 eClass 5.1 eClass 7.
PAGE 3

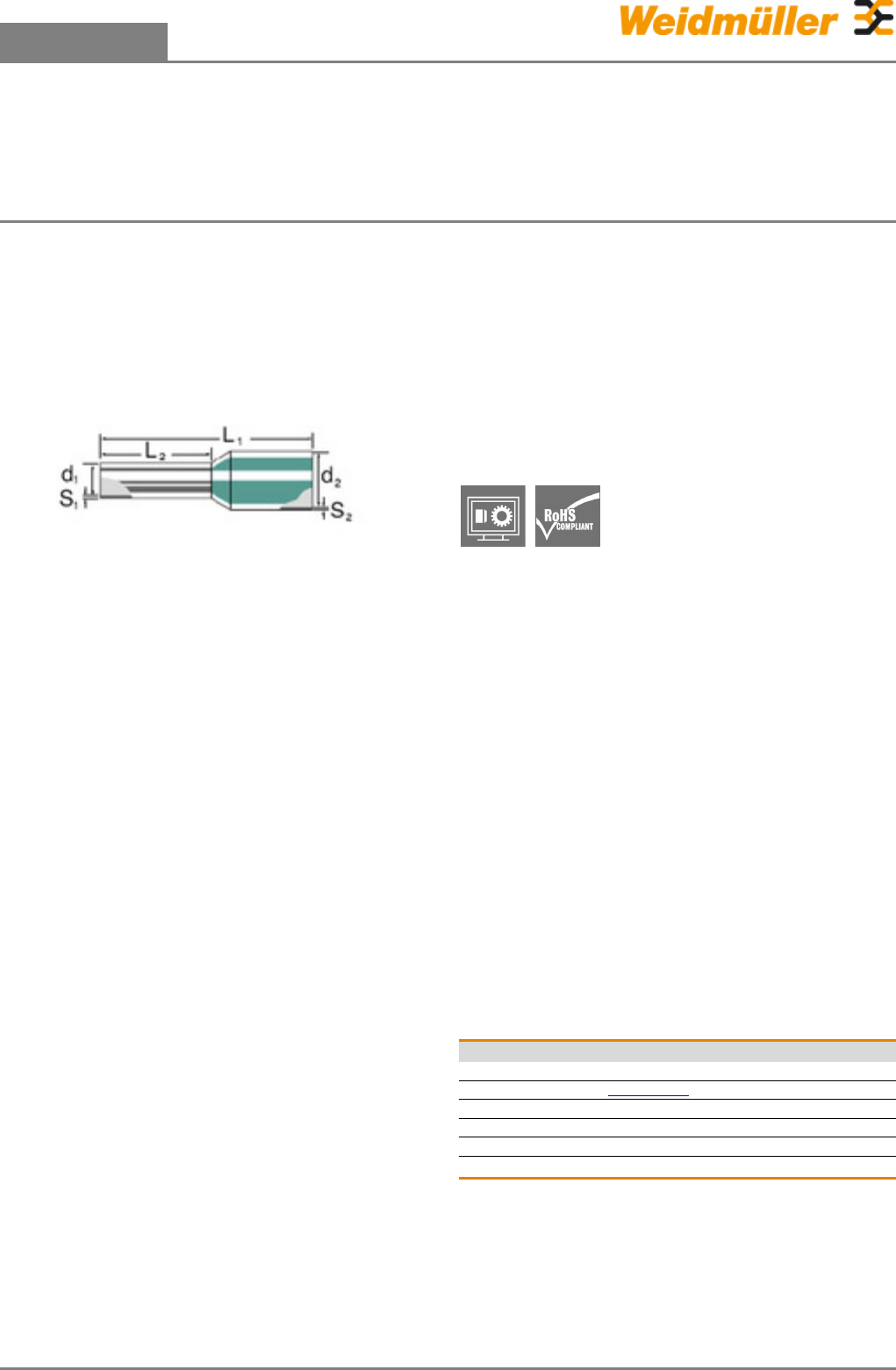

Data sheet Connecting elements H4,0/14DS GR Drawings Weidmüller Interface GmbH & Co. KG Klingenbergstraße 16 D-32758 Detmold Germany Fon: +49 5231 14-0 Fax: +49 5231 14-292083 www.weidmueller.com Similar to illustration Creation date May 28, 2019 3:09:08 PM CEST Catalogue status 23.05.2019 / We reserve the right to make technical changes.
