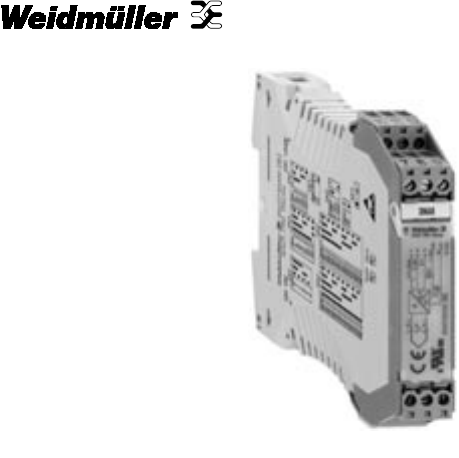

Analogue Signal Isolators WAVESERIES WAVEANALOGUE PRO RTD MODEL Screw terminal connection WAS5 PRO Thermo Tension clamp connection WAZ5 PRO Thermo Order Number 8560720000 8560730000 Please read these instructions before using the product and retain for future information.
1. General instructions Achtung! The analogue signal isolators of the WAVEANALOGUE PRO series may only be installed by qualified personnel. Be sure not to connect the unit to power supply before appropriate installation. Do not select ranges during operation, because live parts are exposed during this process. Only use a screwdriver which is properly insulated against the voltage applied to the input when fine adjusting the potentiometers on the front.
3. Configuration 3.1 Equipment A screwdriver with a width of 2.5 mm is required to adjust the unit and to connect the wires to the terminals. 2 3.2 Opening the unit Disconnect the plugs. Disengage the top part of the housing by carefully pressing the latches on both sides (1). Pull out the top part of the hou1 sing and the electronics section until they lock (2). 1 3.
Selecting the thermoelement Type K J T E N R S B SW1 2 1 1 0 0 1 1 0 0 1 1 0 1 0 1 0 1 0 3 1 1 1 1 0 0 0 0 Selecting the minimum temperature SW1 min 0º C –10º C –20º C –30º C –40º C –50º C –100º C –150º C –200º C +50º C +100º C 18 4 1 1 1 1 1 1 1 1 0 0 0 5 1 1 1 1 0 0 0 0 1 1 1 6 1 1 0 0 1 1 0 0 1 1 0 7 1 0 1 0 1 0 1 0 1 0 1
SW1 min +150º C +200º C +250º C +500º C Special range 4 0 0 0 0 0 5 1 0 0 0 0 6 0 1 1 0 0 7 0 1 0 1 0 Activating the manual fine adjustment manual calibration off on SW1 8 0 1 1 = on 0 = off 19
Selecting the temperature span Span 100º C 150º C 200º C 250º C 300º C 350º C 400º C 450º C 500º C 550º C 600º C 650º C 700º C 750º C 800º C 850º C 900º C 950º C 1000º C 1050º C 1100º C 1150º C 1200º C 1250º C 20 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 2 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 SW2 3 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 4 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 5 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
Span 1300º C 1350º C 1400º C 1450º C 1500º C 1600º C 1700º C 1800º C 1 0 0 0 0 0 0 0 0 2 0 0 0 0 0 0 0 0 SW2 3 1 1 1 1 0 0 0 0 4 1 1 0 0 1 1 0 0 5 1 0 1 0 1 0 1 0 Selecting the output SW2 Output 0…10 V 0…20 mA 4…20 mA 6 1 0 0 7 0 0 1 Activating the filter function Filter off on SW2 8 0 1 1 = on 0 = off 21
Should a temperature measurement range be selected that is larger than the specified range of the thermoelement used, then the module sets itself to the maximum specified range: Type K Type J Type T Type E Type N Type R Type S Type B –200º C … +1372º C –200º C … +1200º C –200º C … +400º C –200º C … +1000º C –200º C … +1300º C –50º C … +1760º C –50º C … +1760º C +50º C … +1820º C The voltage output and the combined current output (0…20 mA and 4…20 mA) are routed from two separate, calibrated connections.
4. Mounting Die The analogue signal isolators are mounted on standard TS 35 rails. Electrical connection 7 8 9 V. 0 We i dm ü l le r 12 nc 8 10 11 WAS5 PRO Thermo 7 > 5 mA ≤ 500 mV / ≤ 5 mA > 500 mV 2 Wire cross-section max. 2.5 mmmax. Anschlu§querschnitt 2,5 mm2 I 0...
6. Dimensions Cross-connections for power supply 73.4 111.4 38 92.4 24 Vdc GND 17.
7. Accessories (cross-connection) Designation ZQV 2,5 N/2 yellow ZQV 2,5 N/2 red ZQV 2,5 N/2 blue ZQV 2,5 N/2 black Cat. No. 169380 171790 171799 171808 Connection markers Designation WS 10/5 Multicard for plotter marking WS 10/5 Neutral Cat. No. 163501 106086 8.
