PRESSURE WASHER PREPARATION

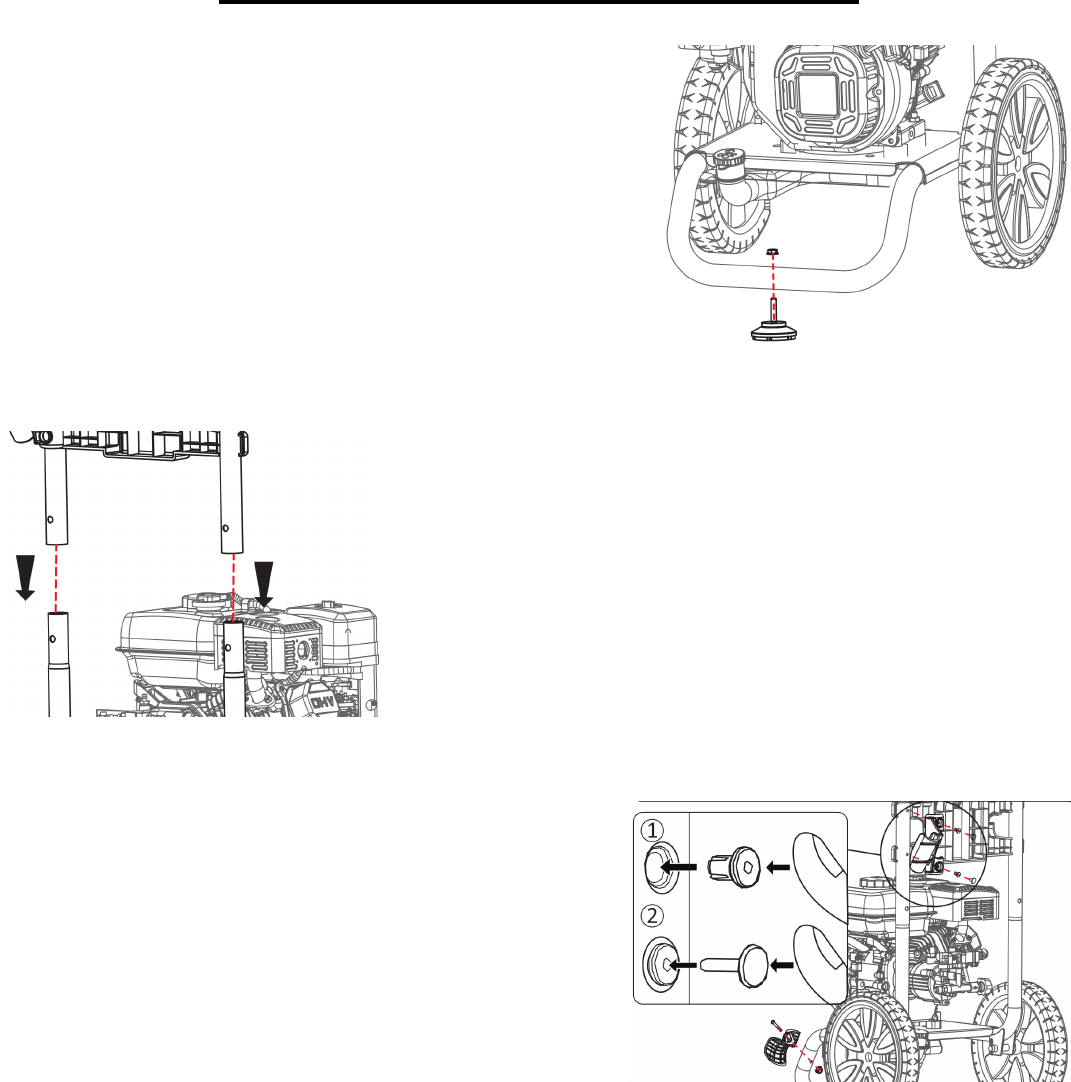

ATTACHING FOOT ASSEMBLY (Fig. 1)

PARTS NEEDED: 1 foot, 1 M8 lock nuts.

1. Raise or tilt pressure washer so you can line up foot with the hole

located at the centre of the frame.

2. Align the rubber foot with the hole in the frame where the foot

is to be located. Attach foot by inserting the bolt from the bottom

up and install the acorn nut. Wrench tighten until there is a slight

crush on the frame tube. (Do not over tighten)

Fig. 1

INSTALL HANDLE (Fig. 2)

Install upper frame (handle) onto the lower frame by sliding the

handle over the two upright tubes on the lower frame and pressing

down firmly until the handle is seated and the two detent pins snap

in place.

Fig. 2

ATTACHING UPPER AND LOWER GUN HOOKS (Fig. 3)

1. Attach the upper gun hook. Align the upper gun hook with the

holes. Install two plastic rivets and press hard with your finger to

lock the rivet in place.

2. Attach the lower gun hook. Install the M6 screw & lock nut.

Wrench tighten until the nut is snug. Do not over tighten.
