Assembly Instruction
button tufted upholstered headboard
assembly instructions
Page 2 of 7954998/954964/954980/954972/954956/923054/9230848/9230863/9230889/9230905 - 04/07

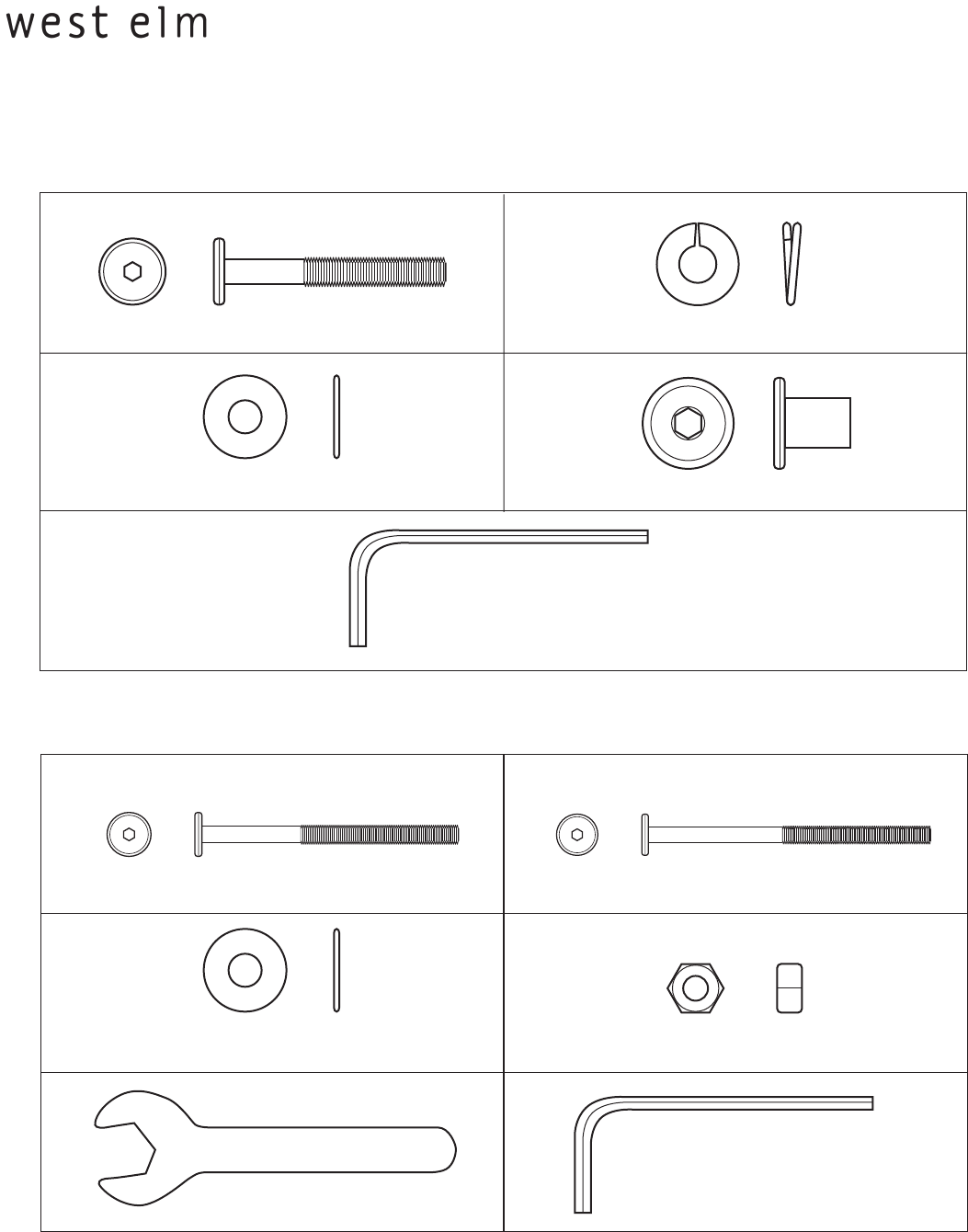

For assembly of headboard:
C
D
A B
For attaching headboard to bedframe:
For use attaching to wooden bedframes.
For use attaching to standard metal bedframes
I
E
J
K
G
F
H
long bolt: 6mm dia x 90mm 4x
short bolt: 6mm dia x 70mm 4x
metal washer 8x
metal washer 8x
wrench 1x allen key 1x
nut 4x
cap nut 8x
allen key 1x
x
lock washer 8x
bolt: 6mm dia x 60mm long 8
