The Bonnet functions as a cover and guard for the Waste
Port as the Globe rotates. The Bonnet also provides a
mount location for the Night Light, wires, and electrical
terminals that provide a safe, low 5VDC to the Night
Light. The Globe will not rotate without the Bonnet
installed (see
Control Panel - Indicator Lights  Yellow
Light Flashing
, page 17).
Cat Re-Entry Protection
If the Cat Sensor detects a cat trying to enter the Litter-
Robot during a cycle, the Globe will stop rotating. It will
wait 15 seconds before attempting to resume the cycle.
Note: Weight applied on the step and/or Step Mat will
not trip the Cat Sensor and stop the Globe rotation.
This
is intentional as we do not want to invite a cat to enter
by stopping the Globe rotation. If, however, the cat steps
inside, the Globe will stop.

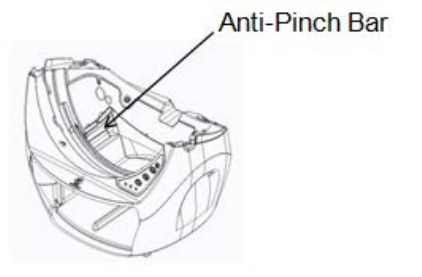

Anti-Pinch Safety Feature
The Litter-Robot is
equipped with an Anti-
Pinch Safety Feature to
make the Litter-Robot
extra safe for your cat.
While cycling, if a
potential pinch
condition is detected,
the Globe will stop and
reverse direction for 2 seconds. The yellow light will
begin flashing quickly (about four times per second),
awaiting your action. Once the blockage is cleared, press
any button to return the Globe to the Home position.
