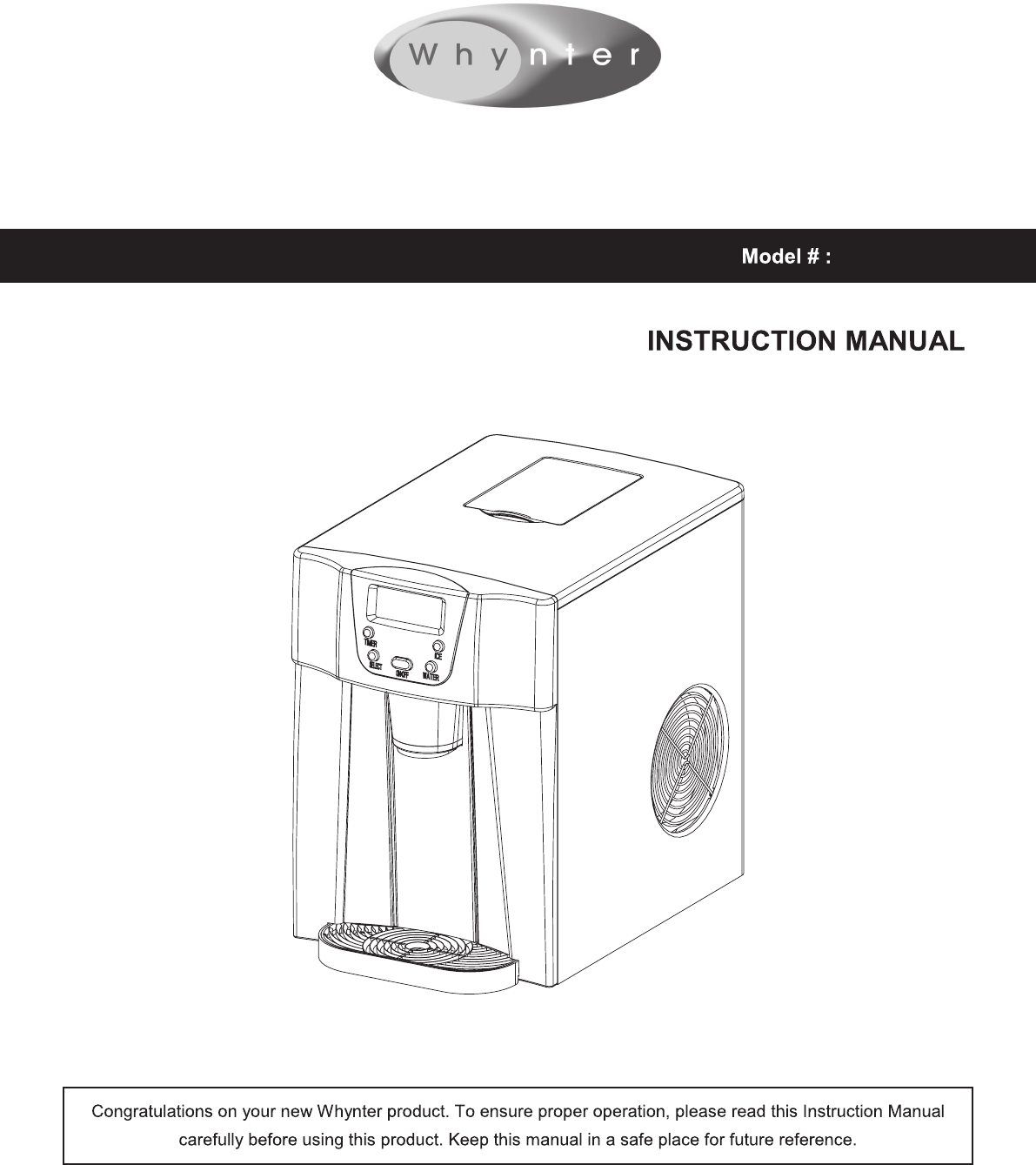

WHYNTER COUNTERTOP DIRECT CONNECTION ICE MAKER AND WATER DISPENSER IDC-221SC
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS…………………………………………………2 PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS…………………………………………………………………….3 GETTING TO KNOW YOUR UNIT… ………………………………………………………..4 OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER………………….…………………………………………...5 CONNECTING YOUR ICE MAKER……………….……….……………………………………………...5 CLEANING AND MAINTAINING YOUR ICE MAKER….………………………………………..5 USING YOUR ICE MAKER……………….……..………………………………………..6-8 TROUBLESHOOTING…………………………….…………………………………………..
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety massages. This is the safety alert symbol: ! All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”. DANGER WARNING These words mean: You can be killed or seriously injured if you don’t immediate follow instructions.
PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. z Do not operate this，or any other appliance with a damaged cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
GETTING TO KNOW YOUR UNIT 1. Water drip tray: 2. Water drip tray cover: Also used for the support of the ice-cube container 3. Water drain plug: For draining water from water reservoir. 4. Hot Air outlet 5. Top window 6. Ice cube pushing spring 7. Control Panel: Easy to use, visible functions touch display setting. A.: LCD display window 1: TIMER setting delay time 2: Ice-cube size displaying: Small size. 3. Ice-cube size displaying: Large size. 4.
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging, Then check all the accessories are included. If any parts are missing, please contact our customer service. 2. Remove all the tapes on the unit. Open the transparent window, take out the accessory parts inside. 3. Clean the interior (such as water reservoir, Ice cube pushing spring etc.) with lukewarm water and a soft cloth. 4.
USING YOUR ICE MAKER How to start the unit 1. Open the left side door, pour potable water into water reservoir. Keep water level below the “MAX” water level mark. 2. Plug your ice-maker into the main power outlet, then the “ ” symbol will flash in LCD display window. 3. Press “ON/OFF” button on the control panel to begin the ice making cycle. After this, the “ symbol will change to light on always in LCD display window, and “ ” ” symbol will flash on in the mean time.
5. While the ice-maker is on, verify water level periodically. If water pump can’t pump out water, the ice maker will stop automatically, and the “ ” symbol will light on LCD displaying window and the arrow symbol will flash. Need to pour water into the water reservoir inside. We suggest you should press “ON/OFF” button to turn off the unit first, then fill water up to the MAX level mark, again press “ON/OFF” button to restart the unit.
the water reservoir, just unplug the water drain cap which located at the bottom of the unit and near the water drip tray, the water will flow out from the unit completely. 10. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If the unit isn’t to be used, drain all water & dry the water reservoir. TIMER SETTING Timer Delay Time Range: 0.5-19.5 hours. Default Delay Time: 1 hour.
TROUBLESHOOTING PROBLEM “ ” symbol lightening on arrow flashes. “ and POSSIBLE CAUSE is Lack of Water. Stop the ice maker, fill water, and press “ON/OFF” button again to restart the unit. There is too much ice. Suggest you ice-cube. No ice cube inside. Remove the probable obstacle inside or clean the inside wall of the ice storage, if still can’t start to ice making process, press “SELECT” for more than 5 seconds to run the ice making for 10 cycles at most.
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS Model IDC-221SC Protection Type Power I 115V/60Hz Ice Making Current 1.5A Ice Harvest Current 2.0A Refrigerant R134a/51g Vesicant C5H10 Net Weight 9.
Disposal and Warranty Information Disposal When the unit is not to be used again, disposal of these unit’s material shall be in accordance with national regulations. Warranty Information The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year, starting from the date on which the appliance is sold to the end user. The warranty only covers defects in material or workmanship.
