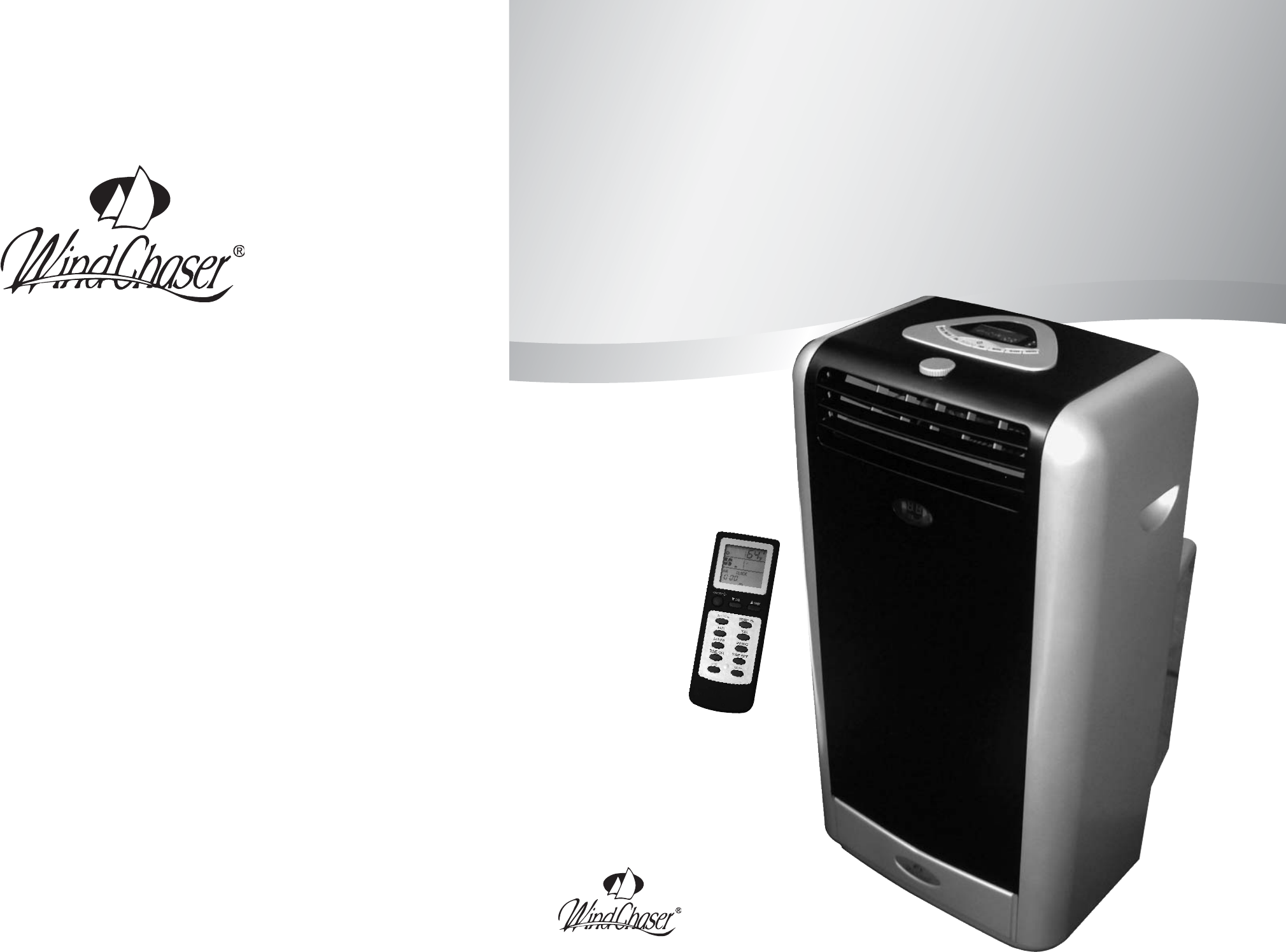

PLEASE READ BEFORE USE AND SAVE 12,000 BTU Dual Hose Portable Air Conditioner Heater & Dehumidifier Innovative Products For Living INSTRUCTION MANUAL MODEL PACRWC WindChaser Products, Inc. 4130 Del Rey Avenue, Marina del Rey, CA 90292 Phone: 310-827-8615 Fax: 310-827-8566 Toll Free: 1-800-405-2943 www.windchaserproducts.com ©2006 WindChaser Products, Inc.
NOTE: CONTENTS BEFORE returning the Product; call your dealer/retailer or distributor that sold you the Product for instructions and details regarding their return merchandise policies. DO NOT return Product, components or parts to ICP without prior written approval and Return Authorization number from ICP.
PRODUCT LIMITED WARRANTY BEFORE INITIAL USE This Warranty applies to new Product only and excludes optional accessories and attachments. Extended Compressor Warranty applies only to Product with manufacturing dates beginning January 1, 1998. Read this Entire Instruction Manual Before Use. During the first year from date of original purchase this WINDCHASER Product is warranted to be free from defects in materials or workmanship under normal use, service and maintenance.
SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE AIR CONDITIONER When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Do not damage the power cord. 2) Never lay the unit down while it is off or working. 3) Always keep it in an upright position to avoid any damage to the cooling system. 4) Operate this unit in an ambient temperature of 90oF or lower.
unit, your unit must always be used with its air filter. PROTECTION NOTE: ALL SETTINGS CAN BE VIEWED ON THE REMOTE DISPLAY a) Operating Condition - The protective device will be tripped, and the unit will shut off under these two conditions: • Cooling: (1) Outdoor air temperature is over 109oF (*43oC). (2) Room temperature is below 61oF (16oC). • Heating: (1) Outdoor air temperature is below 23oF (-5oC). • Dry: Room temperature is below 61oF (16oC).
9. ION BUTTON Press the Ion Button until ‘ ’ appears on the Main LED display, press again to stop. 10. TIME ON To program the timer, press Timer On button until the Main LED display shows a flashing ‘ ’. 11. TIME OFF Press Timer Off button and the Main LED display will show a flashing ‘ ’. 12. HR Press to set the desired hour setting. 13. MIN. Press to set the desired minute setting. PARTS 1 Front View 1. Control Panel with LED Display 2. Adjustable Dial: Thermostat and Timer 3.
OPERATION USING ADJUSTABLE DIAL SWITCH To adjust desired temperature and program the timer. Select the desired temperature by turning Adjustable Dial Switch when using the unit in cooling or heating function. The desired temperature range is from 61oF-88oF (16oC31oC). The LED flashes to display the desired temperature during the setting, it displays the room temperature after 5 seconds, . NOTE: 1. Do not abuse the remote control. 2.
6) The air conditioner can now be plugged into a 110120V/60Hz dedicated 15amp or greater circuit. You are advised not to use an extension cord, however, if this is unavoidable, the extension cord must be 14 gauge, grounded at both ends and not more than 30 feet long. If you need to extend your exhaust hose, it may be extended 5 feet only.
