IC70 series Panel PC User Guide
4
Chapter 2 Getting Started
2-1 Input / Output Devices

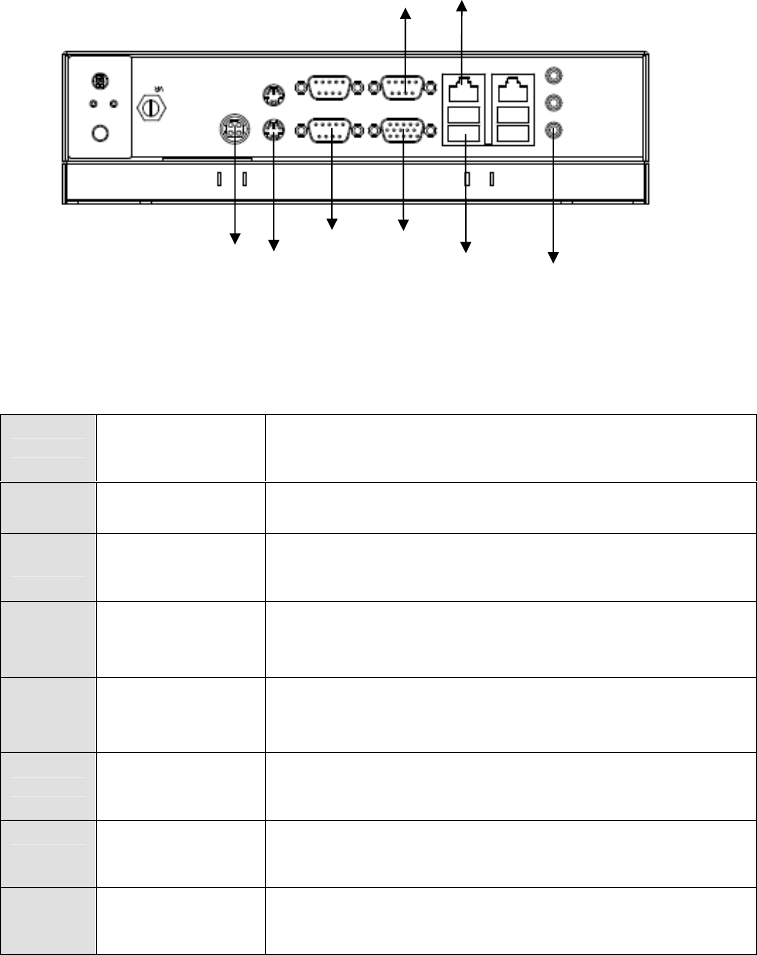

The following figure shows the I/O arrangement of the Panel PC. The backside
of the chassis contains most of the connectors.
1
Power
On / Off / Reset
Power on/off and Reset the power on your computer.
2 Audio Audio Jack for Audio (Line-Out, Line-In, Mic-in)
3 USB port
USB-compatible devices can be plugged directly into
the USB 2.0 port.
4 RJ-45 port
Connect a network cable to the standard RJ-45 port and
get connection to the Local Area Network (LAN).
5 COM port
One optional COM port supports RS232/422/485 choice
through jumper setting. COM 1 Provides +5V & +12V
output options by JP1 Jumper setting.
6 VGA port Use VGA port to connect an external Display.
7 COM port Two RS-232 connectors build in the rear I/O.
8 PS/2
The Motherboard provides two PS/2 interface. The PS/2
connector supports Keyboard (Green) and Mouse.
1
8
7
6
4
3
2
5
