Technical data

7

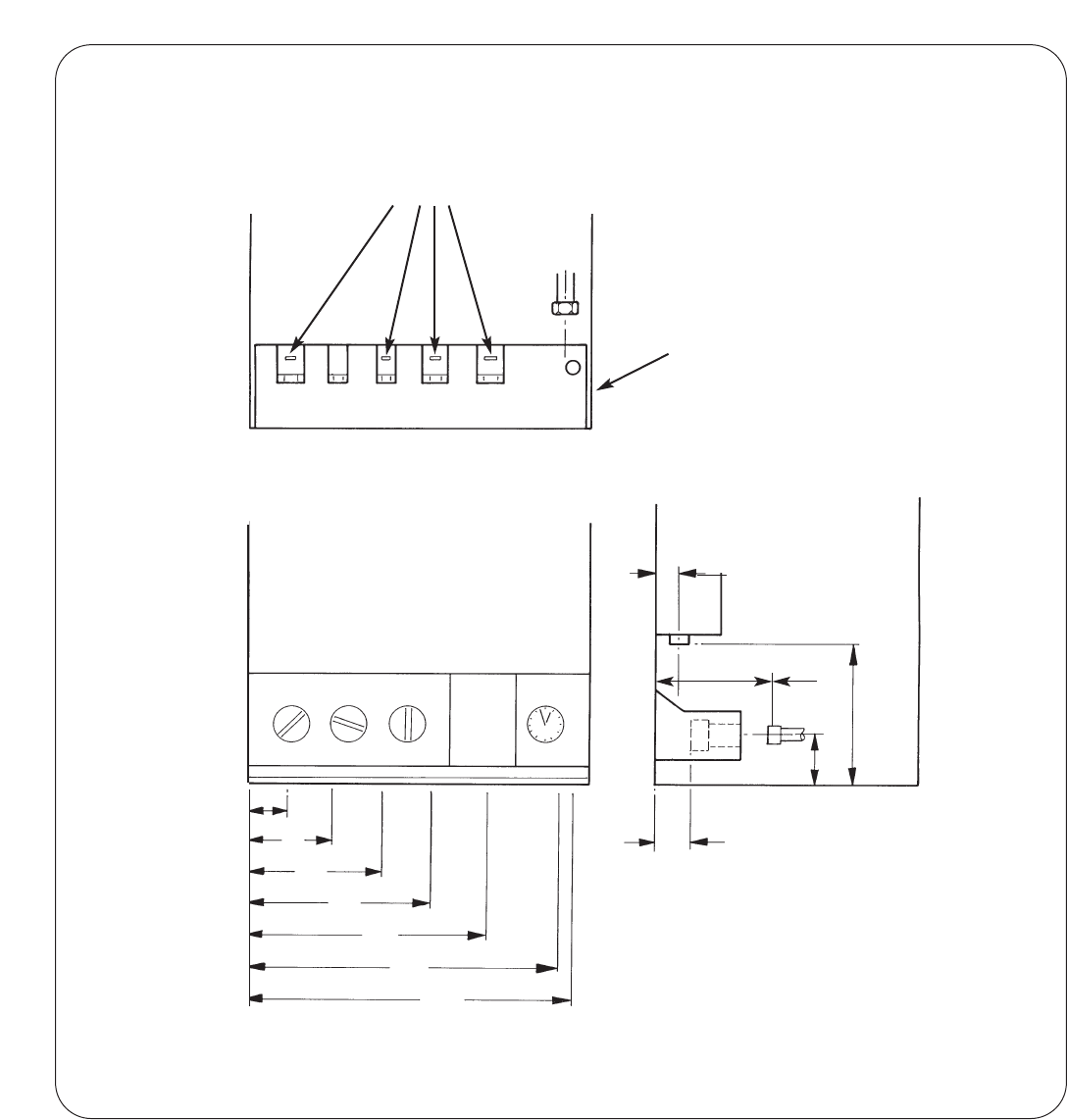

Fig. 3. Appliance pipework connections
Screw driver required to operate Valves.
Valves shown closed.
A
B
C
D
E
F
G
91
(A, B, C, D, and E)
61
110
(G)
(F)
(G)
85
A B C D E G
F
View on underside of appliance showing connections
Rear of appliance
A CH Flow = 62.5
B DHW Out = 127.5
C Mains Cold Water In = 192.5
D Gas Inlet = 257.5
E CH Return = 322.5
F Safety Relief = 382.5
G Condensate Drain = 398
195
