Technical data

2120
Greenstar Highflow CDi combi boiler
horizontal fluing options
Greenstar Highflow CDi combis offer a choice of 2 different
sized horizontal RSF flue systems, 100mm diameter and
125mm diameter. The systems have different maximum
lengths. Options 1 to 8 detail the permissible lengths.
Horizontal RSF flue
100mm dia. telescopic flue kit
Com
prises:
1 x internal flue connector bend
1 x flue adaptor
1 x flue connector
2 x wall cover plates
530mm (100mm dia.) of flue duct including terminal
Part No. 7 716 191 155
125mm dia. standard flue kit
1 x internal flue connector bend
1 x flue adaptor
1 x flue connector
2 x wall cover plates
965mm (125mm dia.) of flue duct including terminal
Part No. 7 716 191 157
Accessories
Flue diameter 100mm 125mm
Minimum flue length 130mm 350mm
Maximum flue length 4,000mm 13,000mm
The following criteria should be noted when planning the
installation.
•
The concentric flue system must be inclined at 3º
(52mm per metre) from the appliance, to allow
condensate to drain back into the boiler.
•
Because the appliance operates at high efficiency a
white plume of condensation will be emitted from the
terminal. Care must be taken when selecting the flue
terminal position (see pages 18 - 19).

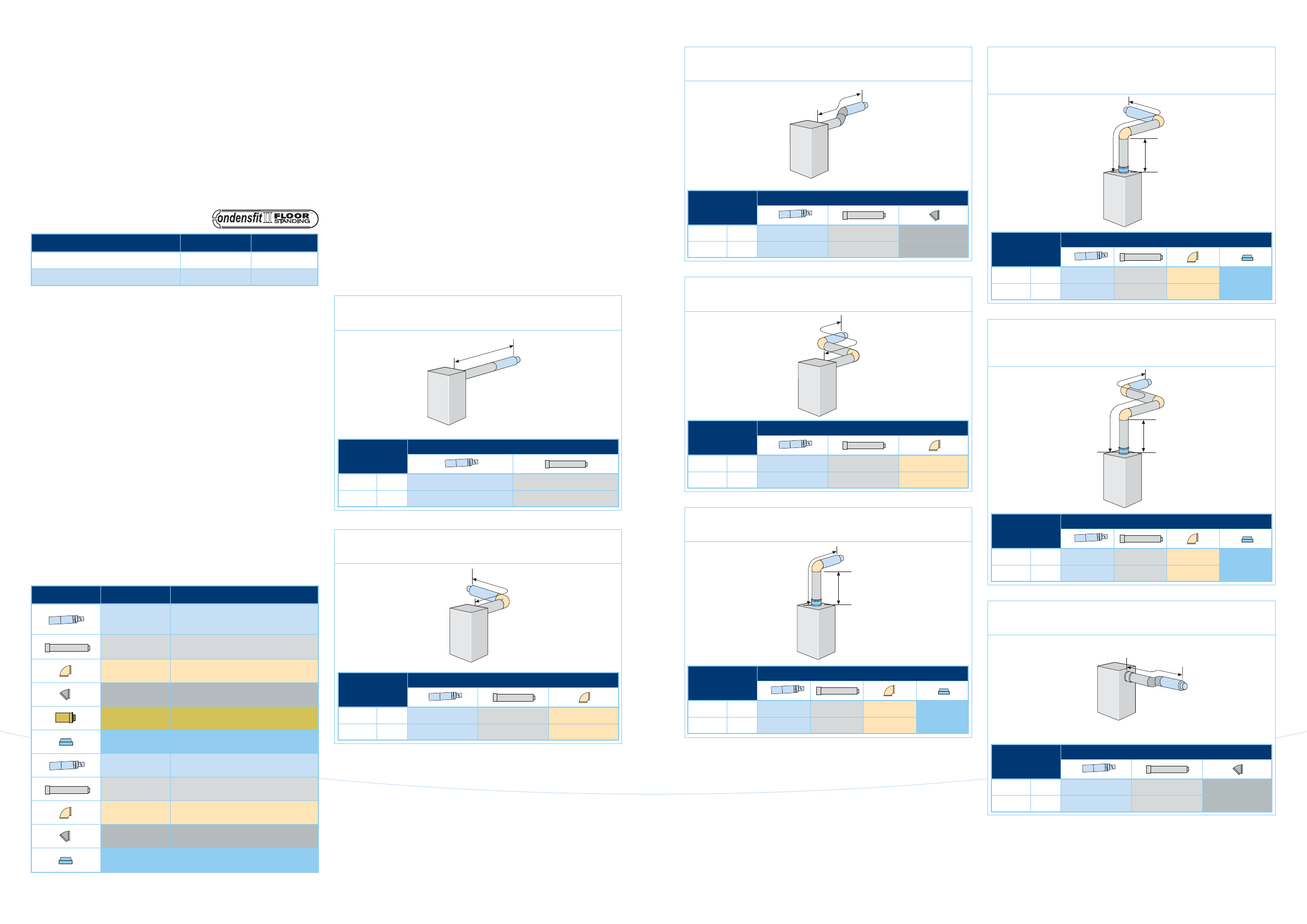

Option 1
Extension rear flue horizontal flue assembly
Maximum
Components required
length (m)
60/100 4 1 up to 4
80/125 13 1 up to 12
Option 2
Extension rear flue horizontal using a 90º bend
Maximum
Components required
length (m)
60/100 2.5 1 up to 2 1
80/125 11 1 up to 10 1
Option 3
Extension rear flue horizontal using 45º bends
Maximum
Components required
length (m)
60/100 2.5 1 up to 2 2
80/125 11 1 up to 10 2
Option 4
Extension rear flue horizontal using a second 90º bend
Maximum
Components required
length (m)
60/100 1 1 up to 2 2
80/125 9 1 up to 8 2
Min.
120mm
Maximum
Components required
length (m)
60/100 2.5 1 up to 2 1 1
80/125 11 1 up to 10 1 1
Option 5
Extension flue upwards and horizontal
Min.
120mm
Maximum
Components required
length (m)
60/100 1 1 up to 2 2 1
80/125 9 1 up to 8 2 1
Option 6
Extension flue upwards and horizontal
using a second 90º bend
Min.
120mm
Maximum
Components required
length (m)
60/100 N/A N/A N/A N/A N/A
80/125 7 1 up to 6 3 1
Option 7
Extension flue upwards and horizontal
using a third 90º bend
Option 8
Side flue extension using two 45º bends
Maximum
Components required
length (m)
60/100 2.5 1 up to 2 2
80/125 11 1 up to 10 2
*The 100mm flue system inclines 2º within the 100mm terminal.
Components Part no. Description
7 716 191 155
60/100 530mm
Horizontal telescopic kit
7 716 191 083 60/100 1m extension
7 716 191 084 60/100 90º bend
7 716 191 085 60/100 45º bend
7 716 191 133 60/100 Short flue extension
7 716 191 164 60/100 Vertical flue adaptor
7 716 191 157 80/125 965mm Horizontal flue kit
7 719 001 892 80/125 1m extension
7 719 001 891 80/125 90º bend
7 719 001 899 80/125 45º bend
7 716 191 165 80/125 Vertical flue adaptor
Deduct 750mm off the total flue length for every
45º bend used.
Deduct 1,500mm off the total flue length for every
90º bend used.
