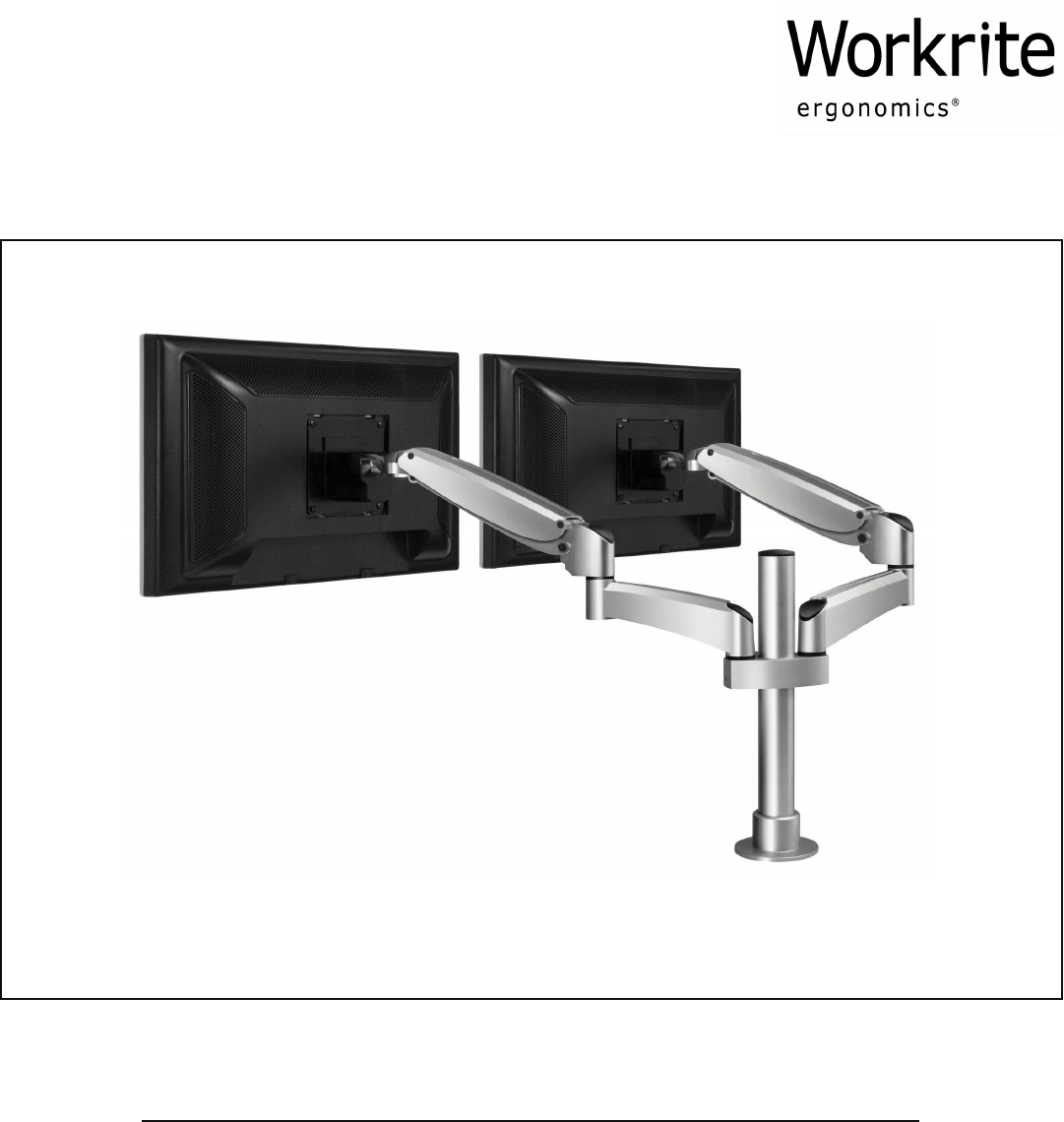

Workrite Poise™–Dual Assembly Instructions Clamp and Grommet Mounts #1500141 - Rev A
Workrite Poise–Dual™ Installation Instructions Important Safety Instructions Read and understand all these safety instructions before using this product. Do not mount the clamp base or the grommet base on an unstable surface (any surface that will not hold the base firmly). For safety reasons, the internal gas-strut of the Workrite Poise–Dual™ is pre-adjusted at the factory to the lowest force for the prevention of arm body recoil during installation.
Workrite Poise–Dual™ Installation Instructions List of Parts, grouped by carton For model #: PA2000-C-_ A C E B Clamp Base Qty: 1 Base Cushion Qty: 1 M2.5 Hex Wrench Qty: 1 D F Clamping Bracket Qty: 1 M 14" Pole Qty: 1 N Cable manager Velcro® strips Qty: 2 O Dual Mount Clamp Qty: 1 P Plastic Spacer 30mm OD, 18.5 mm ID Qty: 2 Q Pivot Pins 55mm Qty: 2 R Button-head Cap Threaded Bolt M8 X 1.25 X 70mm Qty: 2 S Set Screws M5 X .8 X 10mm Qty: 2 T M8 Disc Spring Washer 23mm OD, 8.
Workrite Poise–Dual™ Installation Instructions 1 Verify that you have all the hardware and tools needed for the assembly Check your cartons against the list on page 2 to verify that you have all the parts needed. You will also need the following tools: #3 tip Phillips screwdriver 2 Clamp Base Only: Attach Clamp Base to Worksurface For Grommet Base please skip to Step 3. a Attach the base cushion to the underside of the base.
Workrite Poise–Dual™ Installation Instructions 3 Grommet Base Only: Attach Grommet Base to Work Surface a Remove the center hole from the base cushion, then attach it to the underside of the base, aligning the hole in the base with the hole in the protector. Thread the M8 Thread Rod into the bottom of the base. b Attach 14” pole to base, securely tighten 4 set screws (already in place). c Place the base on the work surface, centering it over a bolting hole from 3/8” to 3” in diameter.
Workrite Poise–Dual™ Installation Instructions 5 Attach Pivot Base and Arms a b Place the pivot pins and the large plastic spacers onto the dual mount clamp. c Attach one assembled monitor arm to the dual mount clamp. Position the arm horizontally and test the height range to be sure it is correct for your monitor. If not, remove the arm and move the dual mount clamp accordingly. Then replace the arm. Attach the second arm to the dual mount clamp.
Workrite Poise–Dual™ Installation Instructions 6 Vertical Movement Adjustment If your monitor is too light or too heavy for the factory-set tension, the arm will raise or lower too easily (or even on its own). If this is the case, you need to adjust the vertical movement. a Set the monitor arm at a 90° angle and locate the adjustment screw on the top of the arm joint.
Workrite Poise–Dual™ Installation Instructions 8 a Final Touches: Cable Management Thread monitor cables through Cable Mount located on underside of Forearm. Place Holding Tabs in center slot as shown and slide into place along Mount track. Use four tabs on each side. Workrite s Ergonomic S b a Secure attached hook and loop strips around monitor cables, again leaving enough slack at both ends of the arm for full movement of the arms.
