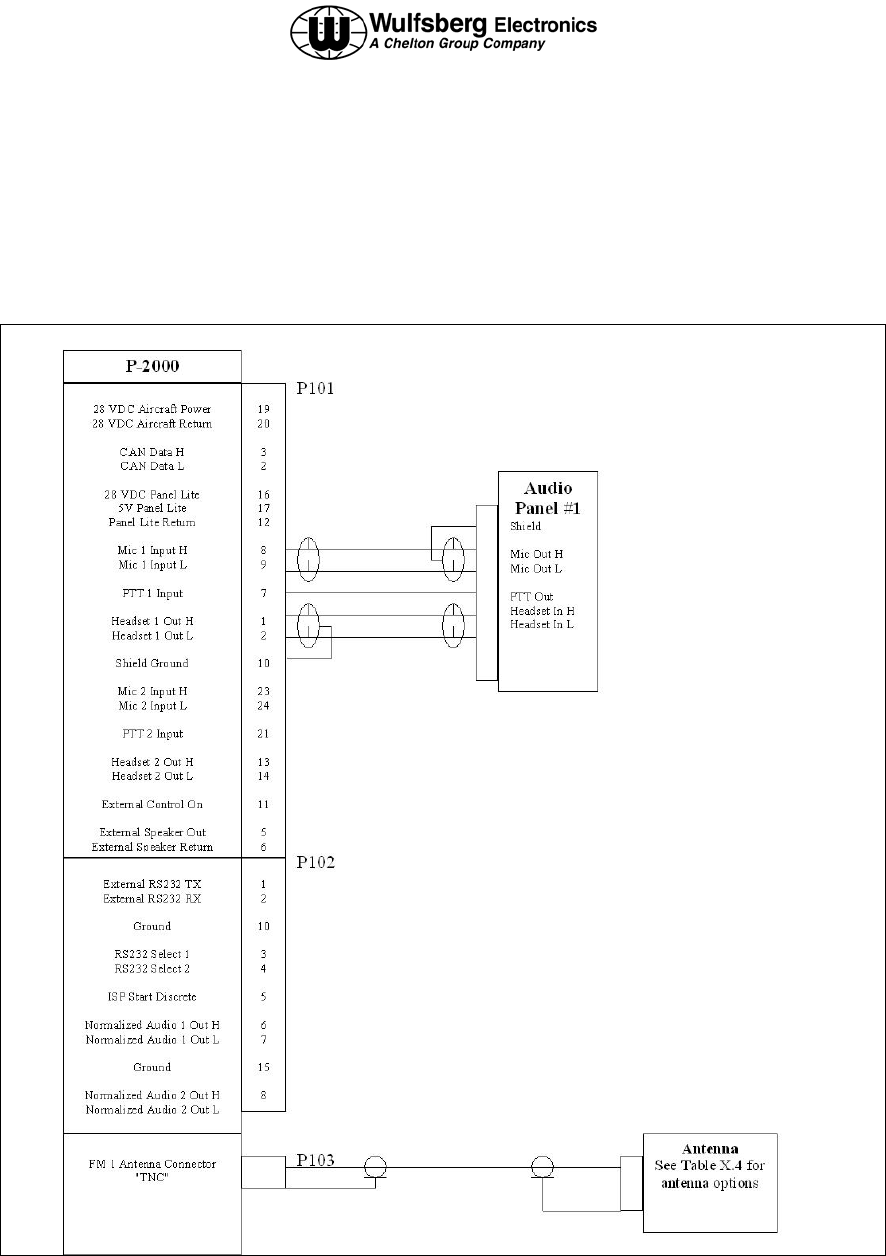

3. Sample Interconnect Wiring Diagram
The following wiring diagram is intended to show a basic installation of the Flexcomm “2000”
family of products. Due to the flexibility of the system components it is impossible to create wiring
diagrams for all configurations. However, with the examples given by the manufacturer and the
technical descriptions of connector pins, a competent designer should be able to create wiring
diagrams for their specific application.
