Data Sheet

1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
H 08-NOV-11 CURRENT RATING GG
APPROVAL: RJ

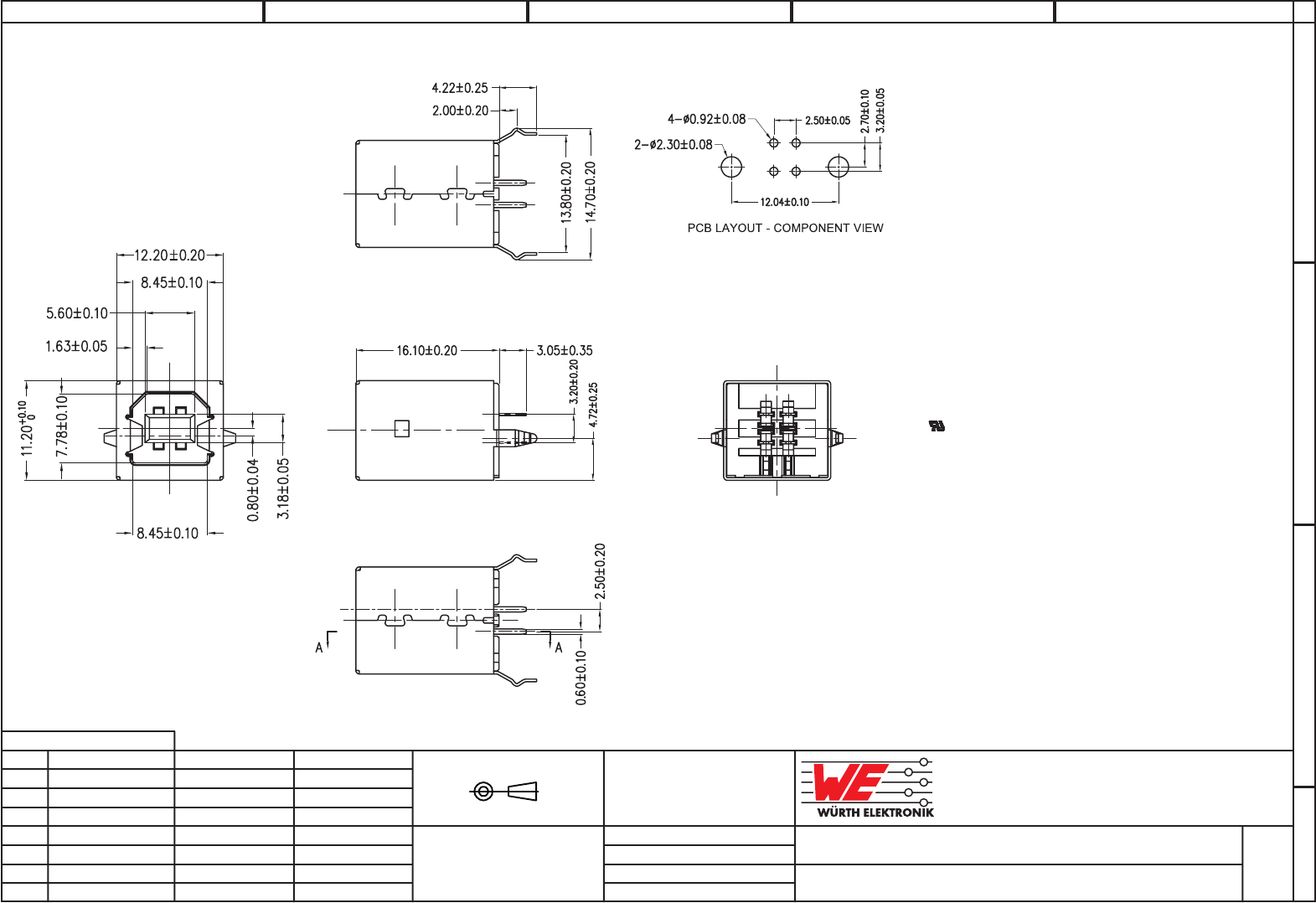

UNIT: MM DESCRIPTION: USB 2.0 TYPE B VERTICAL
SCALE:
SHEET: 1/1 WERI PART NO: 61400413321
DRAW:
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR MATERIAL: PBT
FLAMMABILITY RATING UL94-V0
COLOUR: WHITE
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: SELECTIVE GOLD
SHIELDING: BRASS NI PLATED
QUALITY CLASS: 1500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: –40 °C UP TO 105 °C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE: 30 V
INSULATION RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 750 VAC/MN
CONTACT RESISTANCE: 20 mOHM MAX
STANDARD
CERTIFIED: E323964 / MODEL NUMBER 61400413321
SOLDERING
WAVE PROCESS ONLY
PACKAGING
TRAY
12
43
43
2 1
1.5A Max
I 15-FEV-13 DESIGNATION AR
J 21-AUG-13 DIM UPDATE QL
