Datasheet

1 2 3 4 5
A
B
C
D
SIZE
A4
REV DATE FILE BY
A 11-MAY-10 PDF JP
B
C
D
E
F
G
APPROVAL: RJ

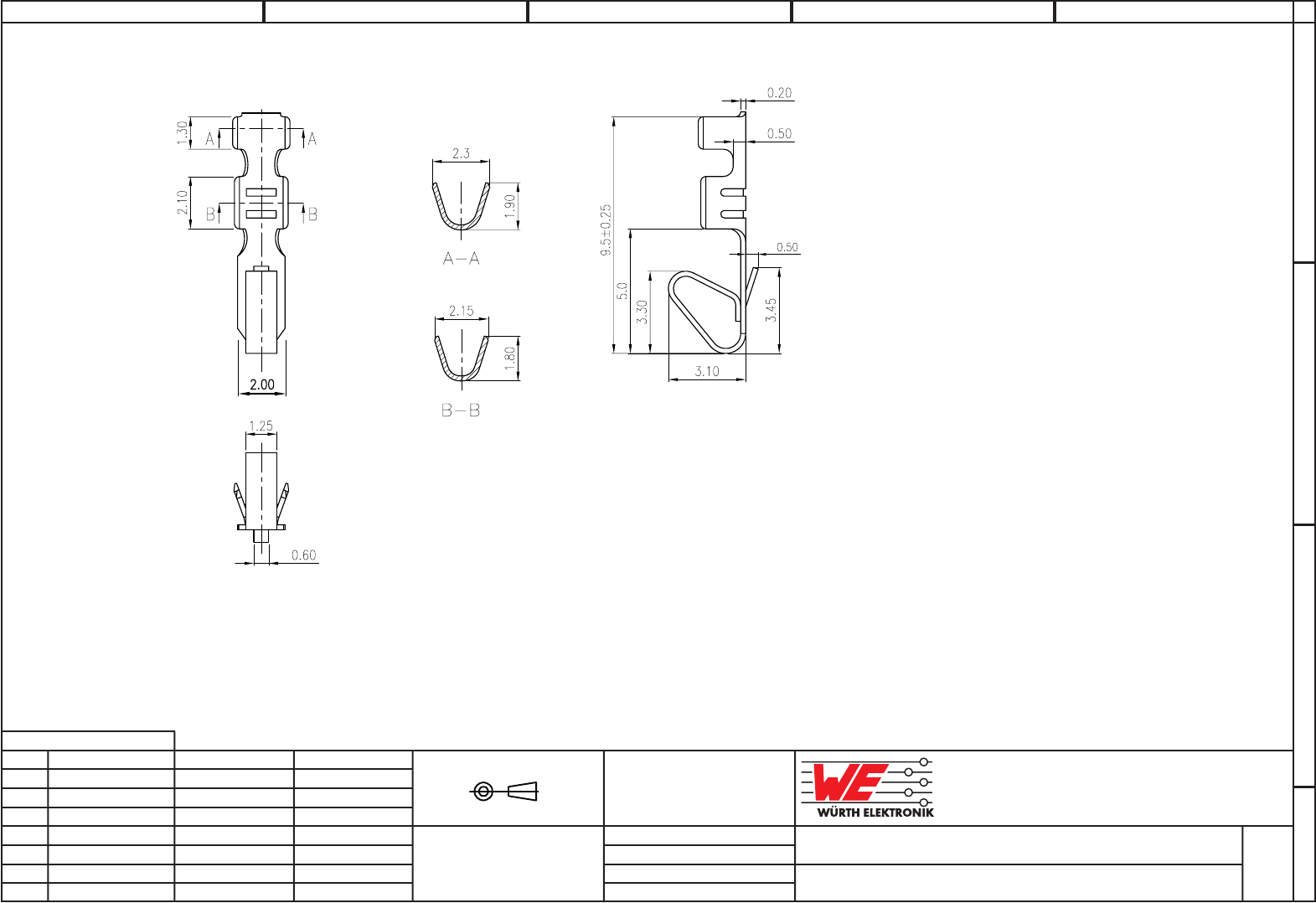

UNIT: MM DESCRIPTION: 2.54MM FEMALE CRIMP CONTACT
SCALE:
SHEET: 1/1 WERI PART NO: 619 001 137 22 DEC
DRAW: PEARL
PROJECTION: GENERAL TOLERANCE
.X =
+
/
-
0.2
.XX =
+
/
-
0.15
RoHS Compliant
TECHNICAL CHARACTERISTICS
MATERIAL
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 2.54MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 125°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 3A
WORKING VOLTAGE: 250V AC
CONTACT RESISTANCE: 20 mOHM MAX
WIRE DIMENSION
AWG: AWG 22 - 28
PACKAGING
BULK/LOOSE DELIVERY IN A BAG
EACH CONTACT SEPARATED FROM EACH OTHER
NOT ON A REEL
100PCS/PER BAG. MULTIPLE OF 100PCS ONLY
1PCS OF 61900113722DEC=1 CRIMP CONTACT
SO 1 BAG MEANS 100 PCS OF 61900113722DEC
