1 2 3 4 5

SIZE

REV DATE FILE BY

A 30-OCT-07 PDF EC

B 30-OCT-08 CHARACTERISTICS JP

C 12-OCT-09 STANDARD JP

APPROVAL: RJ

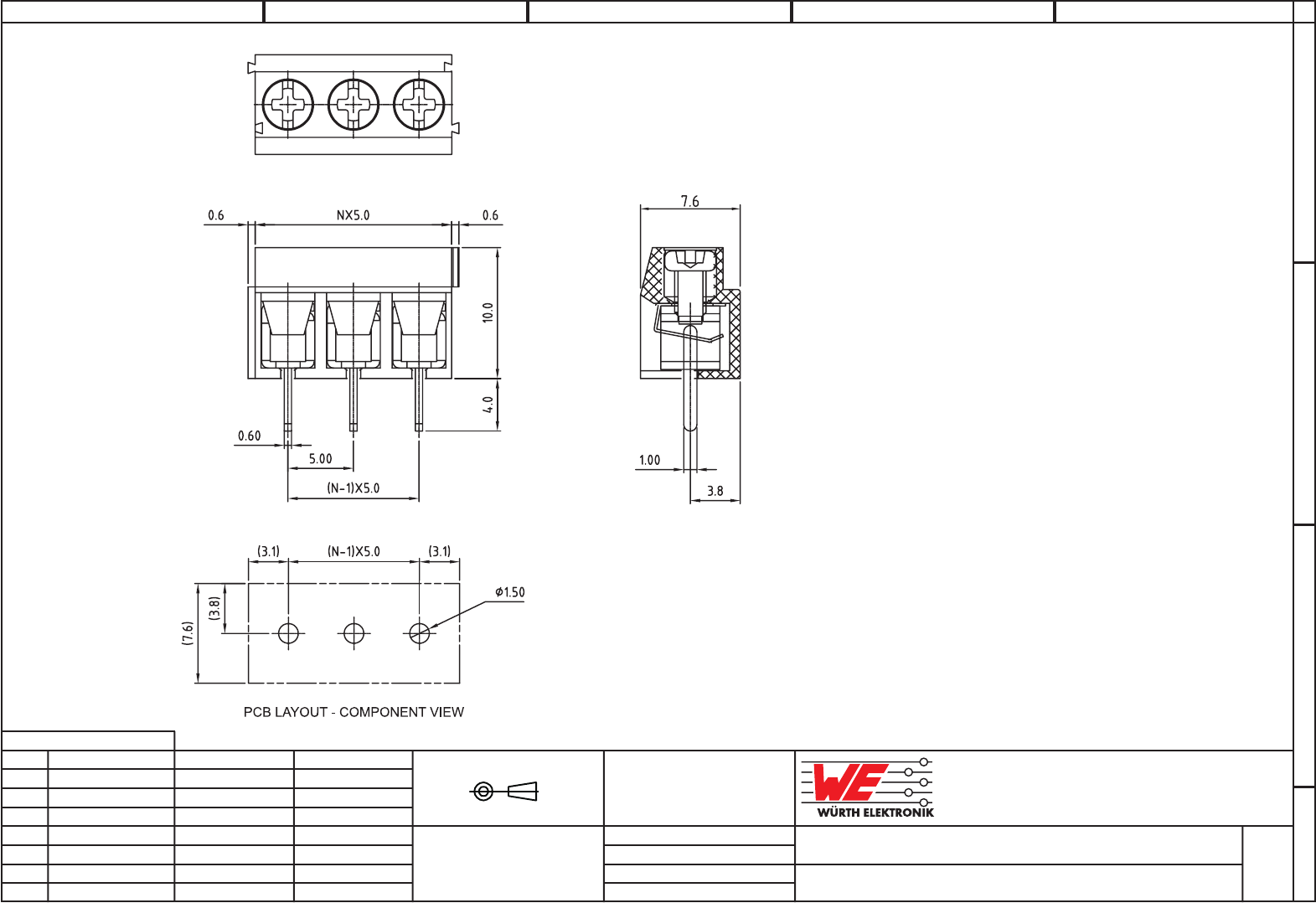

UNIT: MM DESCRIPTION: SERIE 111 - 5.0MM HORIZONTAL ENTRY MODULAR

WITH PRESSURE CLAMP - 2.0MM² WIRES WR-TBL

SCALE:

SHEET: 1/2 WERI PART NO: 691 111 710 0xx

DRAW: MARVIN

PROJECTION: GENERAL TOLERANCE

.X =

0.2

.XX =

0.15

RoHS Compliant

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PA 66

FLAMABILITY RATING: UL94-V0

COLOR: GREEN

METAL HOUSING: BRASS (CuZn)

TERMINAL SCREW: STEEL ZINC PLATING "+/-" SLOT TYPE

WIRE GUARD: STAINLESS STEEL

SURFACE OF SOLDER TAIL PLATING: TIN

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL UL

CURRENT RATING: 8A

WORKING VOLTAGE: 300VAC

WITHSTANDING VOLTAGE: 1.6KV

CONTACT RESISTANCE: 20 mOhm MAX

STANDARD

CERTIFIED E315414 / MODEL NUMBER 111

MECHANICAL

SOLID WIRE: 26-14 AWG / 0.13-2.0MM²

STRANDED WIRE: 26-14 AWG / 0.13-2.0MM²

TORQUE: 2.6Lb.In / 0.3Nm

WIRE RANGE: WIRE STRIPE LENGTH: 5-6MM

SCREW: M2.5

PITCH: 5.0MM

SOLDERING: WAVE PROCESS ONLY

PACKAGING: BOX

SERIE 111

06-SEP-09 PACKAGING JC
