Wireless Power Design Kit – Medium Power – 760308MP V1.0
Design Kit Manual
EUDC59-U-004 - Rev. 1.0

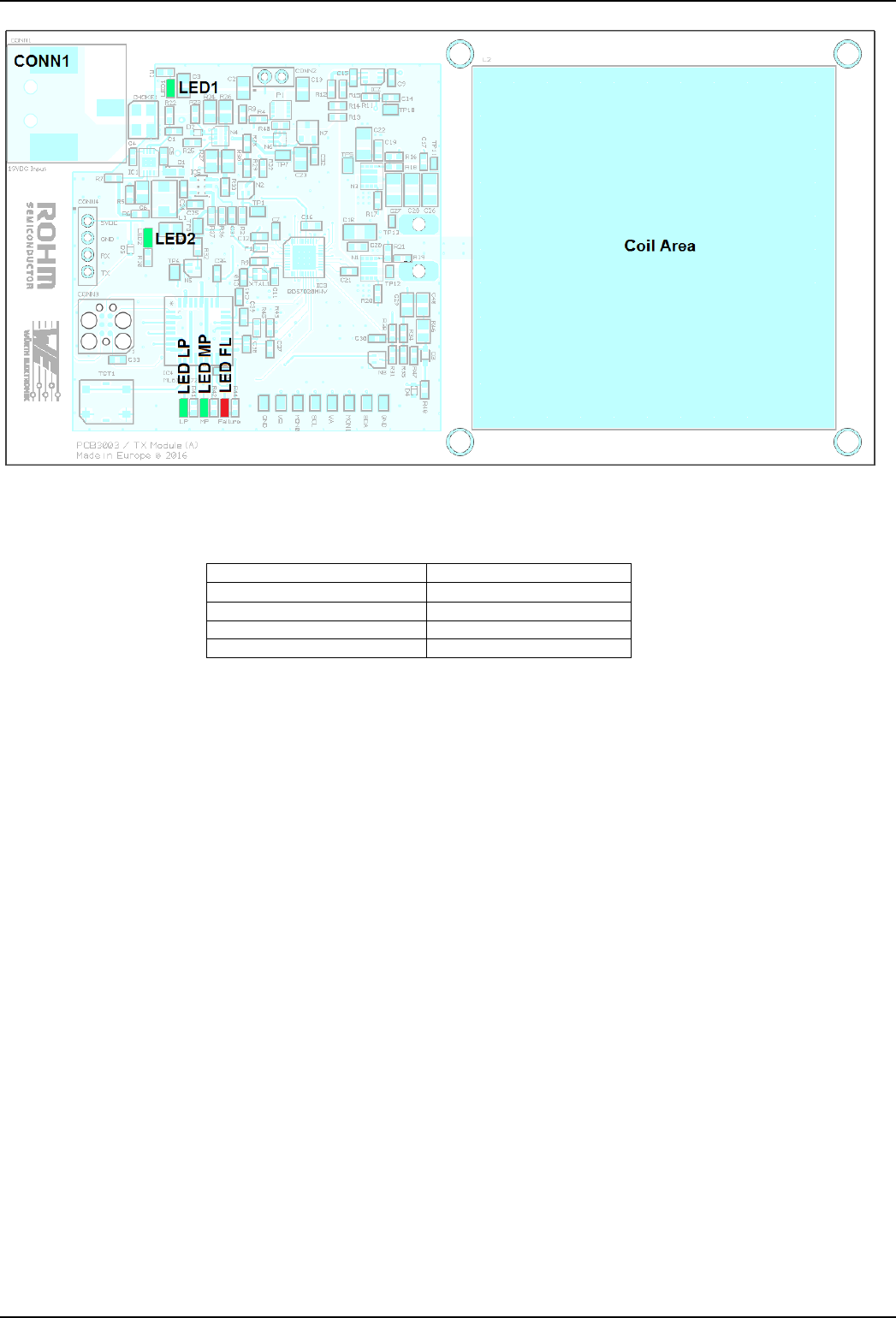

Figure 4: Transmitter Board with indication of inputs, outputs and status LEDs
Parameter
Specification
Input voltage
19V DC  5%
Maximum output AC power
15W
Qi compliance
1.2.2
Transmitter Type
MP-A7
Table 4: Transmitter Module specification
Basic electrical specifications of the Transmitter Module are summarized in Table 4. The AC output power of the transmitter is high
enough so that a receiver can deliver 15W maximum to its load.
