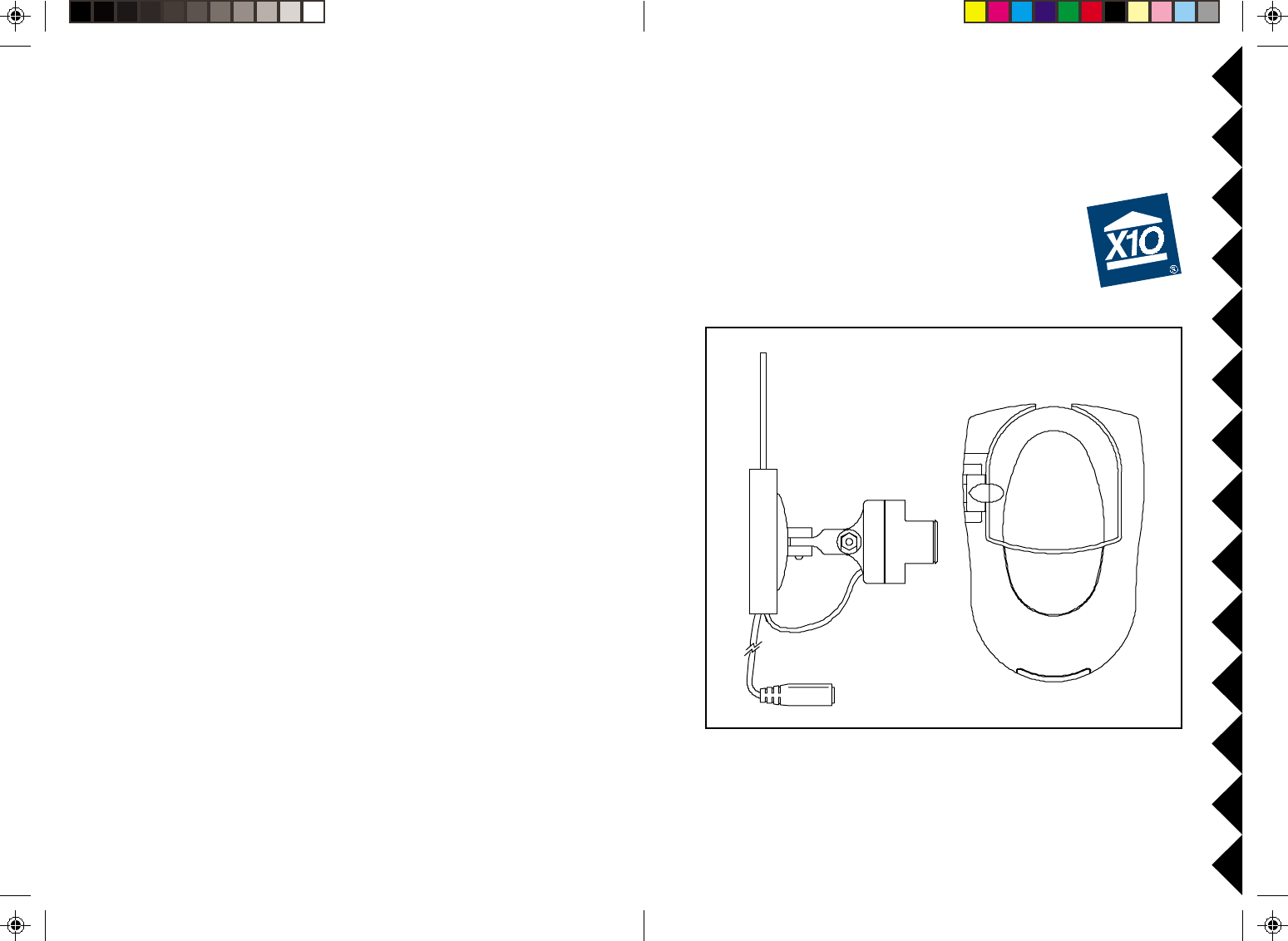

Indoor/Outdoor Color Camera with Built-in 2.
INTRODUCTION Your Wireless Camera Kit consists of a Color Video Camera with built-in 2..4 GHz Video Sender, and a Video Receiver unit which you connect to a TV anywhere in your home (up to 100 ft. away from the Camera). The Camera/Video Sender converts the video and audio signals from the camera into a radio signals and transmits them (even through walls) to the Video Receiver. The Video Receiver converts the signals back to video and audio signals which are fed through a cable to your TV's A/V input jacks.
11. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type or power supply to your home, consult your product dealer or local power company. For c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions.
CONTENTS CONTROLS AND AND CONNECTIONS CONNECTIONS ........................................ 7 CAMERA/VIDEO SENDER, AND VIDEO RECEIVER .................... 7 CAMERA/VIDEO SENDER .................................................. 8 VIDEO RECEIVER ............................................................. 9 CONNECTING UP ........................................................... 10 SETTING UP THE CAMERA /VIDEO SENDER ........................... 10 SETTING UP THE VIDEO RECEIVER ................
CONTROLS AND CONNECTIONS CAMERA/VIDEO SENDER VIDEO RECEIVER 2.4 GHz Video Antenna 2.4 GHz Video Antenna Set channel switch to match setting on Video Receiver. TV Output Connector Mounting plate ON-OFF Switch (on side) Power Supply Jack Cable adapter. 8 TV Channel Switch A/V Input Jacks (on bottom) 2.
CONNECTING UP SETTING UP THE CAMERA /VIDEO SENDER Referring to the diagram on the next page: 1. Attach the camera to a wall using the screws provided. 2.4 GHz Video Antenna Set channel switch to match setting on Video Receiver. 2. If you install the camera outdoors, make a small hole in your exterior wall and pass the low voltage power jack through it. 3. Plug the power supply jack into the socket on the adapter cable from the camera. Use the smaller of the two power supplies. 4.
HOOKING UP THE VIDEO RECEIVER IF YOUR TV IS A/V DEVICE 1. Connect a set of Audio/Video cables to the A/V OUT jacks of your Video Receiver. Connect the other end to your TV. 2. Plug the Video Receiver's Power Supply (the larger of the two power supplies) into a 120 volt wall outlet and plug its jack into the Video Receiver.
FINE TUNING YOUR SYSTEM The Wireless Video Sender usually works best with the flat faces of the antennas on the Sender and Receiver unit facing each other (i.e. in “Line of sight” - see diagram below). Sometimes, however, reflections and other effects in the home may affect the signal so that some adjustment of either the Sender or Receiver antenna may be necessary to get the best the signal. WARRANTY 12 MONTH LIMITED WARRANTY X10 (USA) INC.
X10 (USA) Inc. 3824 North 5th St., Suite C, North Las Vegas, NV 89030 Web Site: www.x10.
