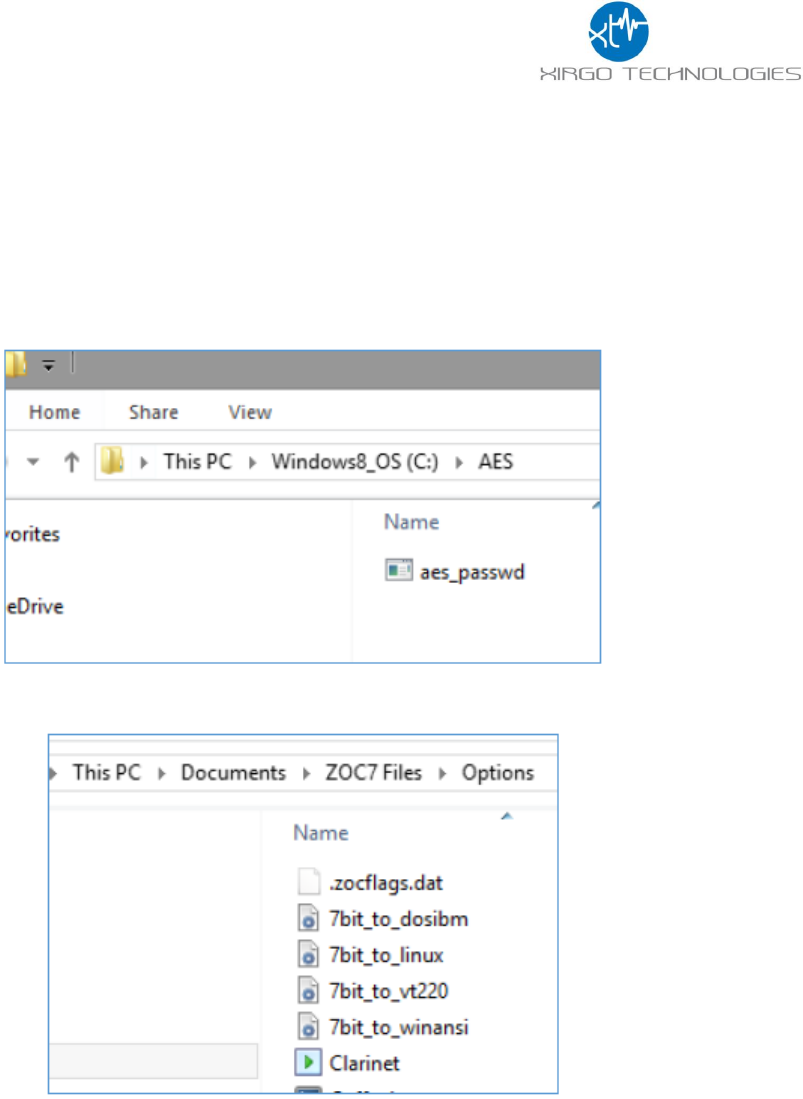

4. Create the following folder directory:
a. C:\AES
i. If a different directory path is needed (root directory is not C: for instance) the Clarinet.zrx file
will need to be modified in a text editor, such as notepad, to navigate to a different path for the
.exe file to execute.
b. Store the aes_passwd.exe file here
5. Navigate to the ZOC directory and store the Clarinet.zrx file in the ‘Options’ directory:
6. Now, in ZOC if you are already connected to the device over the COM port, you can click the login in button
that you just created, ‘4970 Login’ as noted here.
a. You may have to press the ‘Enter’ key a few times to wake the serial port before using the login in
button.
