Chapter 2 Features 11
Windows Security button
You can use the Windows Security button to log on to or lock your Tablet PC. Pressing the
Windows Security button is equivalent to pressing Ctrl+Alt+Del on a keyboard.
Fingerprint reader
Using the fingerprint reader, you can log on to your Tablet PC by scanning your fingerprint
instead of entering a password. This presents an added level of security for your tablet.
You can use the OmniPass application to associate your fingerprint with passwords for Web
pages and other applications. You can also use the fingerprint reader as a navigation device.
Move your finger on the fingerprint reader to move the pointer on the screen.
Note: The scroll function is disabled while scanning a fingerprint.
For information about setting up and using the fingerprint reader, see “Capturing a
fingerprint” on page 38.
Display
The LE1700 includes a 12.1-inch SXGA+ display with the following features:
• A highly readable LCD (liquid crystal display).
• Resolution up to 1400 × 1050 pixels.
• A protective layer that offers a firm writing surface and minimizes glare.
• A digitizer panel that enables handwritten entry with the tablet pen.

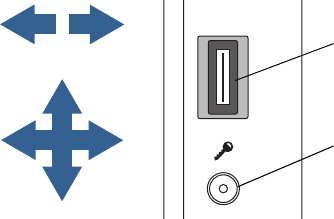

Scan fingerprint
Navigate
Windows Security button
Fingerprint reader
