Multi 3430 Operation
27
ba75865e11 02/2011

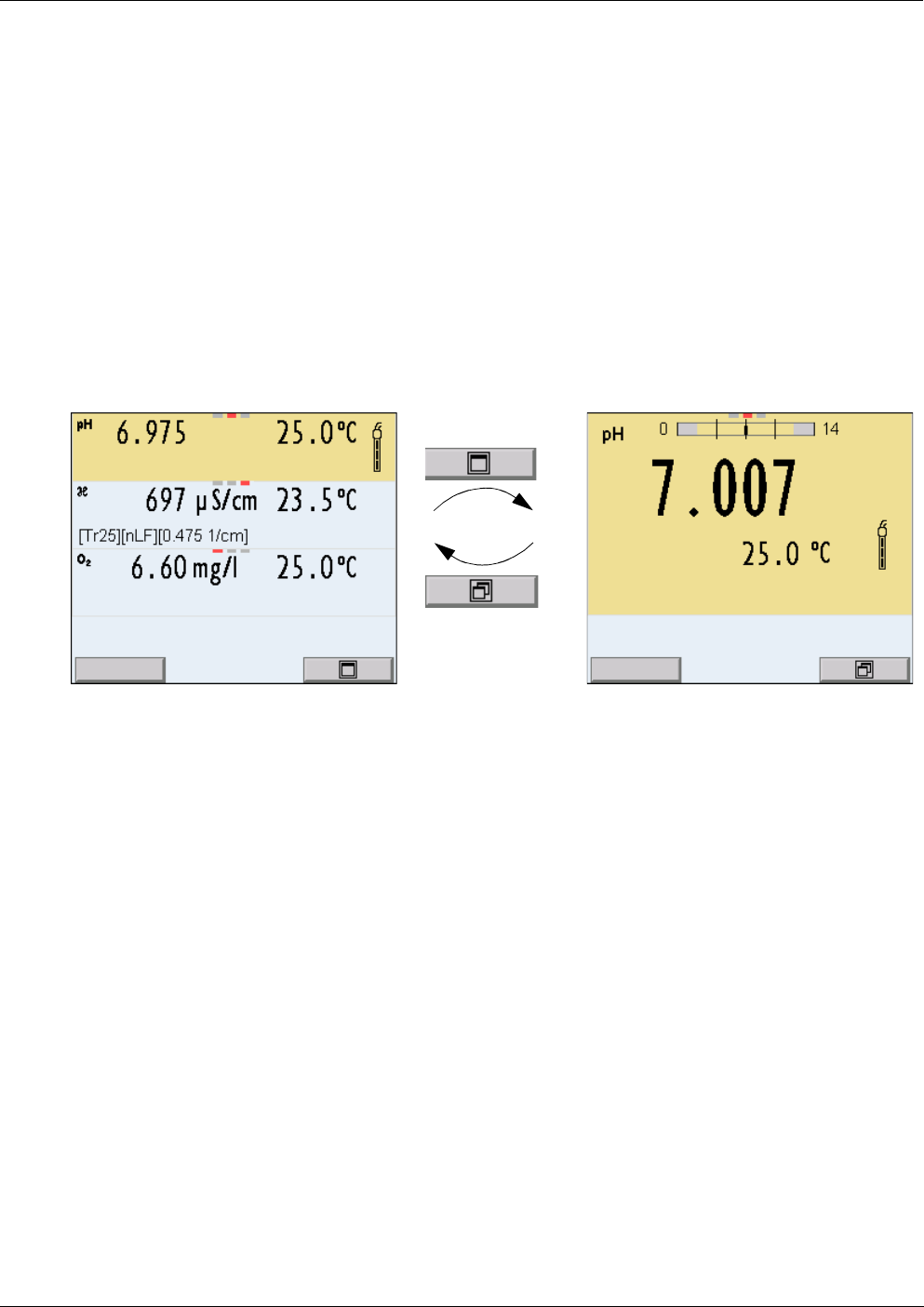

4.3.2 Display of several sensors in measuring mode
The measured values of the connected sensors can be displayed in the
following ways:
z Clear display of all connected sensors
z Detailed display of one sensor
(e.g. incl. CMC feature with pH sensors)
With the softkey you can very easily switch between the two display
types. The suitable softkey is displayed, depending on the operating
situation.
30.09.2009 08:00Info
30.09.2009 08:00Info
