Multi 3430 Operation
63
ba75865e11 02/2011
4.8 ORP voltage
4.8.1 General information
You can measure the following parameters:
z ORP [mV]
Note
The sensor connection and the USB-B (device) interface are galvani-
cally isolated. This facilitates interference-free measurements also in
the following cases:
z Measurement in grounded test samples
z Measurement with several sensors connected to one Multi 3430 in
one test sample
Preparatory activities Perform the following preparatory activities when you want to measure:

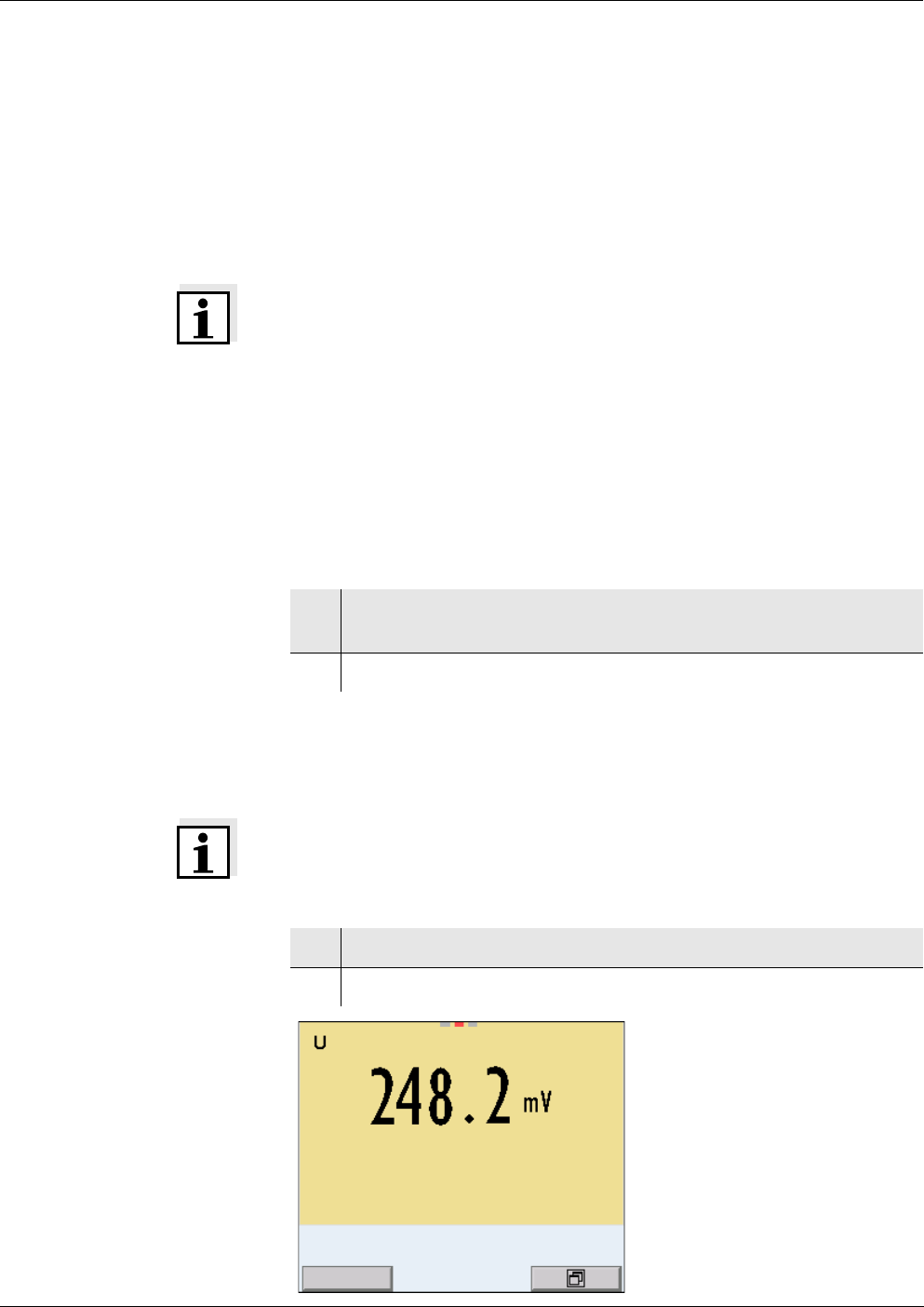

4.8.2 Measuring the ORP
Note
IDS ORP sensors are not calibrated. However, you can check IDS
ORP sensors using a test solution.
1 Connect the IDS ORP sensor to the meter.
The ORP measuring window is displayed.
2 Check the meter with the IDS ORP sensor.
1 Perform the preparatory activities according to section 4.7.1.
2 Immerse the IDS ORP sensor in the test sample.
30.09.2009 08:00
Info
