4.5.2 Measuring reagent tests with AutoSelector

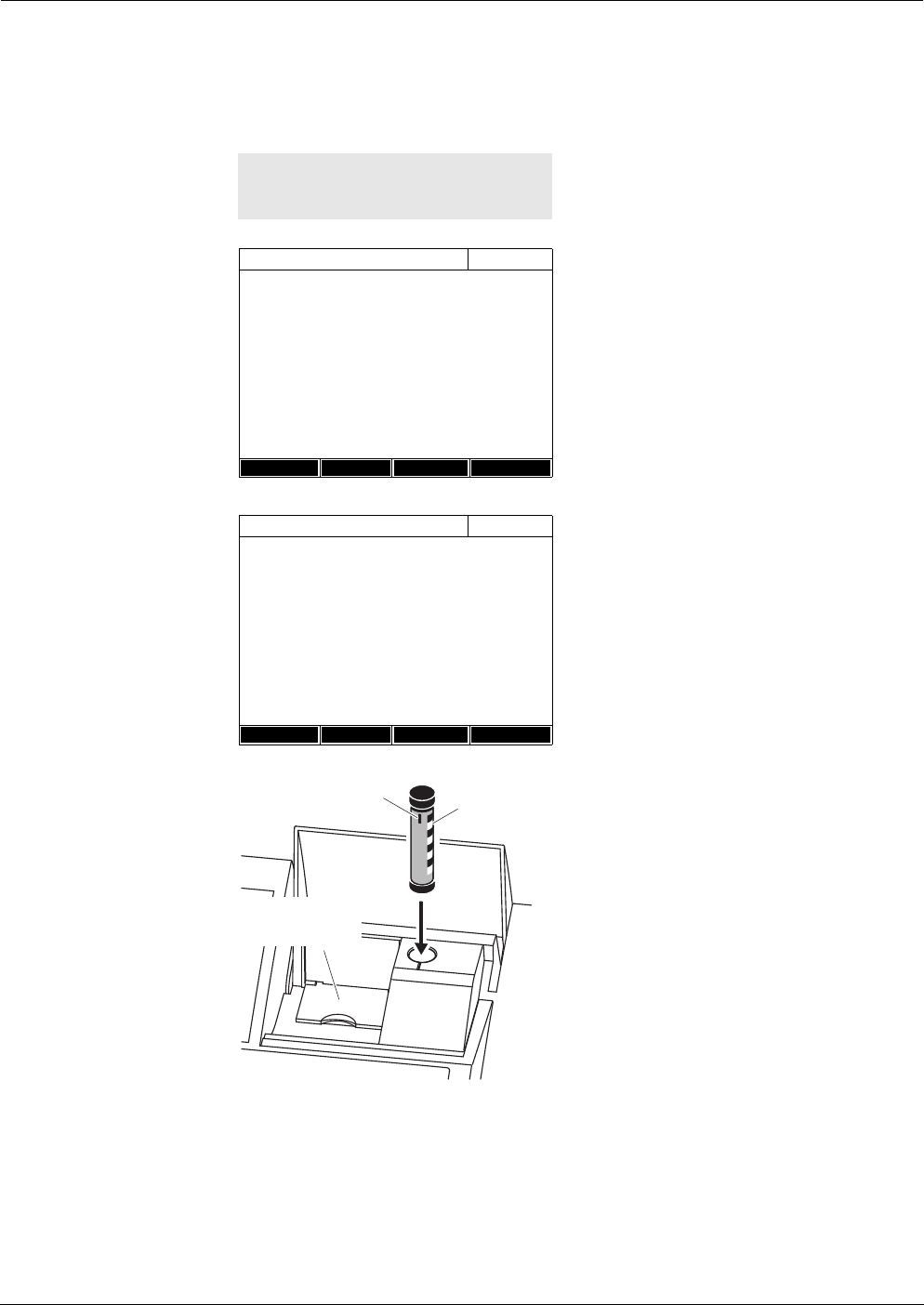

The method is selected by
inserting the AutoSelector.
The photometer is ready to
measure.
1 Open the cell shaft cover.
2 Insert the AutoSelector in the
round cell shaft so it touches the
bottom. When doing so, align the
line mark with the notch at the
front of the round cell shaft.
– The photometer selects the
correct method with the aid of
the barcode.
<HOME>
Concentration
Concentration
04/16/07 9:52
Please select method for measuring
or insert a barcoded cell
or insert AutoSelector.
Setup
Method list Last method New Method
Concentration
04/16/07 9:52
To start measurement,
insert cell or press <Start/Enter>
38: 14761
Fe
10 mm
0.05 - 5.00 mg/l
Setup
Method list
Citation form Unit
Line mark
Barcode
inner
turn-up lid
