1 Overview
1.1 Overview of the instrument
Front of the
instrument
Socket field on the
rear panel
Note
All connections comply with SELV.
1Display
2 Keypad
3 Shaft for rectangular cells
4 Turn-up lid
5 Shaft for round cells
6 Cell shaft cover

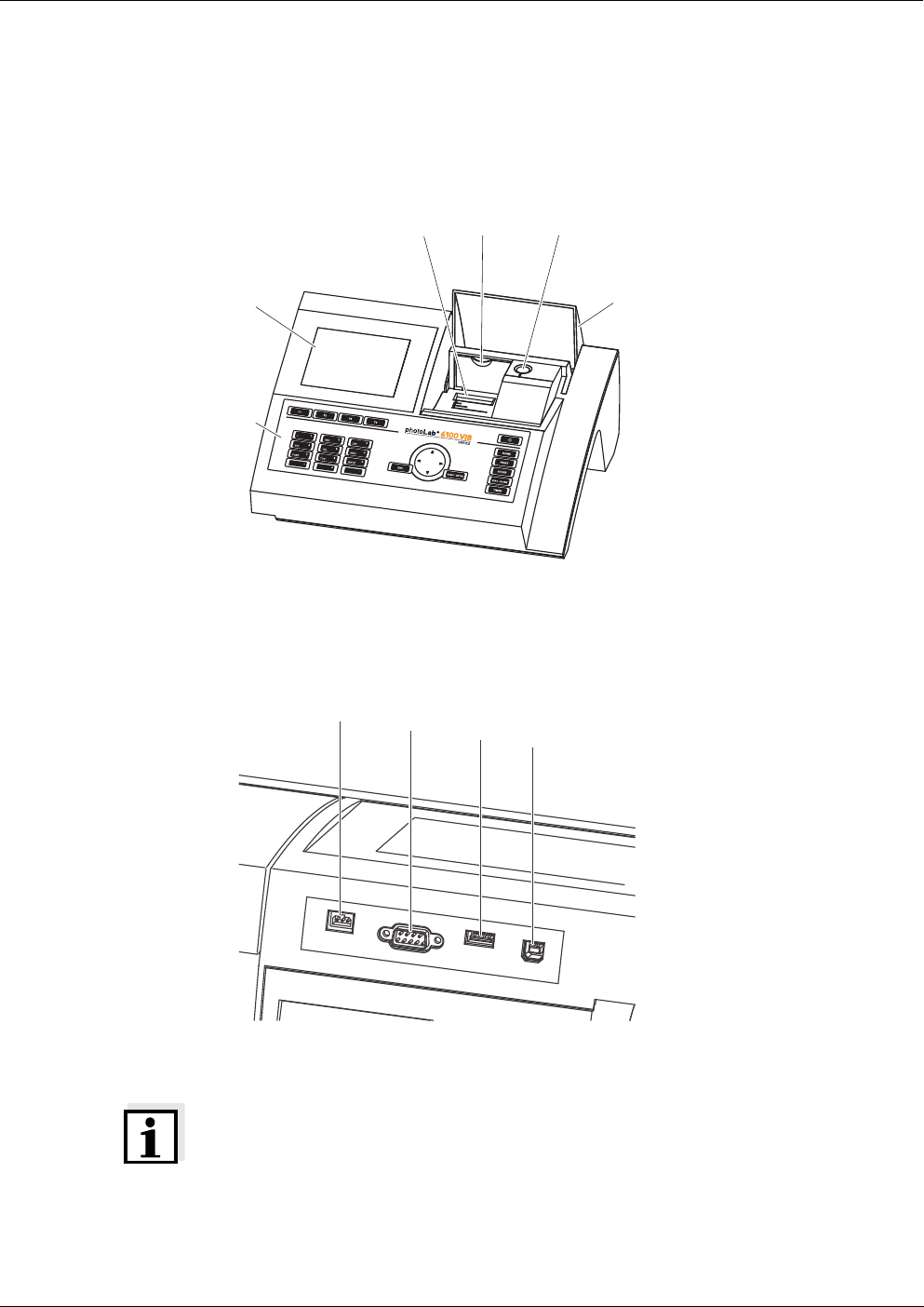

Fig. 1-1 Front of the instrument with operating elements
2
1
35
6
4
7 Connection for power pack
8 RS232 connection
9 USB-A connection
10 USB-B connection
Fig. 1-2 Rear panel with socket field
7
8
9
10
