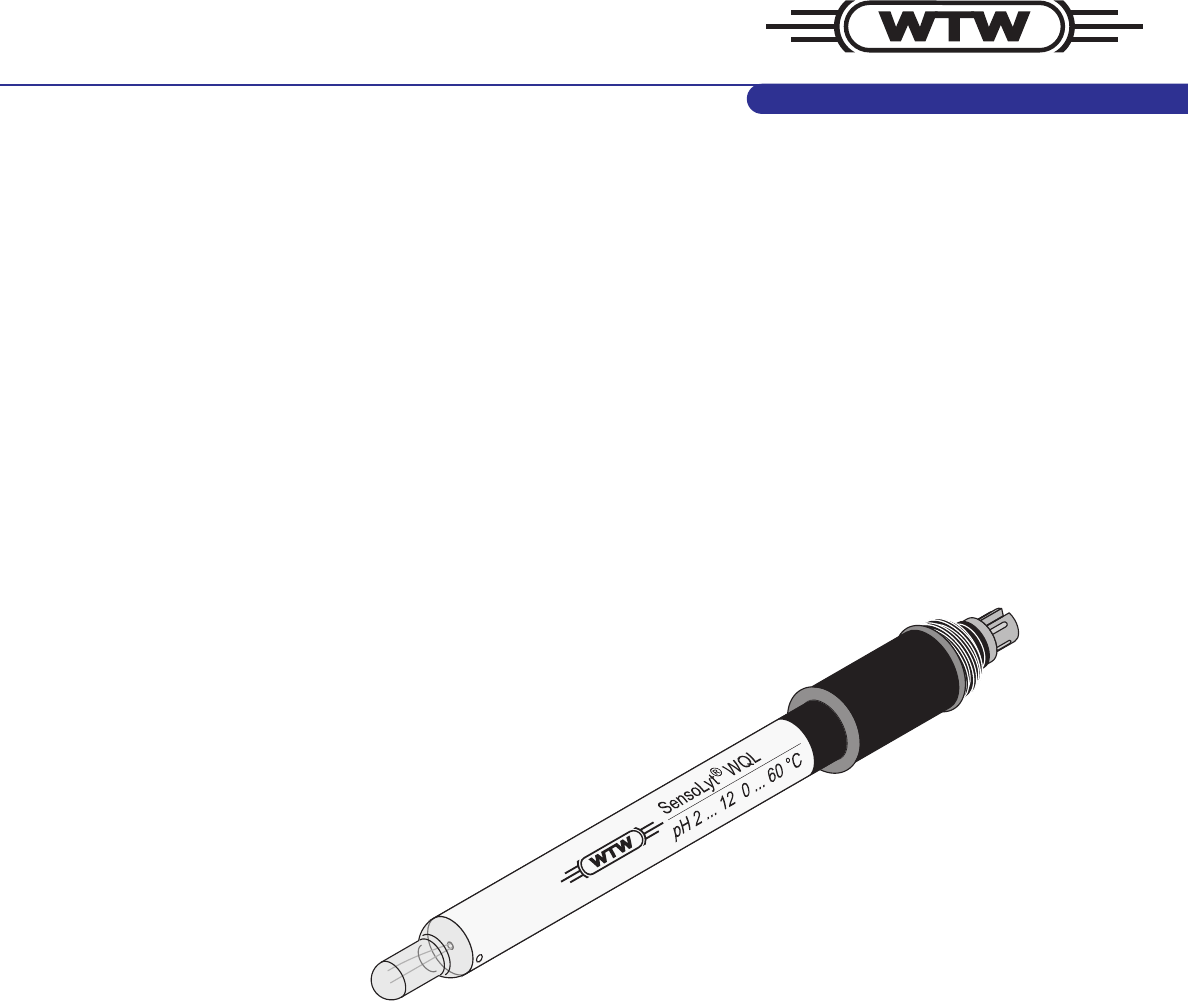

SensoLyt® WQL pH electrode with polymer electrolyte Operating manual ba75823e01 10/2009 7
SensoLyt® WQL Note The latest version of the present operating manual can be found on the Internet under www.WTW.com. Copyright © Weilheim 2009, WTW GmbH Reprinting - even as excerpts - is only allowed with the explicit written authorization of WTW GmbH, Weilheim. Printed in Germany.
SensoLyt® WQL Technical data Technical data General data Measurement and application characteristics Reference electrolyte Polymer electrolyte, AgCl-free Junction Single hole junction Shunt element Ag/AgCl NTC Yes pH measuring range 2.000 ... 12.000 Allowed temperature range 0 ... 60 °C (32 ...
SensoLyt® WQL Commissioning, measuring, calibration Commissioning, measuring, calibration Commissioning Prepare the combination electrode for measuring as follows: z Remove the watering cap from the electrode tip. Possible salt deposits in the area of the watering cap do not affect the measuring characteristics and can easily be removed with deionized water. Note Please keep the watering cap. It is required for the electrode to be stored. Always keep the watering cap clean.
SensoLyt® WQL Aging Storage During short measuring breaks Immerse the electrode in reference electrolyte (KCl 3 mol/L, Ag+ free). Prior to the next measurement, shortly rinse the electrode with the test sample or deionized water. Overnight or longer For prolonged storage we recommend to keep the electrode installed in the logger. Put the clean electrode in the watering cap that is filled with reference electrolyte (KCl 3 mol/L, Ag+ free).
SensoLyt® WQL Maintenance and cleaning Maintenance and cleaning Cleaning Remove water-soluble contamination by rinsing with deionized water.
