Gate Installation And Assembly Guide

YARDGARD SELECT

™

- FENCE FRAMEWORK INSTALLATION INSTRUCTIONS

AUTO CLOSE GATE

AUTO CLOSE GATE (1000-034-737) QTY.

N 4’ Gate 1

Gate Latch 1

Self-Closing Gate Hinges 1

PVC Post Protector 1

Self-Tapping Screws 5

OPTIONAL (AVAILABLE ON HOMEDEPOT.COM) QTY.

Decorative fence

medallion*

Decorative fence

medallion*

TOOLS AND MATERIALS

• Tape Measure

• AdjustableWrench

• CordlessDrill

• 1/4˝NutDriver

STAGE 3: PARTS LIST

STAGE 3: GATE INSTALLATION

*Decorativefencemedallionsoldseparatelyathomedepot.com

YARDGARD SELECT

™

Installation Instructions

Scantoview

installationvideo

PAGE 1

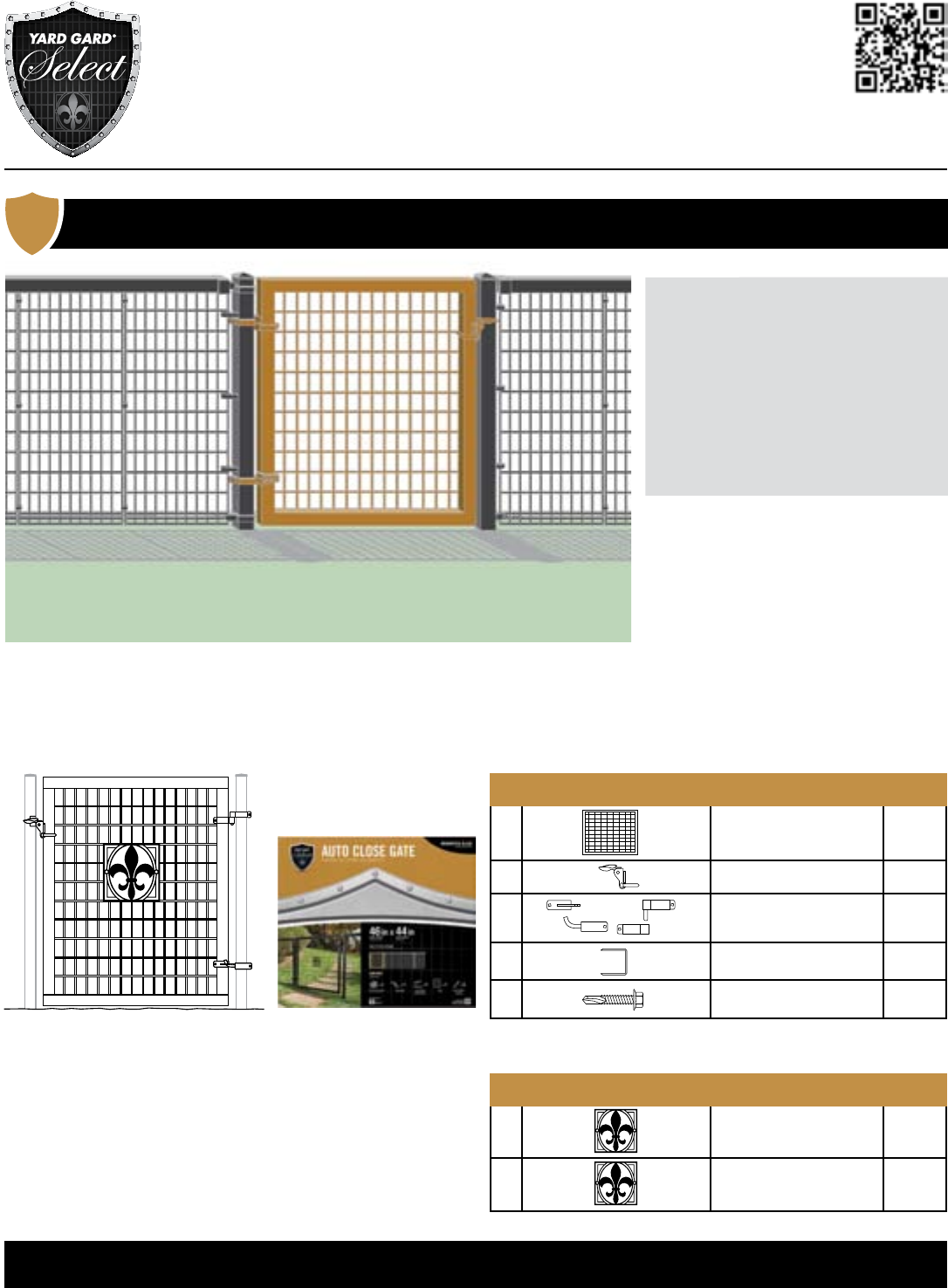

YARDGARD SELECT™ Installation Instructions 3 Scan to view installation video STAGE 3: GATE INSTALLATION TOOLS AND MATERIALS • • • • Tape Measure Adjustable Wrench Cordless Drill 1/4˝ Nut Driver STAGE 3: PARTS LIST AUTO CLOSE GATE AUTO CLOSE GATE (1000-034-737) QTY. N 4’ Gate 1 O Gate Latch 1 P Self-Closing Gate Hinges 1 Q PVC Post Protector 1 Self-Tapping Screws 5 * Decorative fence medallion sold separately at homedepot.com OPTIONAL (AVAILABLE ON HOMEDEPOT.
PAGE 2
3 STAGE 3: GATE INSTALLATION Instrucciones de instalación del YARDGARD SELECT™ • Determine which post will be the latch post and which will be the hinge post. • Loosely install top post hinge with pin pointing up approximately 8˝ from the top of the hinge post (Fig. 19). Escanee para ver el video de instalación • Loosely install self-closing post hinge with pin pointing up approximately 10˝ from the bottom of the hinge post (Fig. 19).
PAGE 3
ETAPA 3: INSTALACIÓN DEL PORTÓN • Determine qué poste será el poste del pestillo y qué poste será el poste de las bisagras. • Instale la bisagra del poste superior sin apretarla, con el pasador orientado hacia arriba, aproximadamente a 8 pulgadas de la parte superior del poste de las bisagras (Fig. 19). • Instale la bisagra de poste de cierre automático sin apretarla, con el pasador orientado hacia arriba, aproximadamente a 10 pulgadas de la parte inferior del poste de las bisagras (Fig. 19).
